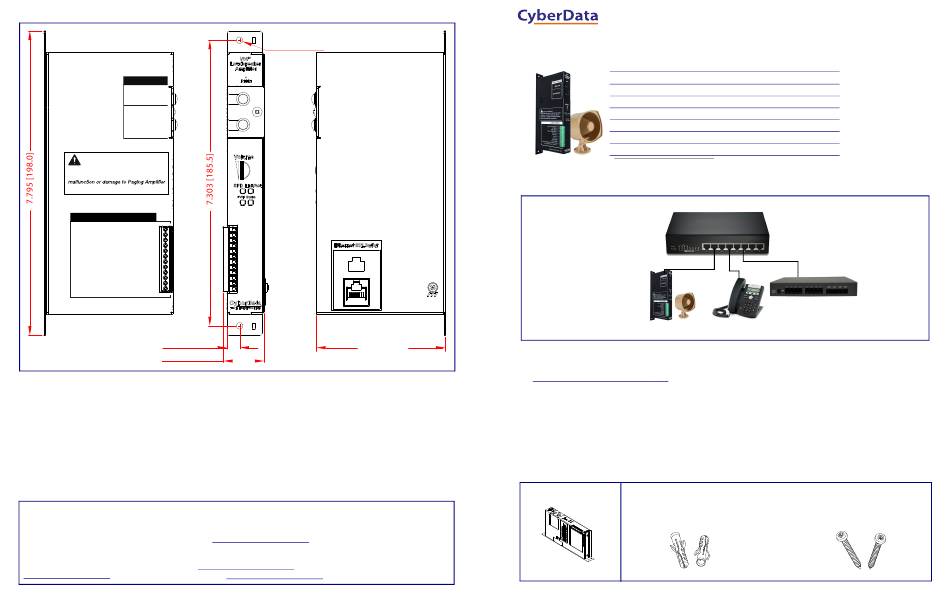

CyberData 011403 Installation Quick Reference

Dimensions
CLASS II WIRING
3
MIC IN
2
1
5
4
STROBE
3
2
1
SAFETY WARNING!
Please read the owner's manual for proper
installation. Incorrect wiring can lead to
and/or other attached components.
CLASS II WIRING
Mono(+)/Left Spkr (+) - 12
Left Spkr (-) - 11
Right Spkr (+) - 10
Mono(-)/Right Spkr (-) - 9
Line-Out (+) - 8
Line-Out (-) - 7
Line-In (-) - 6
Line-In (+) - 5
Relay COM - 4
Relay NO/NC - 3
Door Sense/Button Common (GND) - 2
Door Sense/Button Contact (+) - 1
www.cyberdata.net
0.326 [8.3]
1.042 [26.5]
Contacting CyberData
Corporate Headquarters
Sales: (831) 373-2601 ext. 334
CyberData Corporation
Support: 831-373-2601 ext. 333
3 Justin Court
Support Website:
Monterey, CA 93940, USA
RMA Department: (831) 373-2601 ext. 136
RMA Email: RMA@CyberData.net
Phone: 831-373-2601
Fax: 831-373-4193
RMA Status:
http://www.cyberdata.net/
Warranty Information:
© 2016, CyberData Corporation, ALL RIGHTS RESERVED 931271C
ø0.172 [ø4.4]
(2 Places)
3.295 [83.7]
Dimensions are in Inches [Millimeter]
http://support.cyberdata.net/
http://support.cyberdata.net/
http://support.cyberdata.net/
The IP Endpoint Company
Typical System Installation
Getting Started
• Download the Operations Guide PDF file from the Documents tab at the following webpage:
http://www.cyberdata.net/voip/011403/
• Create a plan for the locations of your paging amplifiers.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: The Singlewire InformaCast Paging Amplifier enclosure is not rated for any AC voltages!
Parts
(1) Assembly
Quick Reference
Quick Reference
Installation Quick Reference

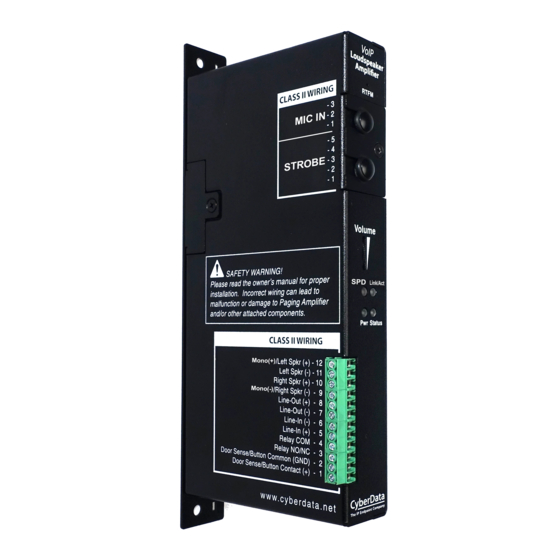

Singlewire InformaCast Paging Amplifier
011403
Parameter Factory Default Setting
IP Addressing DHCP
a
IP Address 10.10.10.10
Web Access Username admin
Web Access Password admin
a
Subnet Mask 255.0.0.0
a
Default Gateway 10.0.0.1
a. Default if there is not a DHCP server present.
Compliant Non-PoE Ethernet Switch
InformaCast Server
Singlewire InformaCast VoIP Phone
Paging Amplifier
(1) Screw Accessory Kit
(2) Plastic Ribbed Anchors
931271C © 2016, CyberData Corporation, ALL RIGHTS RESERVED
*See the Operations Guide for more
installation options.
(2) #6x1.25" Pan Head
Phillips Sheet Metal Screw
