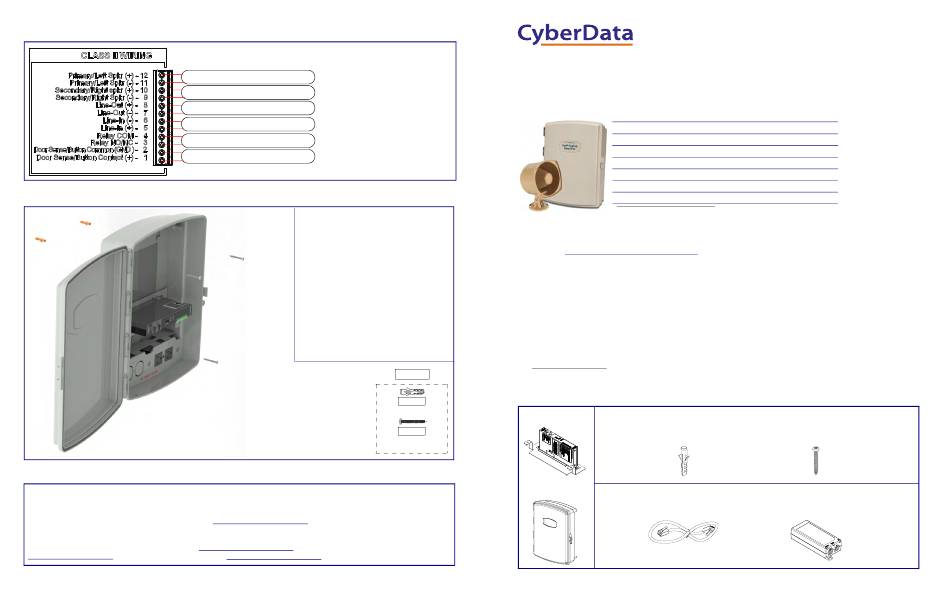

CyberData 011404 Installation Quick Reference

Connections
Primary Speaker Connection
Secondary Speaker Connection
Mounting the Enclosure
Contacting CyberData
Corporate Headquarters
Sales: (831) 373-2601 ext. 334
CyberData Corporation
Support: 831-373-2601 ext. 333
3 Justin Court
Support Website:
Monterey, CA 93940, USA
RMA Department: (831) 373-2601 ext. 136
Phone: 831-373-2601 RMA Email: RMA@CyberData.net
Fax: 831-373-4193 RMA Status: http://support.cyberdata.net/
http://www.cyberdata.net/
Warranty Information:
© 2016, CyberData Corporation, ALL RIGHTS RESERVED
Line-Out Connection
Line-In Connection
Relay Connection
Sensor Connection
To mount the enclosure:
1. Prepare holes for the screws.
2. Plug in the power adapter and use the
Power (PWR) LED to verify that the
power is on.
3. Plug the ethernet cable into the device.
The Link/Activity (Link/Act.) LED
verifies the network connection.
4. For wall mounting, use the three
#6 x 1-1/4-inch Pan Head Phillip screws
to secure the speaker.
#6 PLASTIC ANCHOR (3x)
http://support.cyberdata.net/
http://support.cyberdata.net/
931238A Quick Reference
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299
The IP Endpoint Company
Getting Started
• Download the VoIP Loudspeaker Amplifier Operations Guide PDF file from the Documents tab at the following
webpage: http://www.cyberdata.net/voip/011404/
• Create a plan for the locations of your paging amplifiers.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the
installation instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: The VoIP Loudspeaker Amplifier enclosure is not rated for any AC voltages!
Wiring the 125V AC Plug
The green wire with the yellow stripe is a ground connection for electrostatic discharge (ESD) protection,
and should not be removed.
071057A
To wire the 125V AC plug, consult a licensed electrician and the local building codes in your area.
Parts
531032
(1) Assembly
151014
#6x1 1/4" PAN HEAD
PHILLIP SCREW (3x)
(1) Enclosure
Quick Reference
Installation Quick Reference
VoIP Loudspeaker Amplifier
(AC-Powered)
SIP Compliant
011404
Parameter Factory Default Setting
IP Addressing DHCP
a
IP Address 10.10.10.10
Web Access Username admin
Web Access Password admin
a
Subnet Mask 255.0.0.0
a
Default Gateway 10.0.0.1
a. Default if there is not a DHCP server present.
(1) Wall Mounting Kit
(3) #6 Plastic Anchors (3) #6 x 1-1/4-inch Pan Head Phillip Screws
Additional Parts
(1) CAT 5e/CAT6 cable (1) PoE Power Injector
931238A © 2016, CyberData Corporation, ALL RIGHTS RESERVED
