Web Page Item
Beep on Init
Beep on Page
Disable HTTPS (NOT recommended)
Two Speakers Connected
RGB Strobe
InformaCast Settings
InformaCast Address
Singlewire Broadcast Strobe Settings
Priority
Scene
ADA Compliant
Slow Fade
Fast Fade
Slow Blink
Fast Blink
Color
Brightness
Red
Green
Blue
Operations Guide

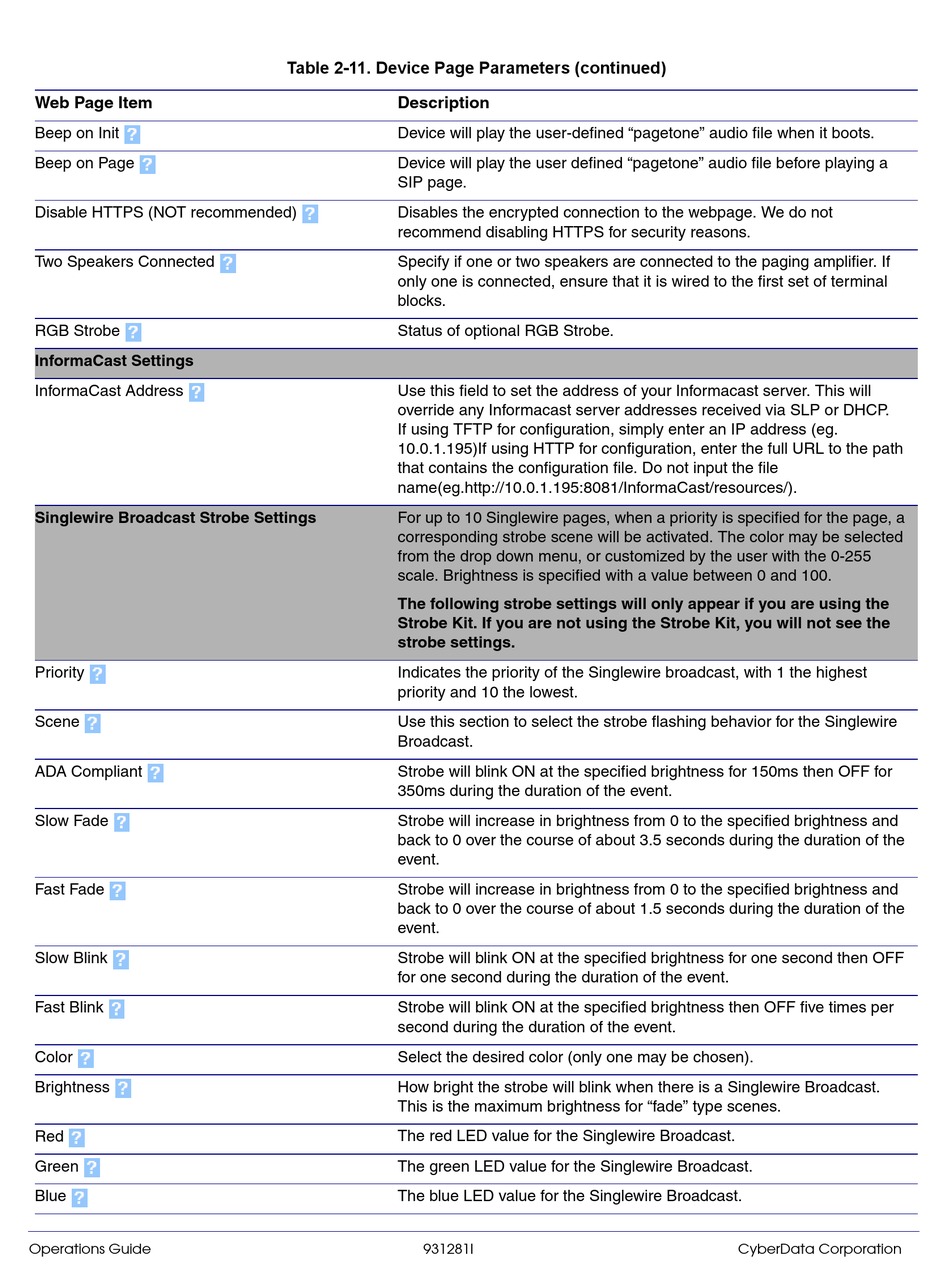

Table 2-11. Device Page Parameters (continued)
Description
Device will play the user-defined "pagetone" audio file when it boots.
Device will play the user defined "pagetone" audio file before playing a
SIP page.
Disables the encrypted connection to the webpage. We do not
recommend disabling HTTPS for security reasons.
Specify if one or two speakers are connected to the paging amplifier. If
only one is connected, ensure that it is wired to the first set of terminal
blocks.
Status of optional RGB Strobe.
Use this field to set the address of your Informacast server. This will
override any Informacast server addresses received via SLP or DHCP. 
If using TFTP for configuration, simply enter an IP address (eg.
10.0.1.195)If using HTTP for configuration, enter the full URL to the path
that contains the configuration file. Do not input the file
name(eg.http://10.0.1.195:8081/InformaCast/resources/).
For up to 10 Singlewire pages, when a priority is specified for the page, a
corresponding strobe scene will be activated. The color may be selected
from the drop down menu, or customized by the user with the 0-255
scale. Brightness is specified with a value between 0 and 100.
The following strobe settings will only appear if you are using the
Strobe Kit. If you are not using the Strobe Kit, you will not see the
strobe settings.
Indicates the priority of the Singlewire broadcast, with 1 the highest
priority and 10 the lowest.
Use this section to select the strobe flashing behavior for the Singlewire
Broadcast.
Strobe will blink ON at the specified brightness for 150ms then OFF for
350ms during the duration of the event.
Strobe will increase in brightness from 0 to the specified brightness and
back to 0 over the course of about 3.5 seconds during the duration of the
event.
Strobe will increase in brightness from 0 to the specified brightness and
back to 0 over the course of about 1.5 seconds during the duration of the
event.
Strobe will blink ON at the specified brightness for one second then OFF
for one second during the duration of the event.
Strobe will blink ON at the specified brightness then OFF five times per
second during the duration of the event.
Select the desired color (only one may be chosen).
How bright the strobe will blink when there is a Singlewire Broadcast.
This is the maximum brightness for "fade" type scenes.
The red LED value for the Singlewire Broadcast.
The green LED value for the Singlewire Broadcast.
The blue LED value for the Singlewire Broadcast.
