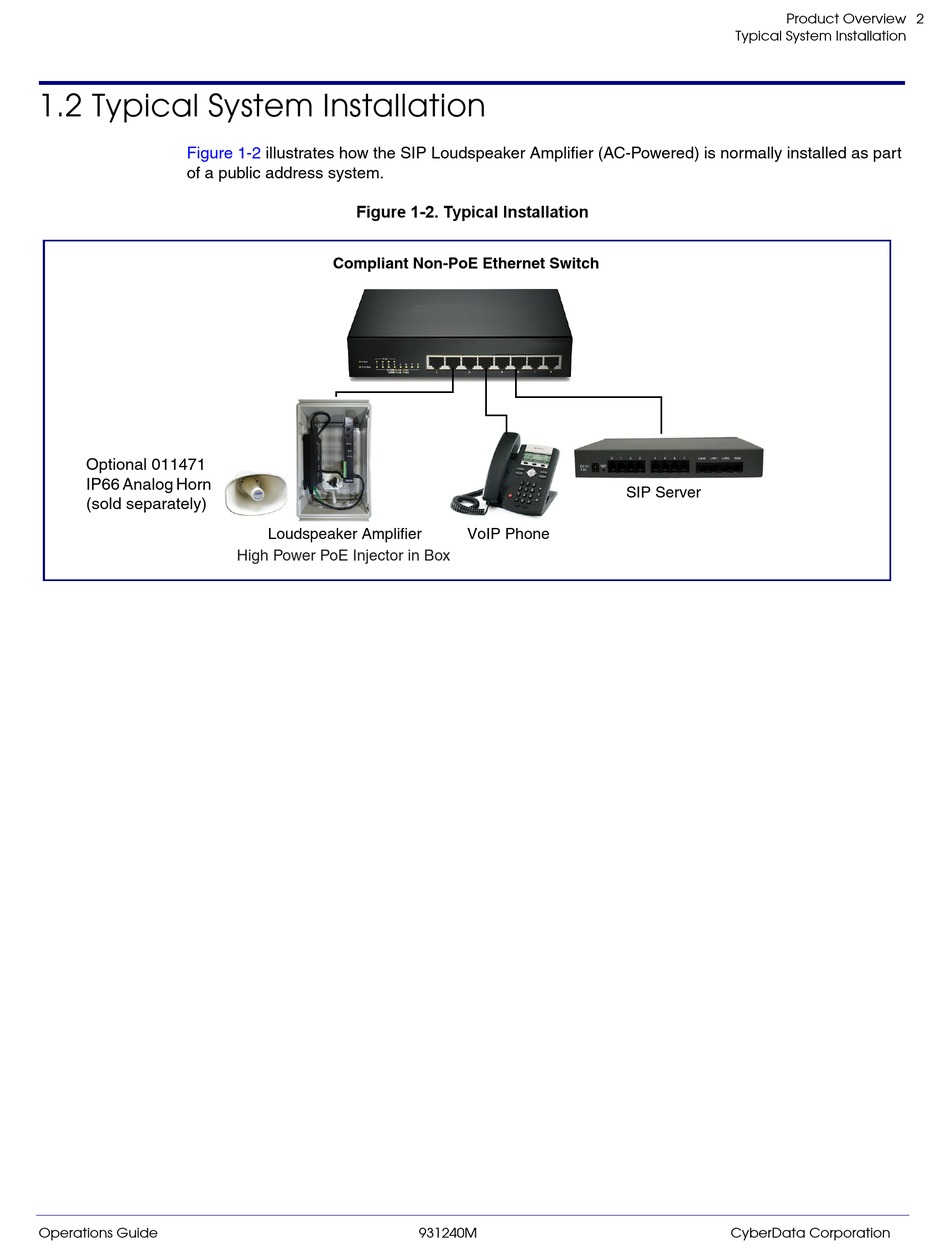

1.2 Typical System Installation
Figure 1-2
of a public address system.
Optional 011471
IP66 Analog Horn
(sold separately)
Operations Guide
illustrates how the SIP Loudspeaker Amplifier (AC-Powered) is normally installed as part
Figure 1-2. Typical Installation
Compliant Non-PoE Ethernet Switch
Loudspeaker Amplifier
High Power PoE Injector in Box
VoIP Phone
931240M
Product Overview
Typical System Installation
SIP Server
CyberData Corporation
2
