2.2.5 Installing the Universal Receptacle

Install the universal receptacle as shown in Figure 2-9.

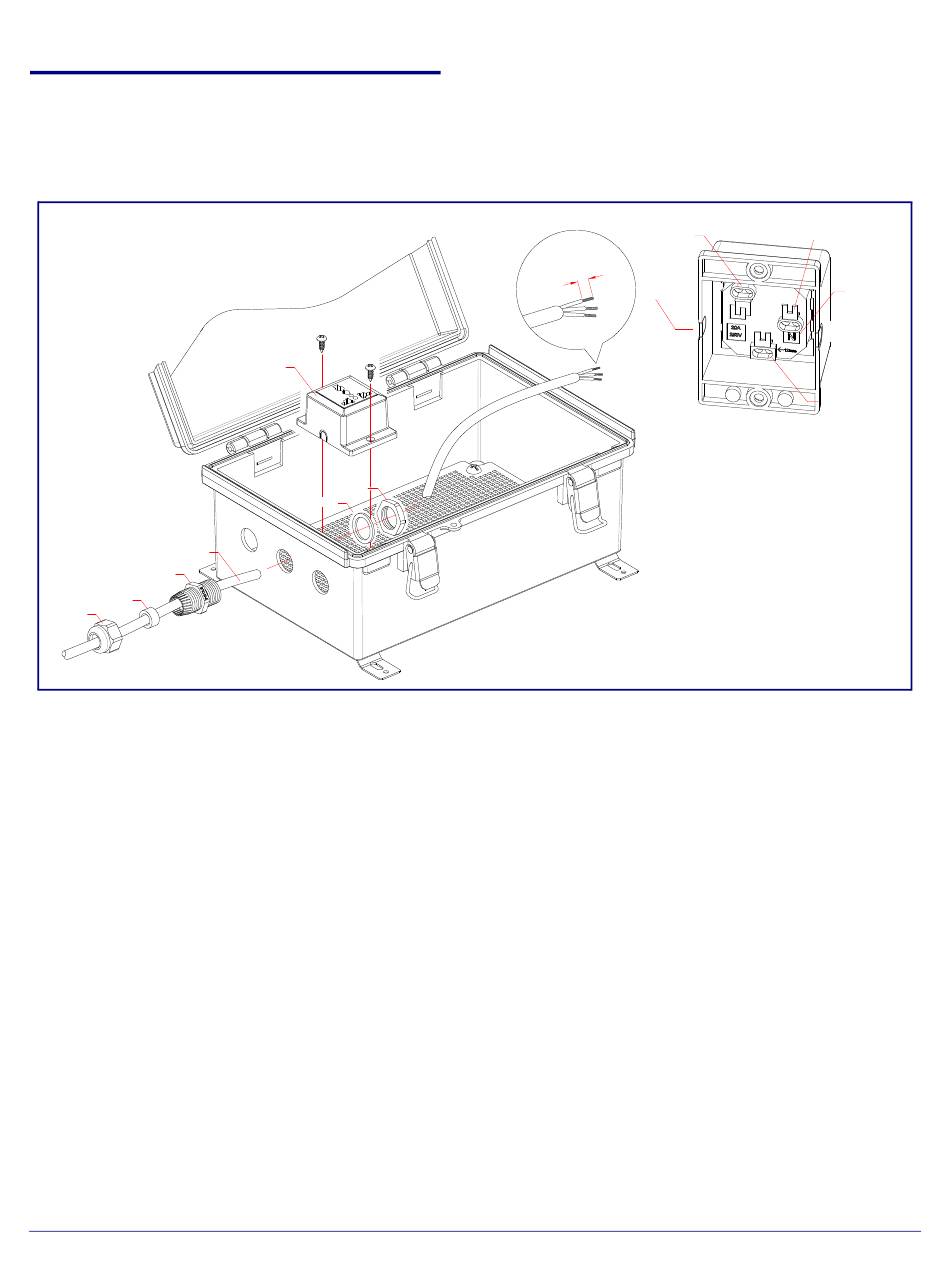

Figure 2-9. Installing the Universal Receptacle
Button
Hold Down to Insert Wire
Release to Engage
L = LIVE
Stripe Wires to
3/8" / 0.328" [8mm]
Tin Bare Wires for
Easy Insert
Break K.O.
N = Neutral
for Cable Exit
Knock Out
Mounting
(K.O.)
Screw
Universal
Receptacle
E = EARTH
GROUND
Universal
Receptacle
Nut
Washer
Power Cord
Coupling
Bushing
End Cap
