Appendix B: Module Configuration Using MicroLogix 1500 and RSLogix 500

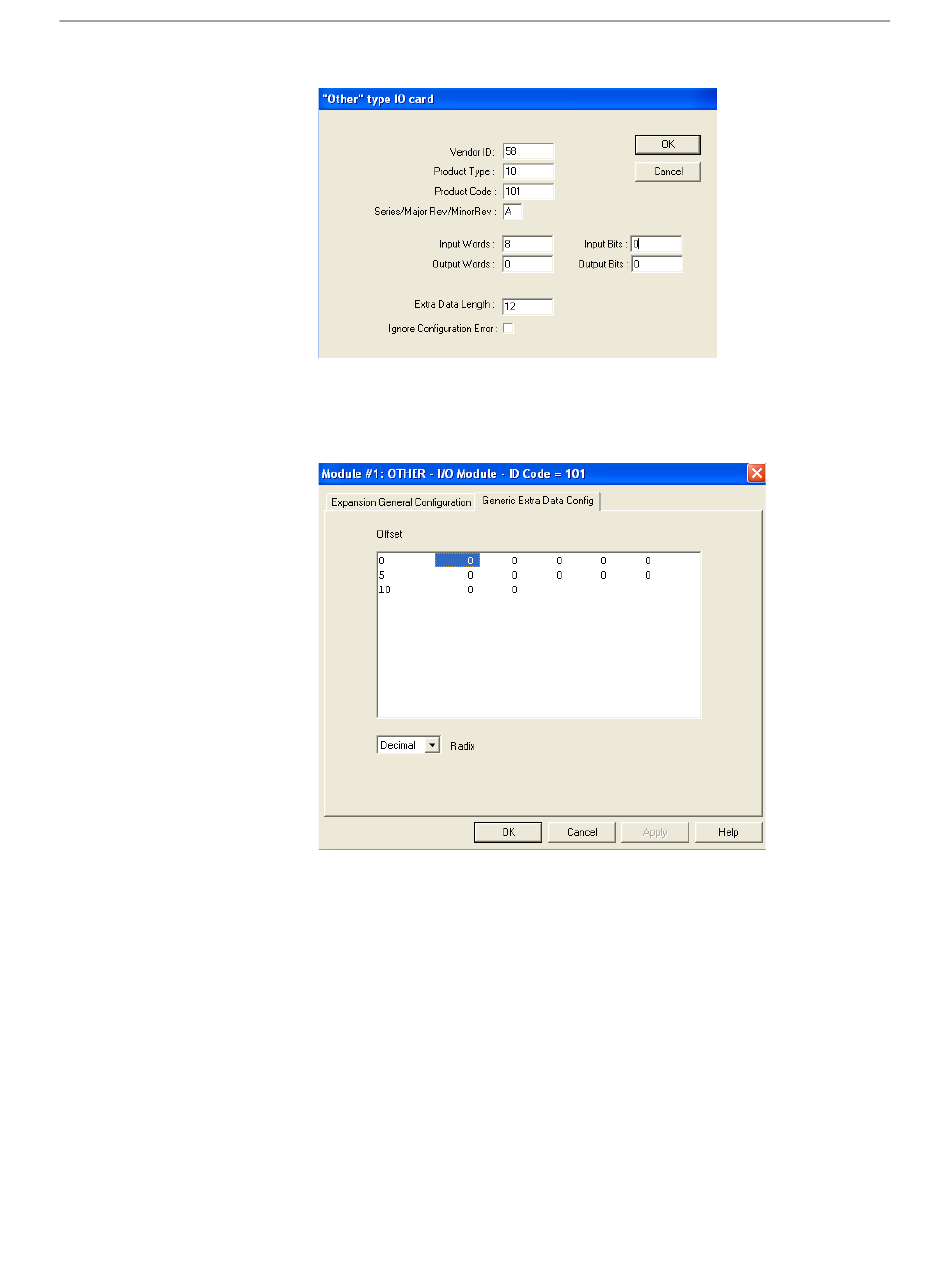

the one shown below.
7. When finished, click OK.
8. To complete the configuration, double-click on the module from the IO
configuration screen and select the Generic Extra Data Config tab.
The following dialog appears:
9. Enter the decimal equivalent of each configuration word. There is a total
of 12 words that need to be configured. If all the configuration words are
left at zero, the default module settings are used.
10. Refer to Chapter 3 for a complete description of each configuration
word.
User's Manual Pub. 0300241-02 Rev. A
B-5
