C-2
Appendix C: Configuring the IR6I for CompactLogix Controllers in RSLogix 5000
User's Manual Pub. 0300241-02 Rev. A

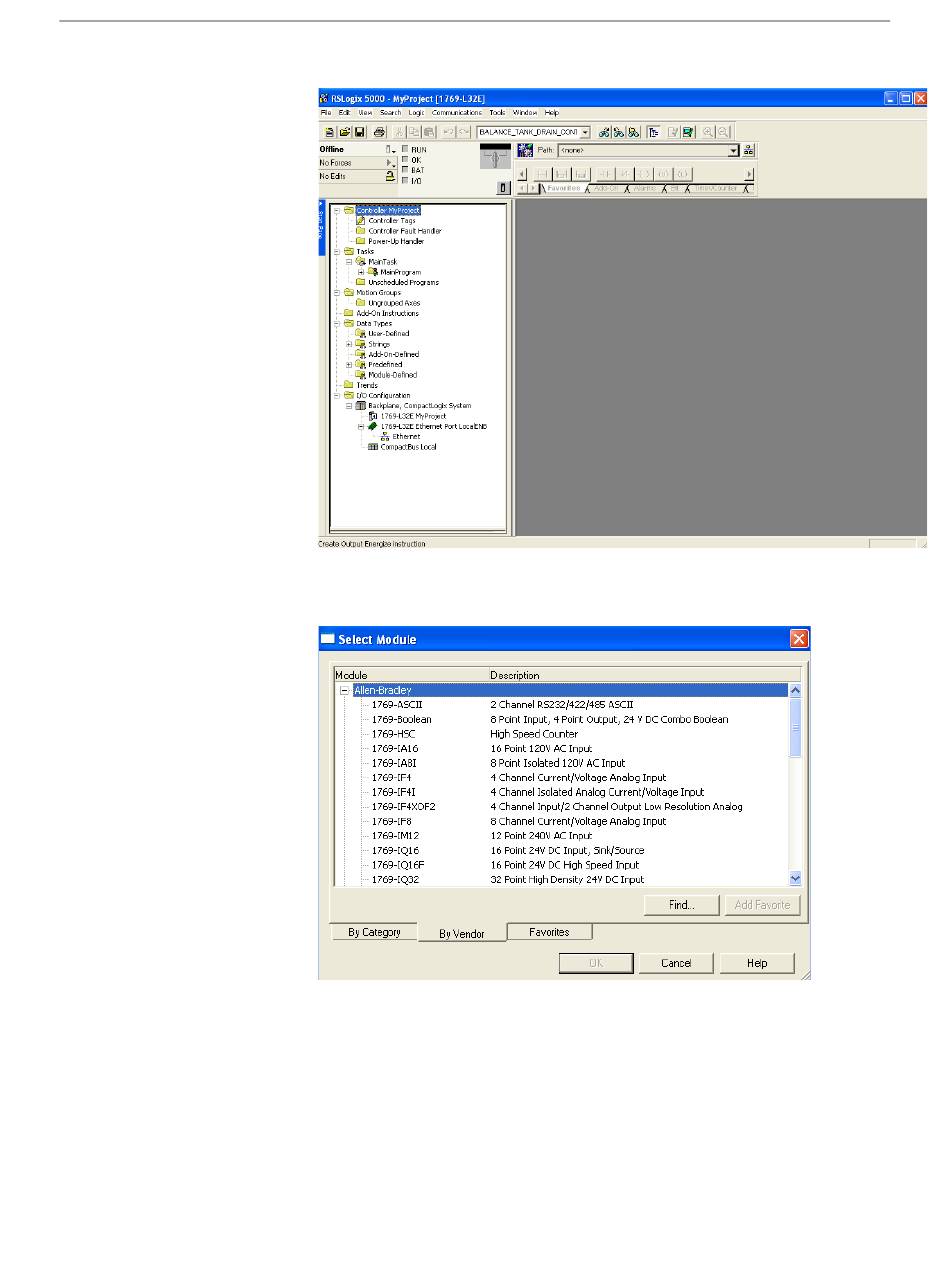

The following main RSLogix 5000 screen appears:
3. In the Controller Organizer on the left of the screen, right click on
CompactBus Local, and select New Module.
The following dialog appears:
4. Use this dialog to narrow your search for I/O modules to configure into
your system. From the list select the Generic 1769 Module.
5. Click the OK button.
