C-4
Appendix C: Configuring the IR6I for CompactLogix Controllers in RSLogix 5000
Configuring
I/O Modules
User's Manual Pub. 0300241-02 Rev. A

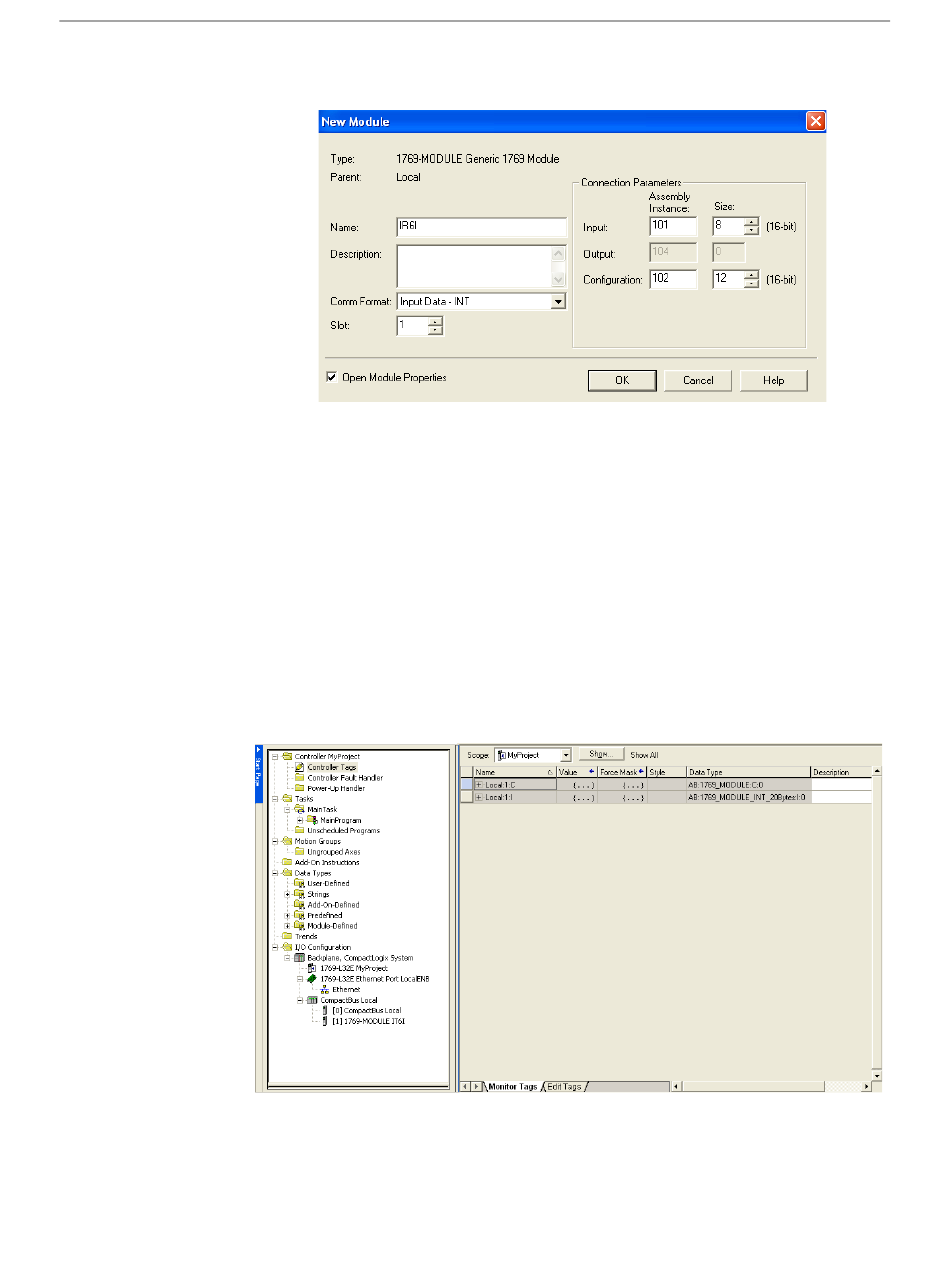

When complete, the Generic Profile for a 1769sc-IR6I module should
look like the following, filled-in dialog:
10. Click Finish to complete the configuration of your I/O module.
11. Configure each I/O module in this manner.
Once you have created a Generic Profile for 1769sc-IR6I Isolated
RTD/resistance module, you must enter configuration information into the tag
database that is automatically created from the Generic Profile information you
entered. This configuration information is downloaded to each module at
program download, at power up, and when an inhibited module is uninhibited.
First, enter the Controller Tag database by double-clicking on Controller Tags in
the upper portion of the Controller Organizer.
Based on the Generic Profile created earlier for 1769sc- IR6I module, the
Controller Tags screen looks like the following:
Tag addresses are automatically created for configured I/O modules. All local
I/O addresses are preceded by the word Local. These addresses have the
following format:
Input Data: Local:s:I
