Panel Mounting Using the Dimensional Template

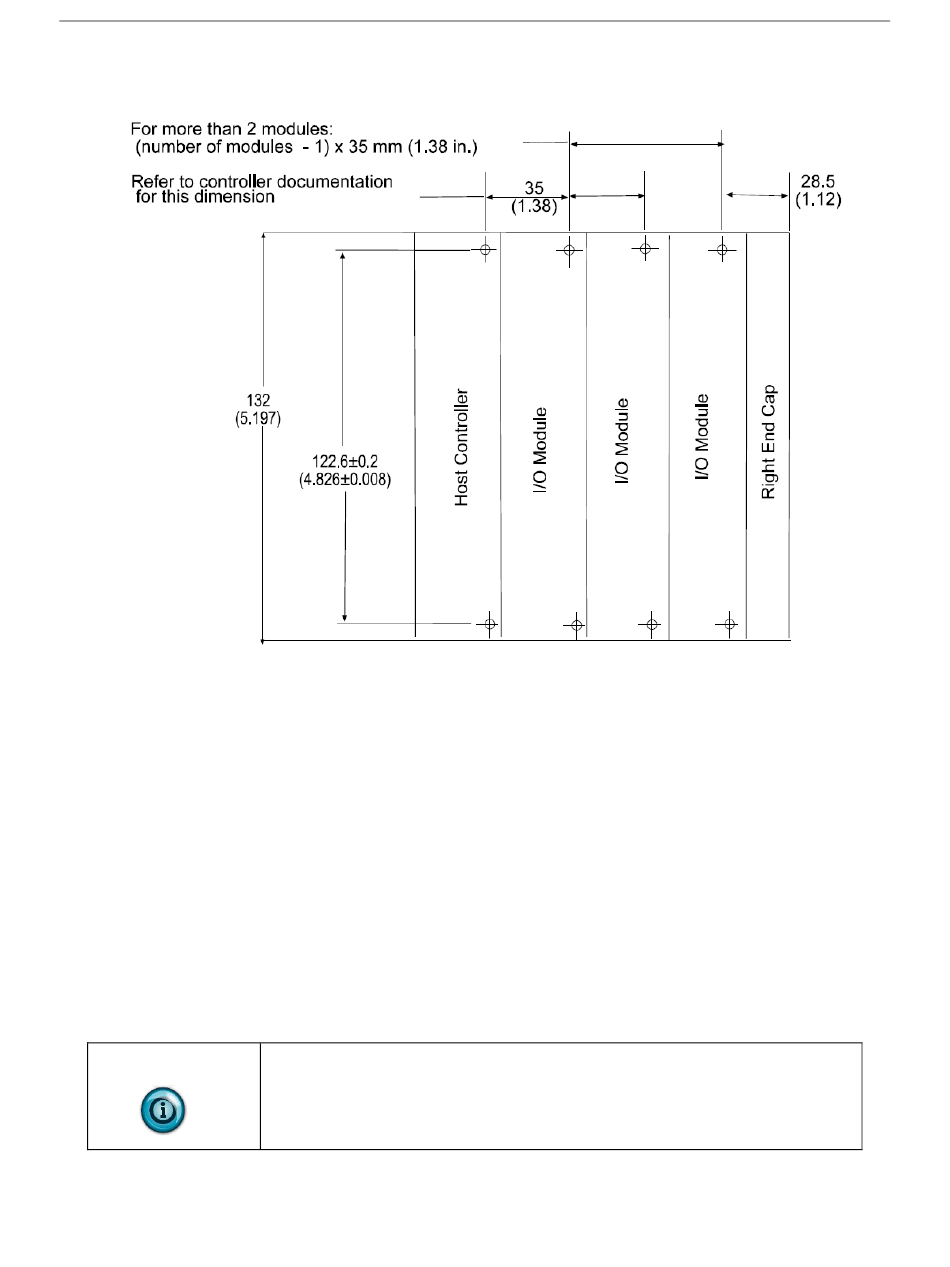

Figure 2-5. Dimensional Template

Panel Mounting Procedure Using Modules as a Template

The following procedure allows you to use the assembled modules as a template
for drilling holes in the panel. If you have sophisticated panel mounting
equipment, you can use the dimensional template provided on 8. Due to module
mounting hole tolerance, it is important to follow these procedures:
1. On a clean work surface, assemble no more than three modules.
2. Using the assembled modules as a template, carefully mark the center of
all module-mounting holes on the panel.
3. Return the assembled modules to the clean work surface, including any
previously mounted modules.
4. Drill and tap the mounting holes for the recommended M4 or #8 screw.
5. Place the modules back on the panel, and check for proper hole
alignment.
6. Attach the modules to the panel using the mounting screws.
If mounting more modules, mount only the last one of this group and put
NOTE
the others aside. This reduces remounting time during drilling and tapping
of the next group.
7. Repeat steps 1 to 6 for any remaining modules.
Chapter 1: Module Overview
User's Manual Pub. 0300241-02 Rev. A
2-9
