B-4 Appendix B: Module Configuration Using MicroLogix 1500 and RSLogix 500
User's Manual Pub. 0300241-02 Rev. A

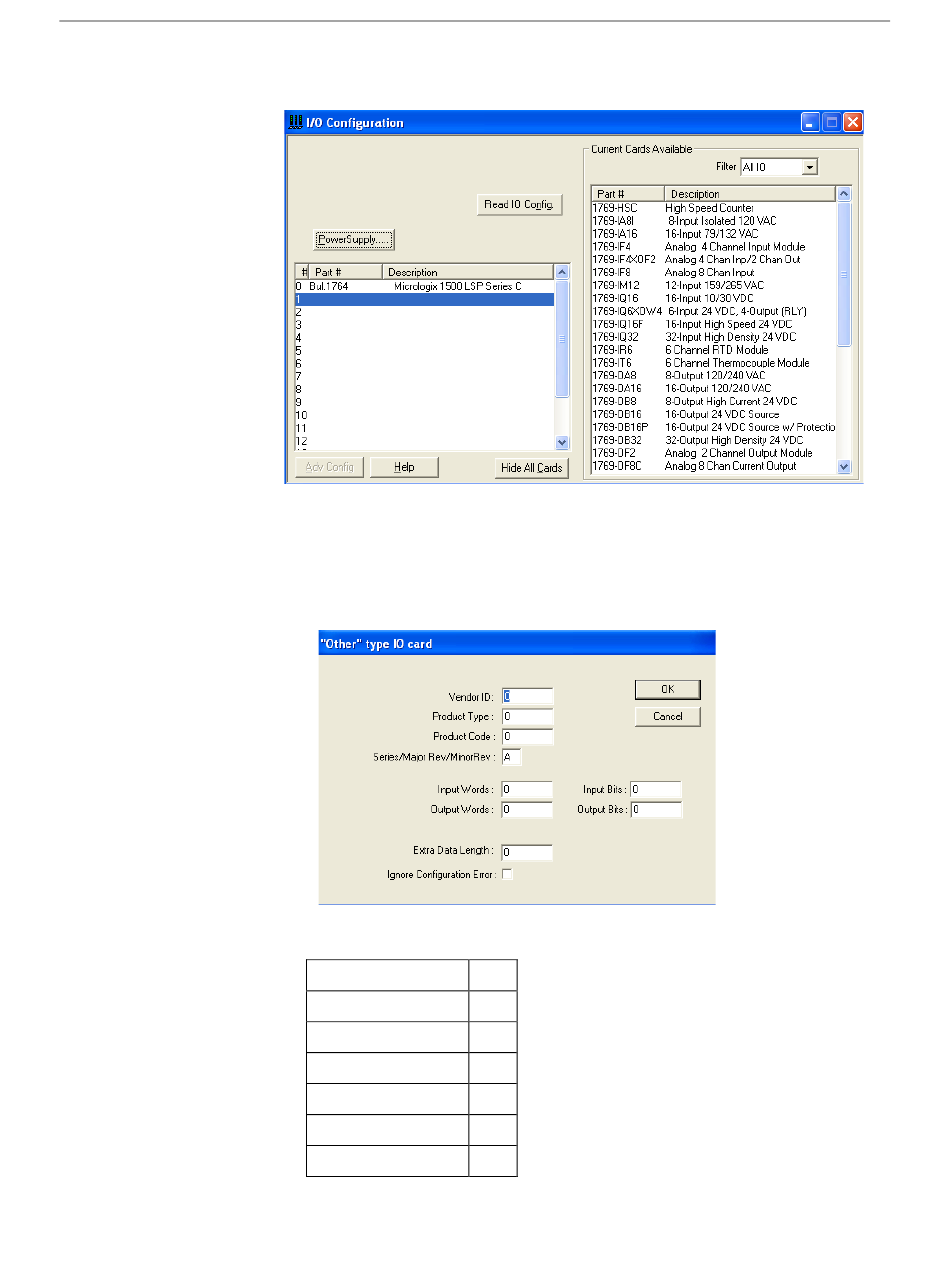

2. While offline, double-click on the IO Configuration icon under the
controller folder and the following IO Configuration screen appears:
3. This dialog allows you to manually enter expansion modules into
expansion slots, or to automatically read the configuration of the
controller. This example shows how to manually insert the module using
the Other option.
4. Click on an empty slot in the chassis. From the Current Cards
Available list, select the Other option. The following dialog appears:
5. Enter the settings from the table below:
Table B-2. Module ID Codes
Vendor ID
Product Type
Product Code
Series
Input Words
Output Words
Extra Data Length 12
6. After entering the data from the table above, the dialog should look like
58
10
101
A
8
0
