B-2 Appendix B: Module Configuration Using MicroLogix 1500 and RSLogix 500
NOTE
1769sc-IR6I
Configuration File
May be overridden by the software.
9
User's Manual Pub. 0300241-02 Rev. A

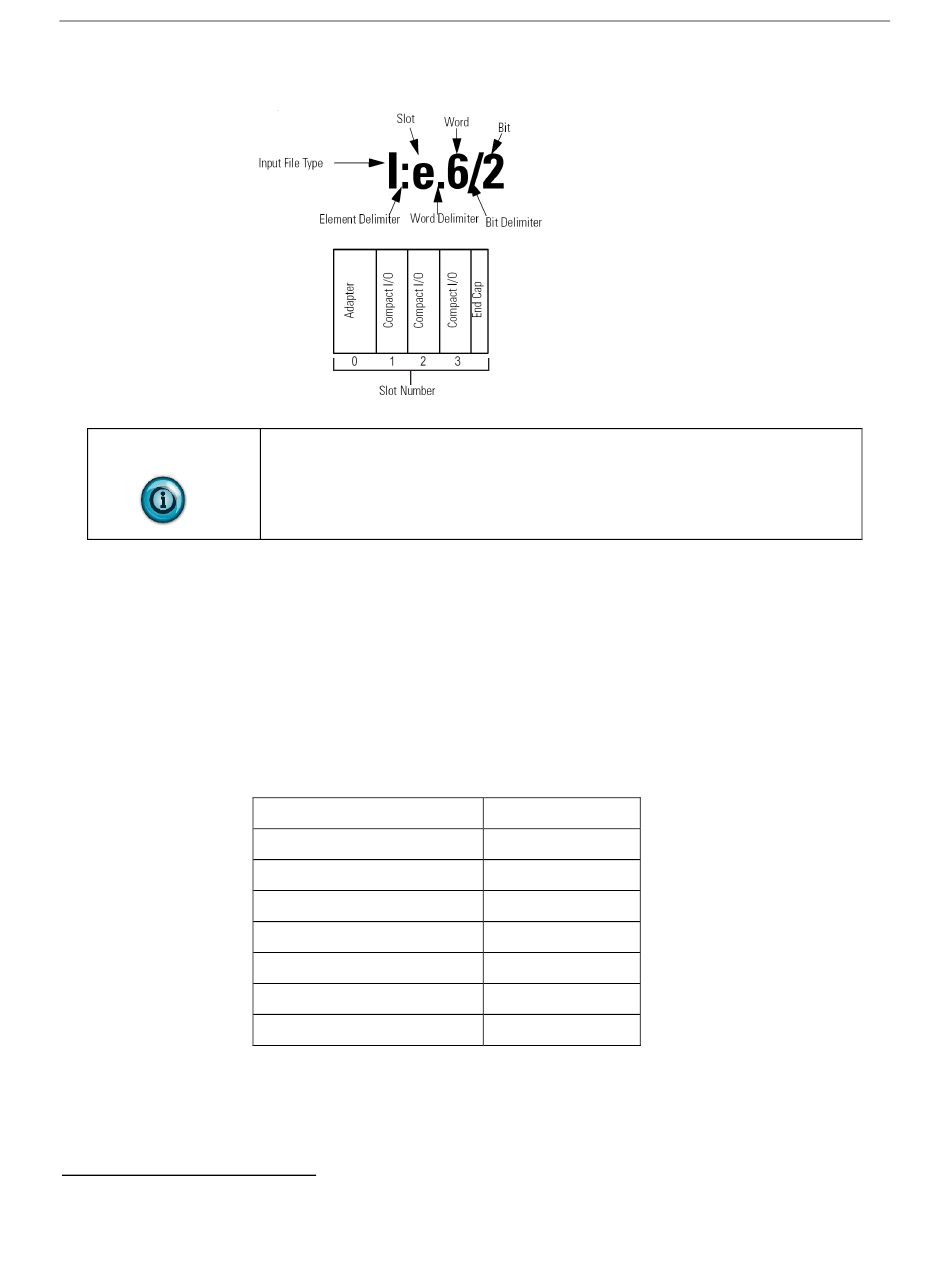

For example, to obtain the general status of channel 2 of the module located in
slot e, use address I:e.6/2.
The end-cap does not use a slot address.
The configuration file contains information you use to define the way a specific
channel functions. The configuration file is explained in more detail in
Configuring Channels.
The configuration file is modified using the programming software configuration
screen. For an example of module configuration using RSLogix 500, see
Configuring the 1769sc-IR6I in a MicroLogix 1500 System.
Table B-1. Software Configuration Channel Defaults
Parameter
Filter Frequency
Cyclic Lead Compensation Yes
Open-Circuit Response
Temperature Units
Input Type
Data Format
Disable/Enable Channel
Default Setting
10 Hz
Upscale
C˚
100 Ω Pt 385
Raw/Proportional
Enable
9
