2-4
Chapter 2: Installation and Wiring
Section 2.4
Mounting
User's Manual Pub. 0300266-02 Rev. B

2.4.1 Before You Begin

Note that this series C product can be used with the following:
ControlNet and EtherNet/IP adapters ONLY, using RSLogix 5000
software, version 11 or later.

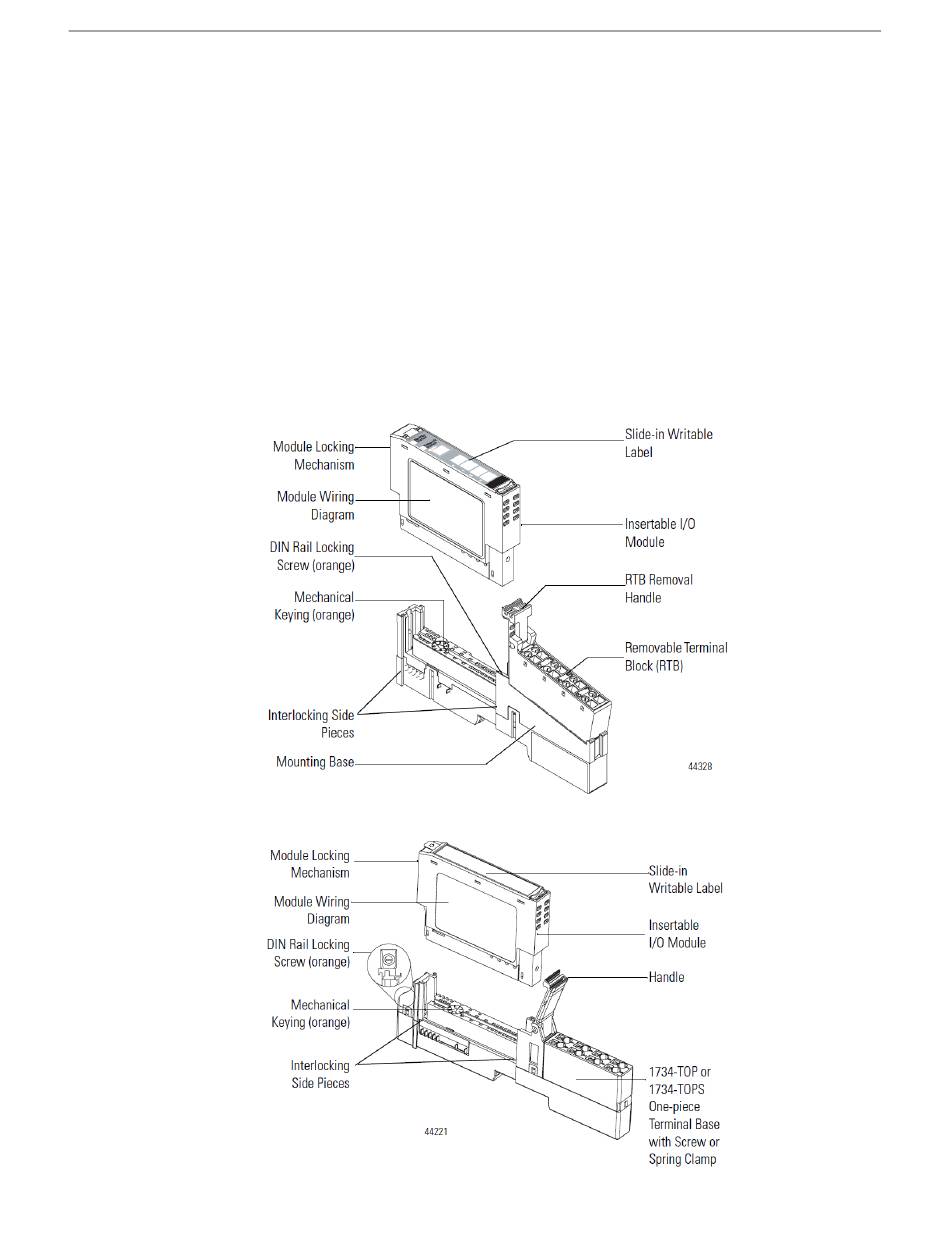

See the figures to familiarize yourself with major parts of the module, noting that
the wiring base assembly is one of the following:
1734-TB or 1734-TBS POINT I/O two-piece terminal base, which
includes the 1734-RTB removable terminal block and 1734-MB
mounting base.
1734-TOP or 1734-TOPS POINT I/O one-piece terminal base.
