Module
Memory Map
NOTE
Chapter 3
Module Data, Status, and
Channel Configuration
After installing the 1769sc-IR6I Isolated RTD/Resistance Input Module, you
must configure it for operation, usually using the programming software
compatible with the controller (for example, RSLogix 500 or RSLogix 5000).
Once configuration is complete and reflected in the ladder logic, you need to
operate the module and verify its configuration.
This chapter contains information on the following:
•

Module memory map

• Configuring channels
• Accessing input image file data

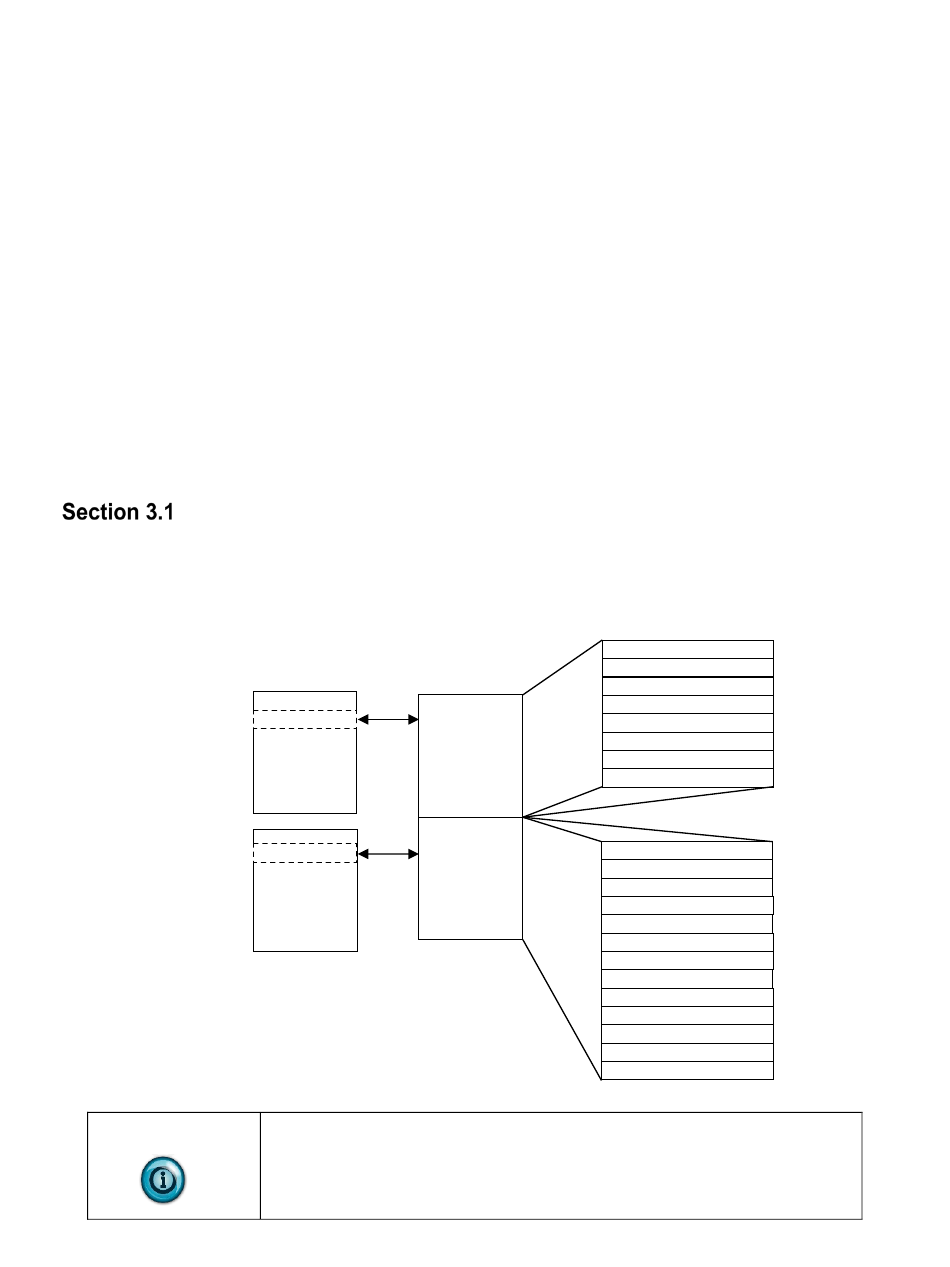

The module uses eight input words for data and status bits (input image), and
seven configuration words.
Slot e
Input Image
File
Slot e
Configuration
File
Not all controllers support program access to the configuration file. Refer
to your controller's user manual.
Input Image
8 words
Over/Under Range Status Bits
Channel 0 Configuration Word
Configuration Channel 1 Configuration Word
File
Channel 2 Configuration Word
12 Words
Channel 3 Configuration Word
Channel 4 Configuration Word
Channel 5 Configuration Word
User's Manual Pub. 0300241-02 Rev. A
Memory Map
Channel 0 Data Word Word 0
Channel 1 Data Word
Word 1
Channel 2 Data Word
Word 2
Channel 3 Data Word
Word 3
Channel 4 Data Word
Word 4
Channel 5 Data Word
Word 5
General/Open-circuit Status
Word 6
Bit
Word 7
Word 0
Word 1
Word 2
Word 3
Word 4
Word 5
Not Used
Word 6
Not Used
Word 7
Not Used
Word 8
Not Used
Word 9
Not Used
Word 10
Not Used
Word 11
Not Used
Word 12
