Appendix D: Configuring the IR6I to be Used with a 1769-AND DeviceNet Adapter

User's Manual Pub. 0300241-02 Rev. A

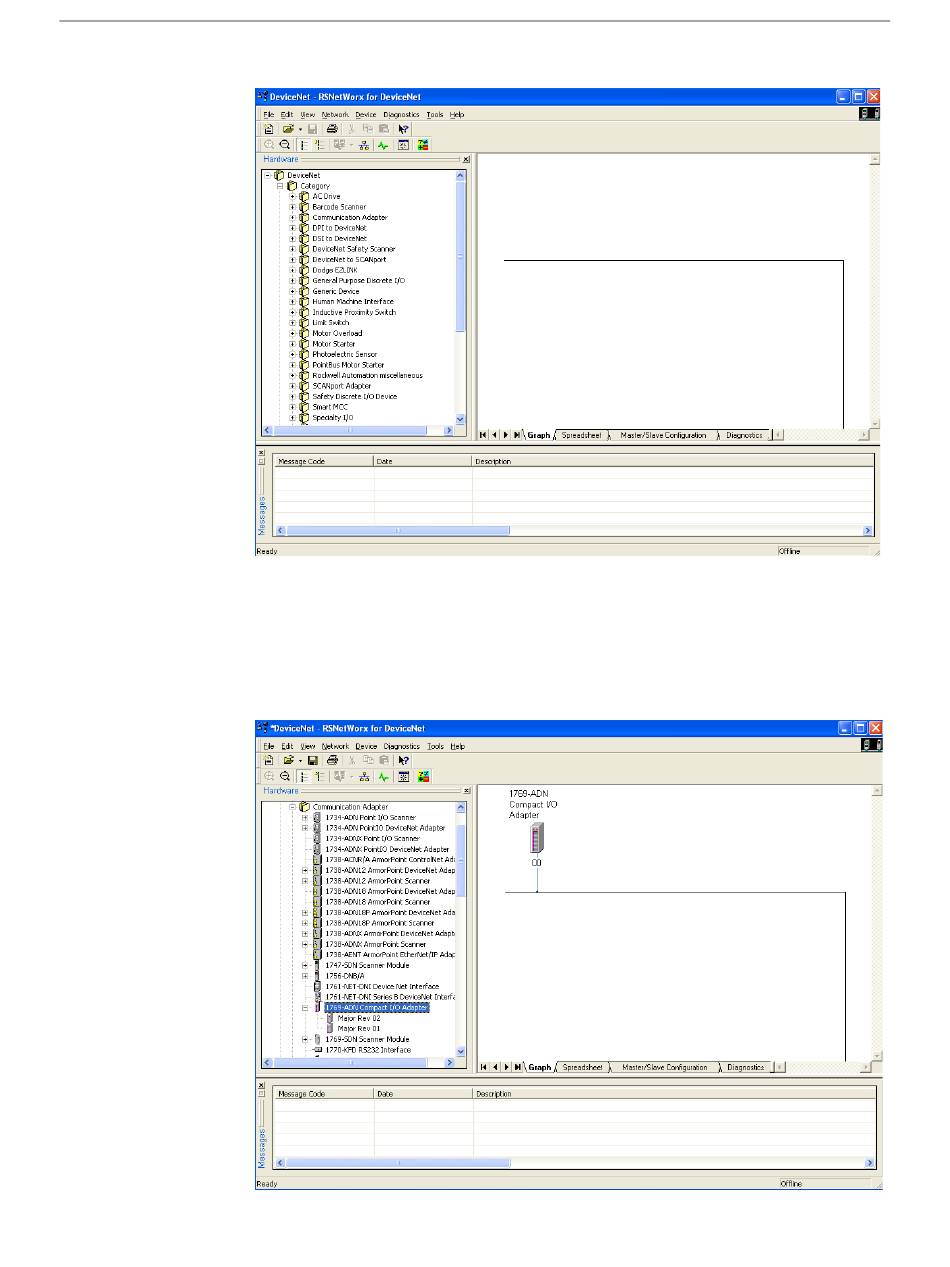

Start RSNetworx for DeviceNet. The following screen appears:

In the left column under Category, click on the "+" sign next to Communication

Adapters. The list of products under Communication Adapters contains the

1769-ADN/A. Should this adapter not appear under Communication Adapters,

your RSNetworx for DeviceNet software is not version 6.00 or later. To

continue, you will need to obtain an upgrade for your software. If the 1769-

ADN/A does appear, double-click it and it will be placed on the network to the

right as shown below.
