Appendix C
Configuring the IR6I for
CompactLogix Controllers in
RSLogix 5000
The procedure in this example is used only when your 1769sc-IR6I Isolated
RTD/resistance module add-on profile is not available. An add-on profile for the
1769sc-IR6I will be made available on our website (www.spectrumcontrols.com)
after the initial release of the module.
To configure a 1769sc-IR6I Isolated RTD/resistance module for a CompactLogix
Controller using RSLogix 5000 with the 1769 Generic Profile:
1. Begin a new project in RSLogix 5000. Click on the new project icon or
on the FILE pull-down menu and select NEW.

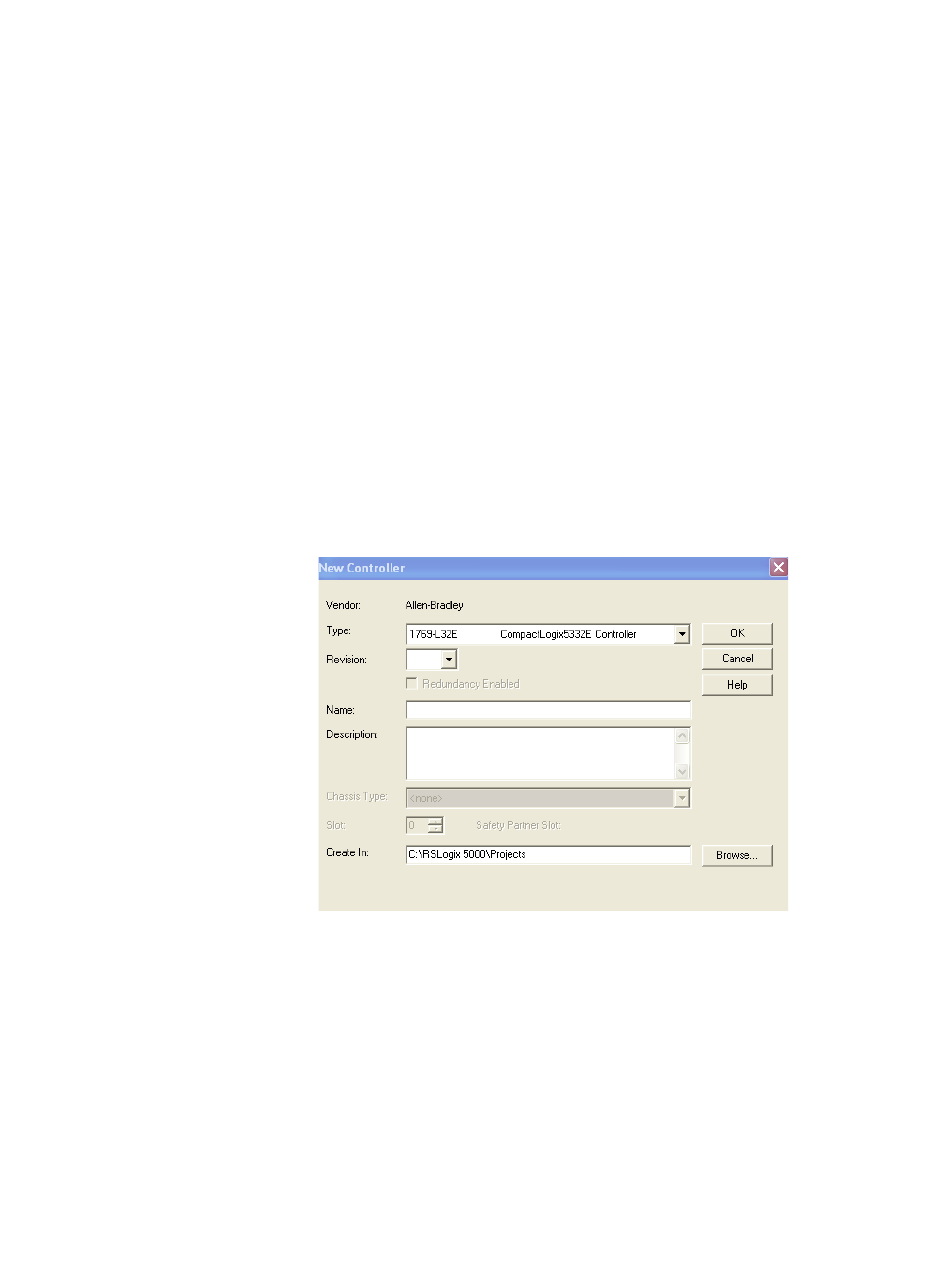

The following dialog appears:
2. Choose your controller type and enter a name for your project, then click
OK.
User's Manual Pub. 0300241-02 Rev. A
