Vu Meter Calibration - Solid State Logic Matrix2 Delta Owner's Manual

VU Meter calibration

• Route a calibrated 0 VU source to the left Mix insert return. Alternatively, connect a level meter to the console's Mix
bus output, route a tone to the Mix bus and set the master fader to give a reading of 0 VU on the output.
• Deselect the Mix insert sum function.
• Deselect the VU meter -10dB function.

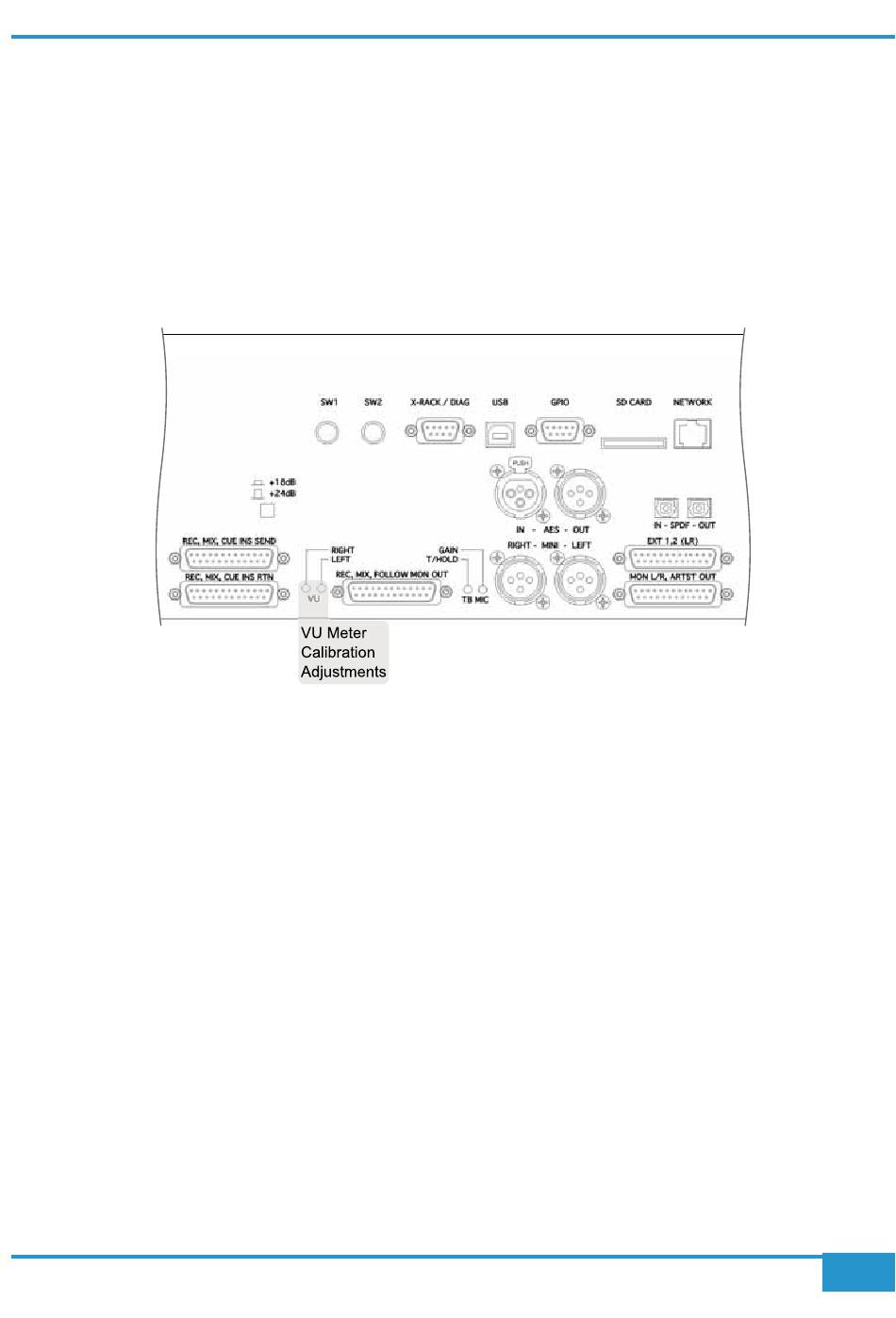

ˆ 0SGEXI XLI :9 QIXIV XVMQ TSX EX XLI VIEV SJ XLI GSRWSPI 9WMRK E XVMQ XSSP SV WQEPP ¾EX FPEHI WGVI[HVMZIV EHNYWX XLI XVMQ
pot to align the left VU meter needle with the 0 VU legend.
• Repeat for the procedure for the right meter.
