Appendix G - Service

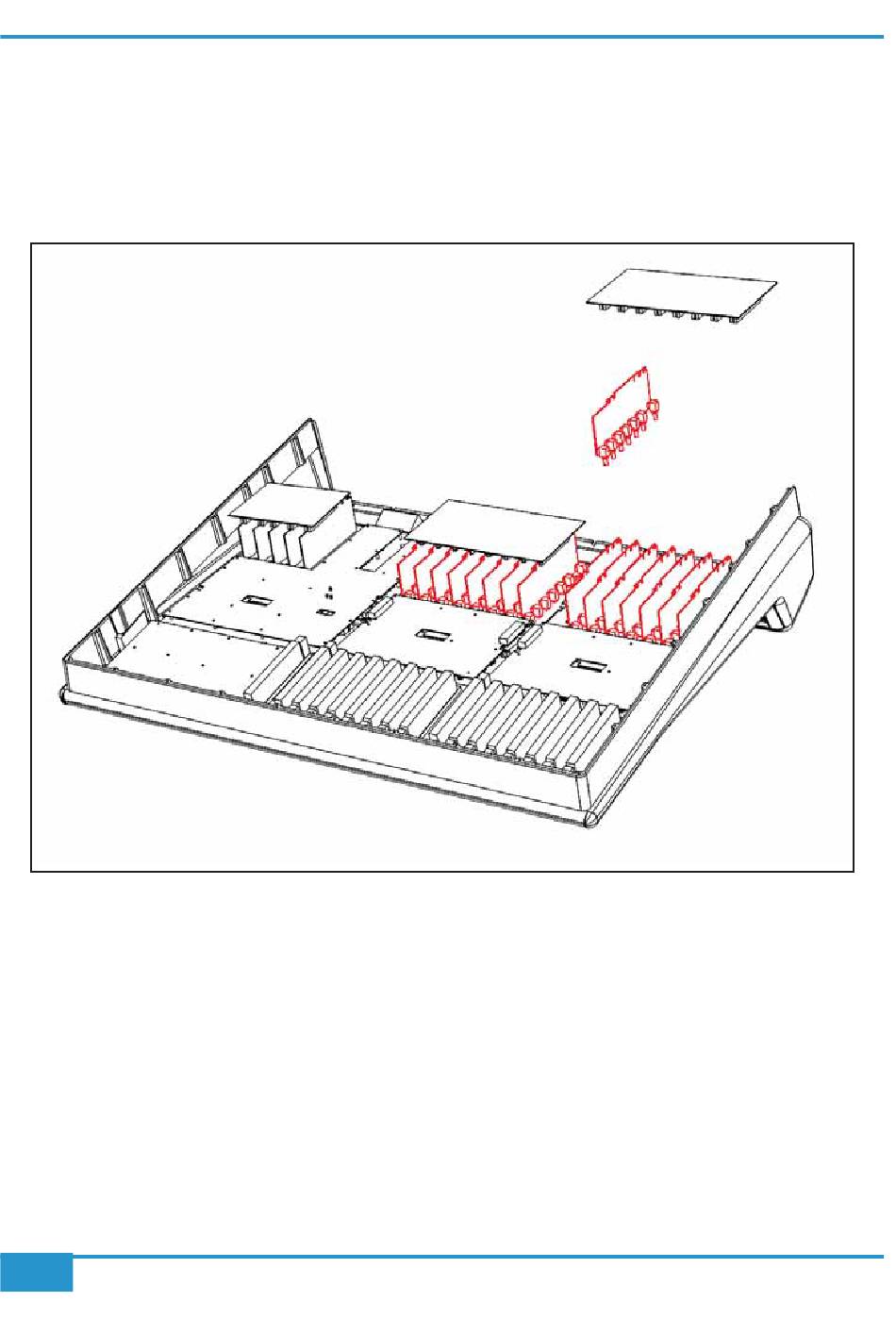

12 - 629501X2 Channel Module Replacement
• Remove the knob caps and retaining collars from the channel module to be replaced.
• Follow instructions #1 and #2 for the removal of the base plate and rear panel.
• Follow the instruction #11 for the removal of 629510X1 channel buscard.
ˆ 8LI JEYPX] QSHYPI [MPP FI EXXEGLIH XS XLI FYWGEVH ½X XLI VITPEGIQIRX EWWIQFP] XS XLI FYWGEVH ERH VIEWWIQFPI
