Sports Production, USA
SBS Radio, Korea
Comcast, USA
Nippon Hoso, Japan
Physical and Environmental Specification
C100 HD
Max Height
1101mm (43.34")
Width
(32 fader = 1348mm (53")
Each bay adds
334mm (13.15")
Contoured end trim adds
106mm (4.17")
Max Depth
992mm (39.06")
Height Adjustment
±22.5mm (±0.9")
Weight
(32 fader) ~164kg (~361lb)
Each bay adds weight
~35kg (~77lb)
Console Power
100-240V AC,
(dependent on frame size)
300-700W
Control Surface Cooling Method
Convection
(silent)
Solid State Logic
International HQ: Begbroke, Oxford, England OX5 1RU · Tel +44 (0)1865 842300 · Email sales@solid-state-logic.com
France: 7 bis de la Victoire, 93150 Le Blanc Mesnil, France · Tel +33 (0)1 48 67 84 85 · Email frsales@solid-state-logic.com
Italy: Via Timavo 34, 20124 Milano, Italy · Tel +39 0392 328094 · Email itasales@solid-state-logic.com
New York: 320 West 46th Street, New York, NY 10036 · Tel +1 212 315 1111 · Email nysales@solid-state-logic.com
Los Angeles: 5757 Wilshire Boulevard Suite 401, LA, CA 90036 · Tel +1 323 549 9090 · Email lasales@solid-state-logic.com
Japan: 3-55-14 Sendagaya, Shibuya-Ku, Tokyo 151-0051 · Tel +81 (0)3 5474 1144 · Email jpsales@solid-state-logic.com
© 2008 by Solid State Logic. All Rights reserved under International and Pan-American Copyright Conventions. Solid State Logic and SSL are trademarks of Solid State Logic.
All other trademarks are the property of their respective owners. No part of this publication may be reproduced in any form or by any means, whether mechanical or
electronic, without the written permission of Solid State Logic, Oxford, England. Solid State Logic has a policy of continual product enhancement and reserves the right to
alter specifications without notice. E&OE. 20.03.08. SSL Part No. 82BROMAT
C100 HD Range.
This is SSL.
www.solid-state-logic.com
Golf Channel, USA
ITN, UK
C100 HD-S
C100 HD-L
1006mm (39.61")
1006mm (39.61")
40 fader = 1431mm (56.34")
1431mm (56.34")
285mm (11.22")
n/a
72mm (2.83")
72mm (2.83")
926mm (36.46")
926mm (36.46")
-0,+10mm (-0",+ 0.39")
-0,+10mm (-0",+ 0.39")
(40 fader) ~190kg (~419lb)
(40 fader) ~190kg (~419lb)
~35kg (~77lb)
n/a
100-240V AC,
100-240V AC,
300-700W
300-700W
Convection
Convection
(silent)
(silent)

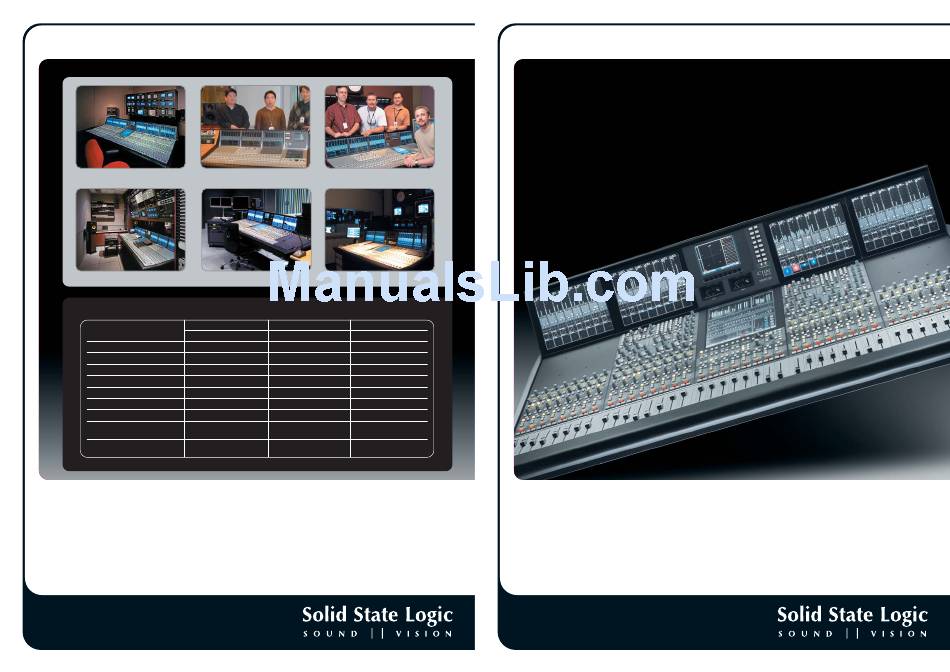

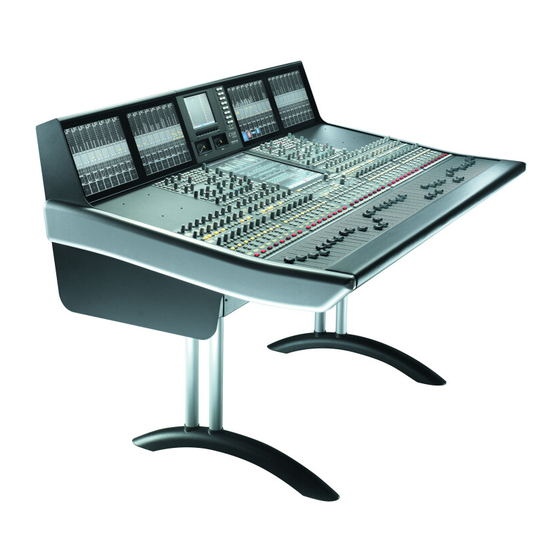

C100 HD Range
Digital Broadcast Consoles
A complete range of scalable broadcast systems
C100 HD Range.
This is SSL.
www.solid-state-logic.com
Advertisement
Related Manuals for Solid State Logic C100 HD Range
Summary of Contents for Solid State Logic C100 HD Range
- Page 1 Japan: 3-55-14 Sendagaya, Shibuya-Ku, Tokyo 151-0051 · Tel +81 (0)3 5474 1144 · Email jpsales@solid-state-logic.com © 2008 by Solid State Logic. All Rights reserved under International and Pan-American Copyright Conventions. Solid State Logic and SSL are trademarks of Solid State Logic.
- Page 2 The C100 HD Range comprises three consoles; the fully scalable C100 HD with the power to handle the requirements of the most demanding National Broadcaster, the fully scalable C100 HD-S slimline console design that packs all the power of C100 HD into Mobile and space restricted environments and the new C100 HD-L pre-configured 40 fader console &...
-
Page 3: Console Overview
5.1 mixes quickly • A full processing toolkit is retained regardless of mono/stereo/ 5.1 format C100 HD Range. This is SSL. I/O and routing expansion • 5.1 Monitor insert point with separate •... - Page 4 • Input signal meter • GPI control • Reset and layer protection • 4-character fader grouping display • User-programmable backstop PFL C100 HD Range. This is SSL. Output meters • Choice of electronic and mechanical • Process matrix and bus routing metering •...
- Page 5 • Motorised faders • Slim 30mm fader pitch • GPI control • Reset and layer protection • User-programmable backstop PFL C100 HD Range. This is SSL. Output meters • Choice of electronic and mechanical • Process matrix and bus routing metering •...
- Page 6 On-screen attention (ATT) boxes allow the 8 central faders below the touchscreen to be selected for processing or configuration changes C100 HD Range. This is SSL. www.solid-state-logic.com Comcast SportsNet PGM outputs provide 2 outputs in stereo and/or 5.1, with dynamics gain reduction...
- Page 7 High-res Dynamics (Compressor/Limiter and echoes the last parameter altered Gate/Expander) transfer response graph on the selected channel C100 HD Range. This is SSL. Indicators for the 24 Utility busses are shown, with the 8 ASG, the 2 PGM, and the N-1 bus...
- Page 8 Other Console(s) DAW/Editor Stagebox Headphones/ Earpieces C100 HD Range. This is SSL. MADI I/O. Embedding of stagebox control data on the fibre-optic cable removes the need for separate serial/ethernet cabling and offers the same interference immunity benefits as the audio enjoys.
