2 - Rear Connector Panel Removal
ˆ
)MXLIV JSPPS[ MRWXVYGXMSR JSV JYPP FEWI TPEXI VIQSZEP SV NYWX VIQSZI XLI FEGO VS[ SJ FEWI TPEXI WGVI[W XS PIEZI XLI FEWI
plate in place (all of the following illustrations show the base plate removed, regardless of whether it is essential to access
the assemblies concerned).
•
Using a #1 Pozidrive screwdriver, remove the 19 pan head Pozi screws from the edge of the rear panel.
•

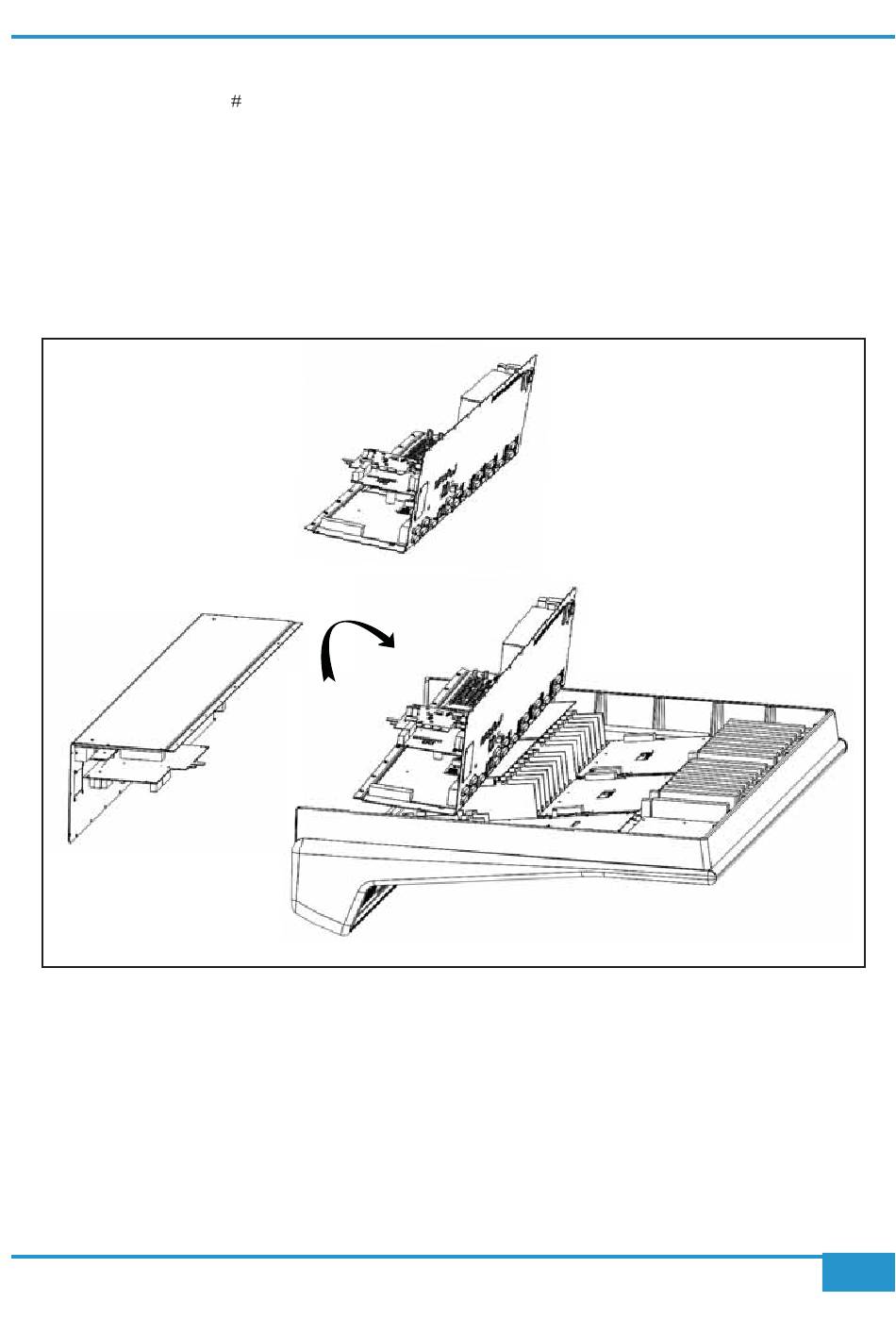

Slide the panel away from the console slightly and then rotate the panel so that the connectors lay against the underside
of the console.
•
Align the holes in the rear panel with the inserts on the base of the console and secure in place with two of the previously
removed pan head screws.
Appendix G - Service
Matrix
2
Owner's Manual
147
