Solid State Logic Matrix2 Delta Owner's Manual page 161

9 - 629507XC Motion Control
ˆ 9WMRK E QQ ,I\ HVMZIV PSSWIR XLI KVYF WGVI[ MR XLI NSK [LIIP ERH XLIR VIQSZI 8EOI GEVI RSX XS PSWI XLI TPEWXMG [EWLIV
YRHIVRIEXL XLI NSK [LIIP

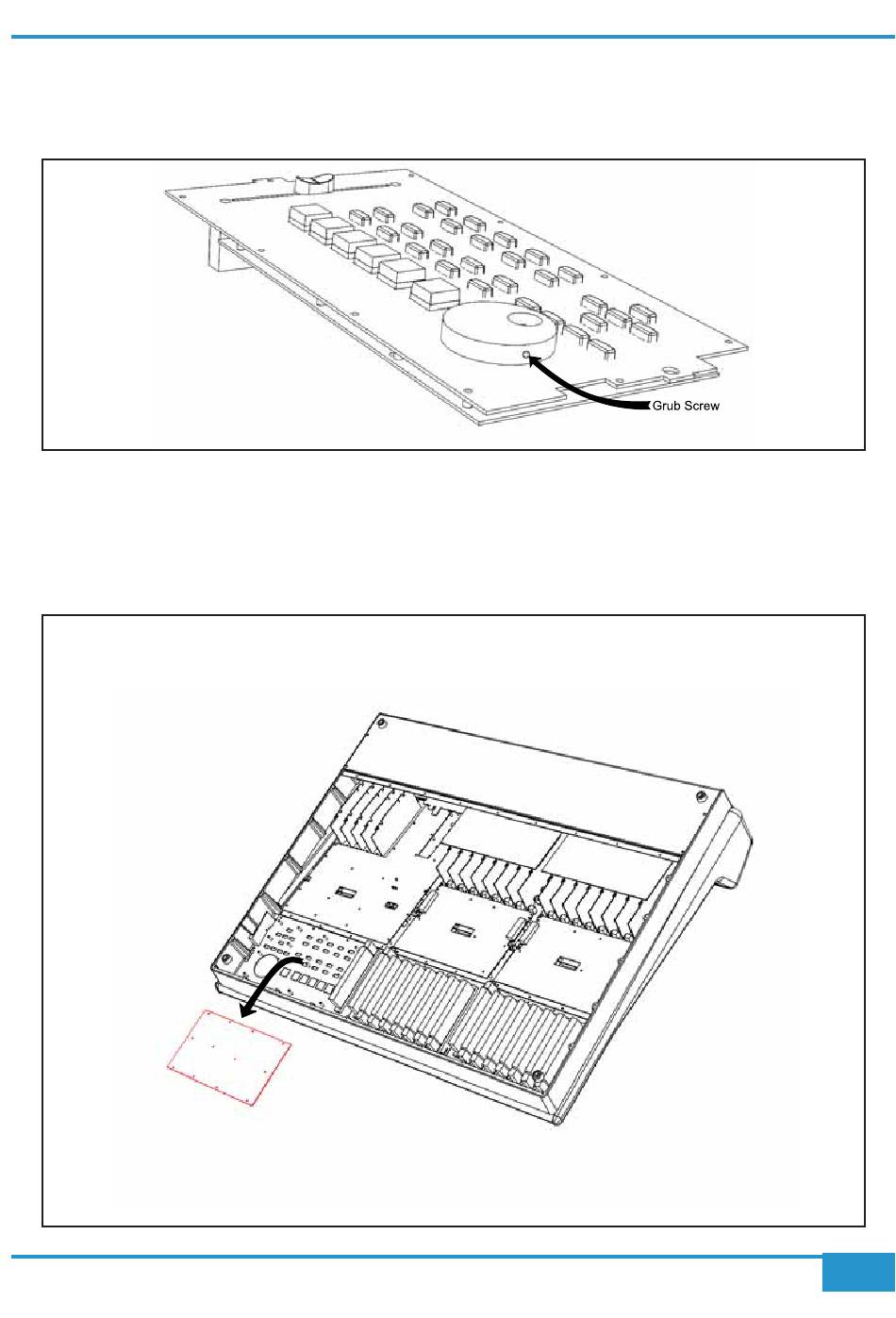

• Follow instruction #1 for the removal of the base plate.
• Disconnect Loom J and the two master fader connections from the motion control assembly.
• Remove the 12 screws securing the motion control assembly to the front plate.
ˆ 6ITPEGI [MXL RI[ EWWIQFP] ERH VIEWWIQFPI XEOI GEVI [LIR VI½XXMRK XLI NSK [LIIP XS IRWYVI JVII VSXEXMSR
Appendix G - Service
