44. Quick ---shift gear, reverse shuttle
and 4WD clutch

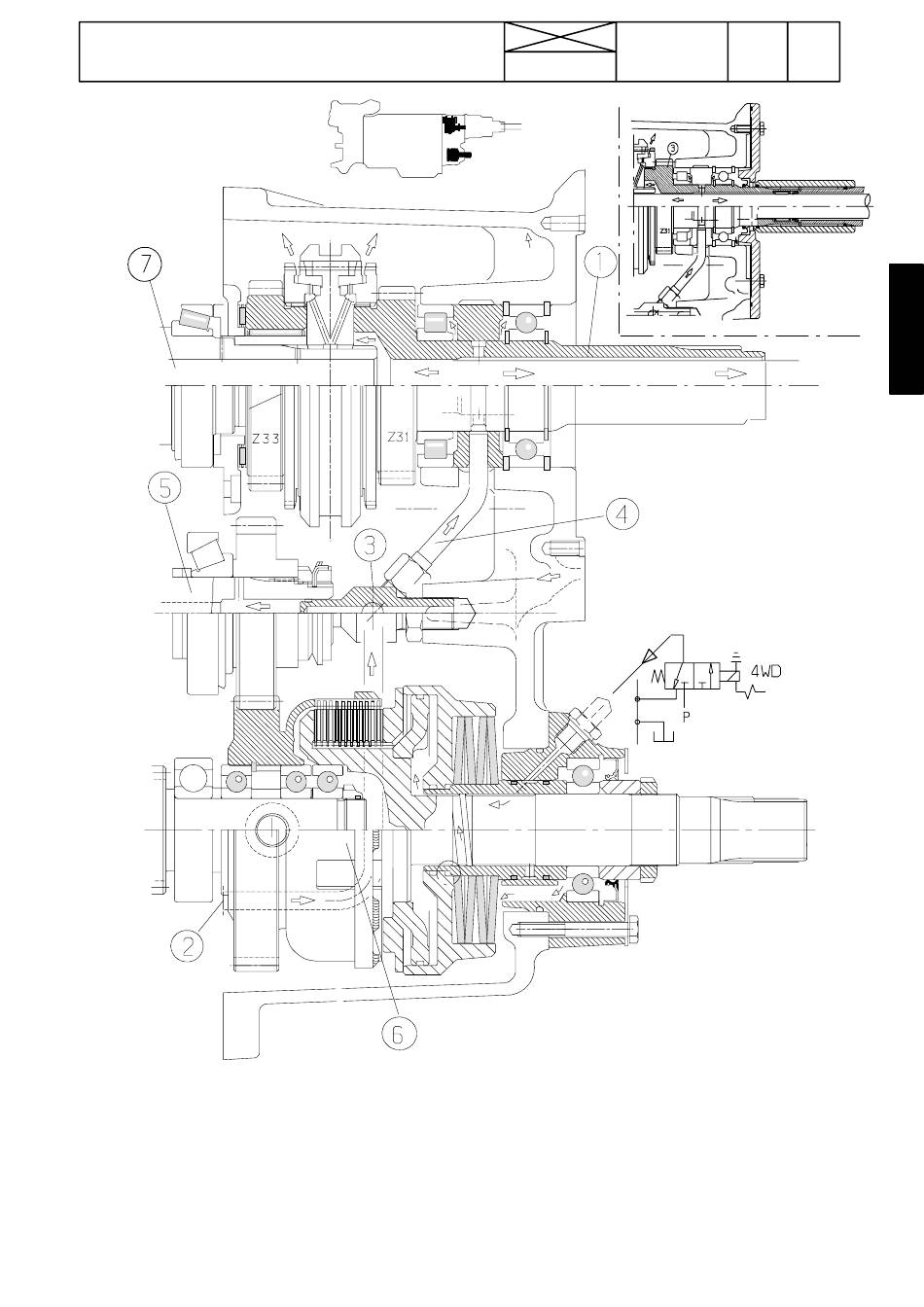

Picture 10. Mechanical reverse shuttle and 4WD clutch on
tractors which have a 3 ---step quick ---shift gear (Delta Powers-
hift).
1. Reverse shuttle input shaft
2. Lubricating oil inlet
3. Lubricating oil distribution piece
4. Lubricating oil to reverse shuttle and quick ---shift gear
5. Bevel pinion shaft front end
6. 4WD multi ---disc clutch (see also page 440/21)
7. Gearbox input shaft
Model
1. 11. 1998
6000-- 8750
1. 8. 2000
Note! On tractors with Delta Powershift, the revese shuttle
layshaft and reversing shaft are the same as earlier, see pre-
vious page. Between the reverse shuttle input shaft bearings
there is a loose metal ring and the ball bearing of the input
shaft has circlips on both sides of the bearing.
Note! This shuttle and 4WD clutch is also on latest tractors
which have not the Delta Power Shift. In this case, the shuttle
input shaft is tightened with a flange which has an oil seal. Also
inside the input shaft, there is a needle bearing and a seal for
the pump (PTO) drive shaft.
749
Code Page
440 19
Utan DPS
Without DPS
NOTE! The latest modifications of
the mechanical shuttle and 4WD
clutch, see page 440/27.
