Valtra 6000 Workshop Manual page 1041

64. Powered front axle
3. Measure the thickness of the inner bearing (larger bearing),
measurement H (e.g. 28,00 mm).
4. Calculate the number of shims required for correct pinion
shaft position:
S=C ---(H+E)=136,50---(108,00+28,00)=0,5 mm
5. Put the shims required under the inner bearing outer race
and fit the outer race against the shims. Fit the outer bearing
outer race.
6. Heat the inner bearing to 80˚C and fit it onto the pinion shaft.
Push fully home.
7. Push the pinion shaft into the housing. Heat the outer bear-
ing to 80˚C and push it onto the shaft against the outer race.
Fit the circlip.
8. Fit the drive flange onto the pinion shaft (do not fit the seals
yet) and fit the shims, spacer ring and the nut. Tighten the nut
to 250 Nm.
N.B. Turn the shaft 20---30 revolutions before measuring the
rolling resistance and lubricate the bearings with oil.
8. 11. 1990

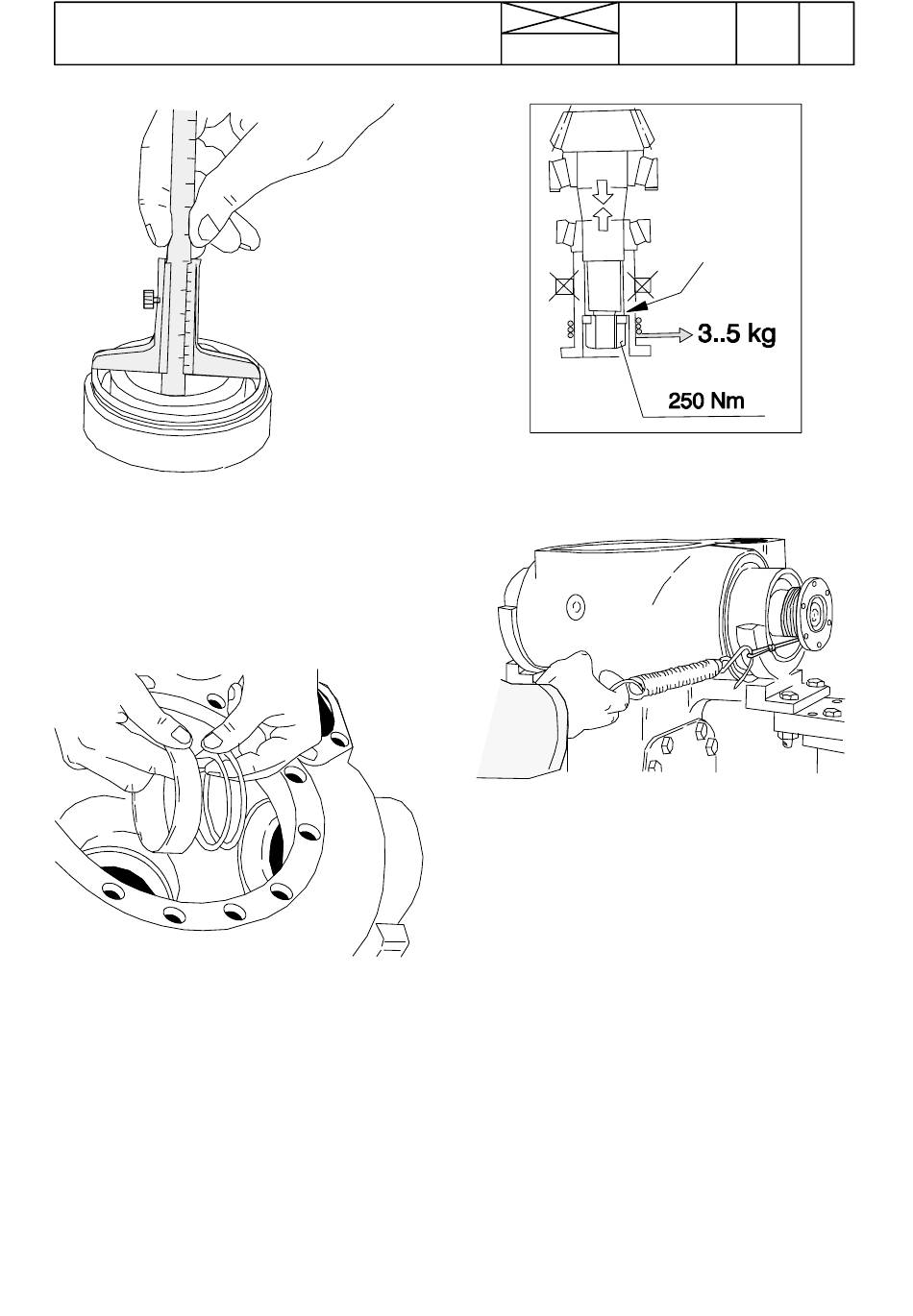

Figure 6. Adjustment of pinion shaft bearing preload.
9. Use a spring balance (see figure above) to measure the
force needed to rotate the pinion shaft. The rolling resistance
should be 3 ---5 kg. If the rolling resistance is not correct the
number of shims under the nut must be adjusted.
N.B. If the rolling resistance is too great more shims are re-
quired and vice versa.
10. When rolling resistance is correct the seals can be fitted.
Grease the lips of the seal with universal grease; fit a dust seal
in front of the seal.
N.B. Tool 893600 can be used when fitting the seals.
11. Fit shims, spacer ring and drive flange; tighten the nut to
250 Nm.
984
Model Code
6000-- 8750 644
s=0,15
0,2
0,5
Page
4
