67. Powered front axle Carraro

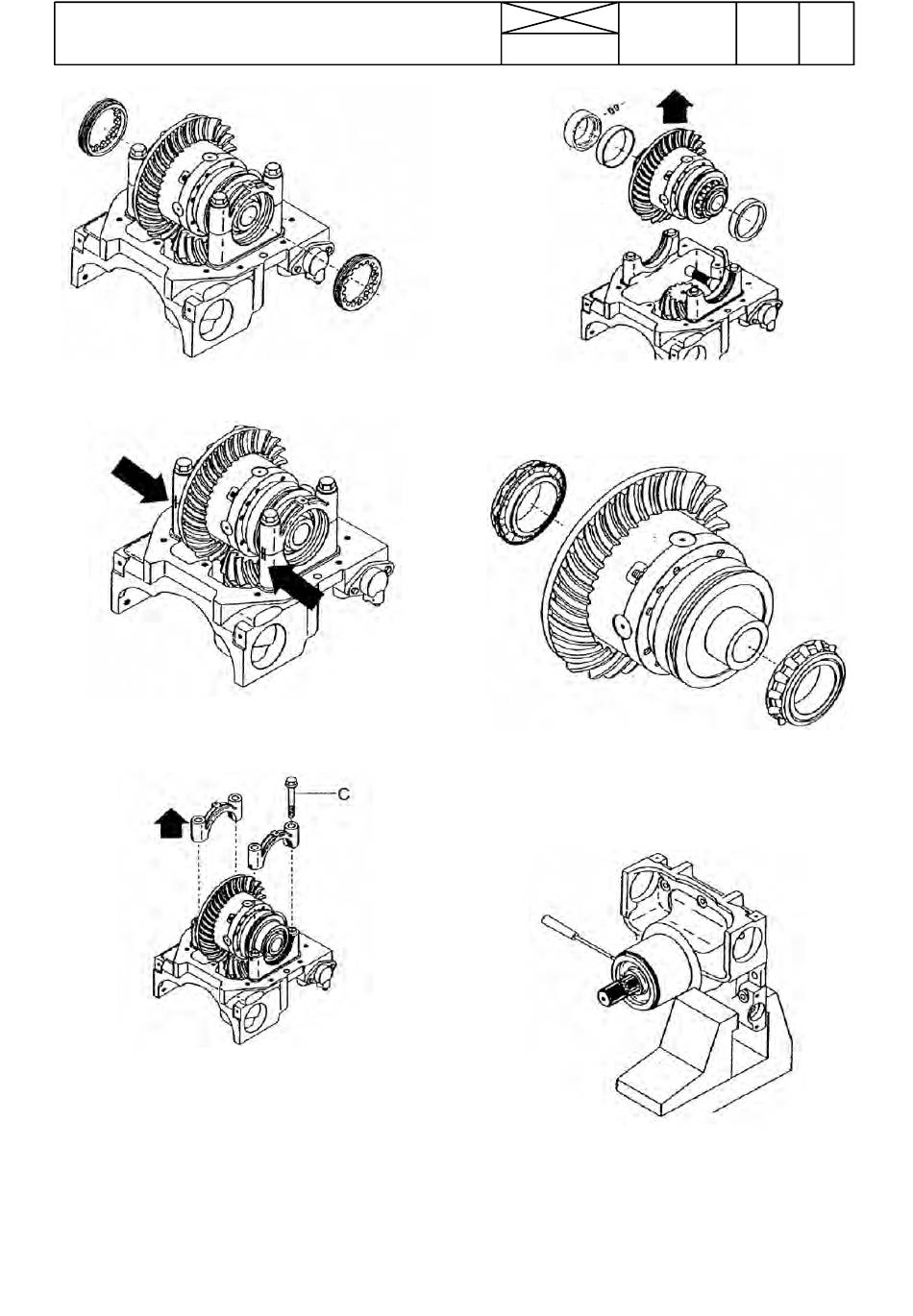

6. Unscrew and remove the adjusting nuts.
7. Before removing the differential bearing caps, mark their
positions to make refitting easier.
8. Unscrew the bearing cap bolts (C) and remove the caps.
1. 10. 1999
9. Remove the differential unit together with its bearings
and remove oil distributor sleeve, o---ring and the intermedi-
ate ring.
10. Remove the differential bearings, when necessary.
C. Removing bevel pinion shaft:
11. Remove the cassette seal by prising it out (note that the
seal is damaged when it is removed).
1028
Model Code
8450-- 8950 674
Page
2
