Cabin Heater - Valtra 6000 Workshop Manual

80. Cab and shields

Cabin heater

1 2
0
1
8

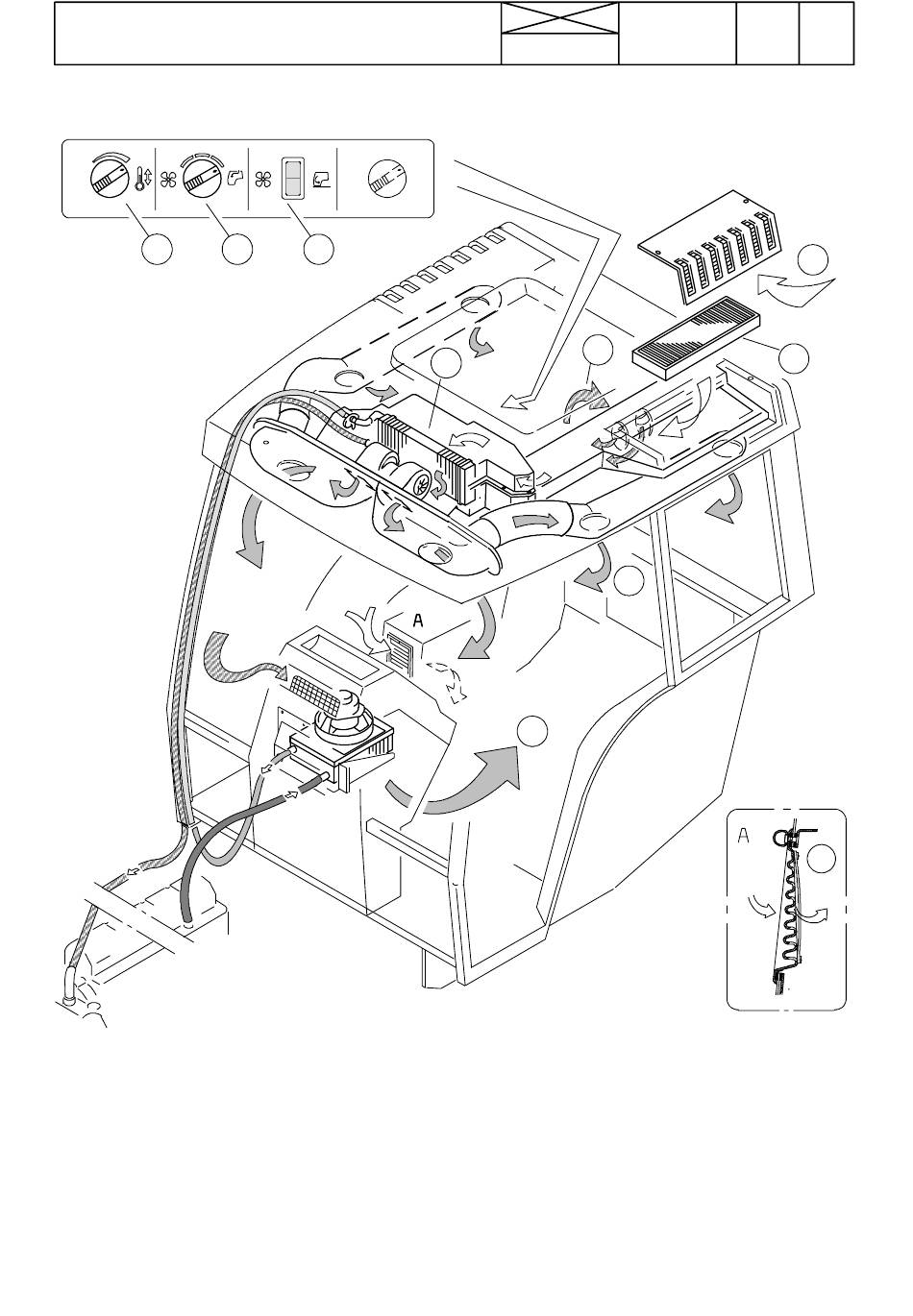

1. Air intake
2. Air filter (clean at intervals of 200 running hours)
3. Heater radiator
4. Re ---circulation of air (can be closed when needed)
5. Warm air into the cab (nozzles can be turned 360˚)
6. Warm air for the lower part of the cab
7. Overpressure valve
8. Heating and ventilation control
9. Roof heater fan (3 ---speeds)
10. Floor heater fan
3
2
9 10
1
2
8. 11. 1990
4
3
6
Note! The heater unit components on the roof are accessible
after removing the upper roof plate. Detach the roof plate as
follows:
--- open the roof hatch and unscrew the screws on the edge
of the hatch
--- unscrew the screws on the rear and front edge of the roof
(6 pcs)
--- unscrew the front gutter plate screws
--- remove the upper roof plate
Note! When fitting the roof plate, do not tighten the screws too
hard because the roof plate material (glass fibre) could be
damaged.
1128
