83. Air conditioner

Compressor

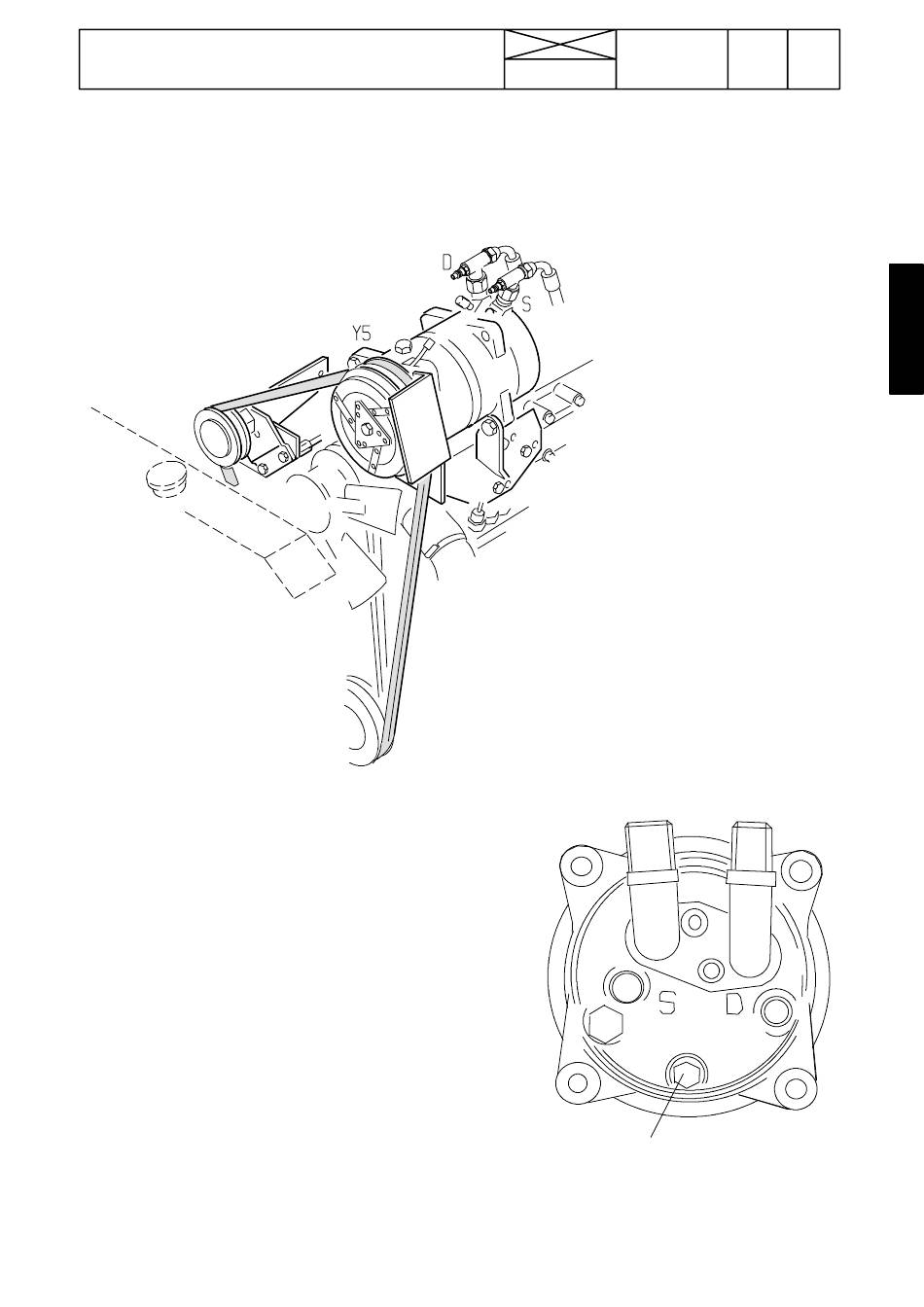

The service valves (D and S) are fitted on the pipe
connectors on air conditioners that have refrigerant
R134a as in figure below
If the compressor should be changed, contact an expert
who knows refrigerating systems.
A new compressor is filled with 2,0 dl oil in the factory.
Drain the oil in the new compressor. 1,6 dl oil must run
out. Pour the oil back to the compressor and fit the
plug. If the drained oil amount was not 1,6 dl, add or
reduce the oil volume to 1,6 dl (on account of the inter-
nal build ---in, all oil in the compressor does not run out).
Note! If the system is opened and refrigerant changed,
the compressor oil should also be changed. In this
case, fill the compressor with 2,0 dl oil.
Detach the new compressor protective caps very care-
fully so that the threads and connections do not
damage.
Tightening torques:
--- 3/4" connection on pressure side 24,5 ---29,5 Nm.
--- 7/8" connection on suction side 29,5 ---33,5 Nm.
Model
1. 1. 1994
6000-- 8950
1. 8. 2000
Valmet 6000---8400 tractors' compressor type:
Diesel Kiki model DKS 15 CH.
Specifications
Number of cylinders
Cyl. diam x stroke
Max. revs . . . . . . . . . . . . . . . . . .
Lubricating oil: Freol DS ---83P or Exxon (Esso)
2980 (R12) or ZXL 100 PG (DH ---PS) (Valtra UC
1300) if refrigerant R134a.
Oil volume: 200 cm
Magnetic clutch:
Voltage . . . . . . . . . . . . . . . . . . . .
Starting moment
Power consumption
Clutch clearance value
Draining/filling plug for lubricating oil.
Note! Do not open the plug, if the system is filled
with refrigerant. Compressor oil should be stored in a
closed container. If refrigerant is freon R12, the ser-
vice valves are fitted on the rear side of the compres-
sor (S and D in picture above).
1151
Code Page
831 9
D = Discharge
S = Suction
Y5 = magnetic clutch
. . . . . . . . . 6 pcs
. . . . . . . . . . . ø34 mm x 24 mm
7000 r/min
3
(2,0 dl)
12 V (DC)
. . . . . . . . . . . . 50 Nm
. . . . . . . . . 44 W (max)
. . . . . . . 0,3---0,6 mm
