8.

Connectors

8.1.

Under the antenna cap

You need to remove the antenna cap from the unit to access the CFast slot and the USB 2.0
interface.
−
A plug connector which meets the specific shock and vibration requirements is used for the
service USB interface. Exercise special care when removing and plugging in USB
connectors.
−
Exercise special care when removing and re-inserting a CFast card.
−
To remove the CFast card, carefully push on the card.
−
Use only CFast cards that have been approved by Advantech-DLoG.
NOTICE: Physical damage
Improper opening of the antenna cap can impair the function of the entire DLT-V4108 system
and in particular the Wi-Fi functionality.
The antenna cap may only remain open for the duration of the service work.
No objects or liquids may enter the opened DLT-V4108 during this.
Only when the antenna cap is properly closed again may operation be resumed; the protection
class/category is only ensured again after doing so.
8.1.1. Antenna cap opening/closing
Opening
−
Loosen the two screws of the antenna cap using Torx screwdriver.
−
Carefully lift up the antenna cap.

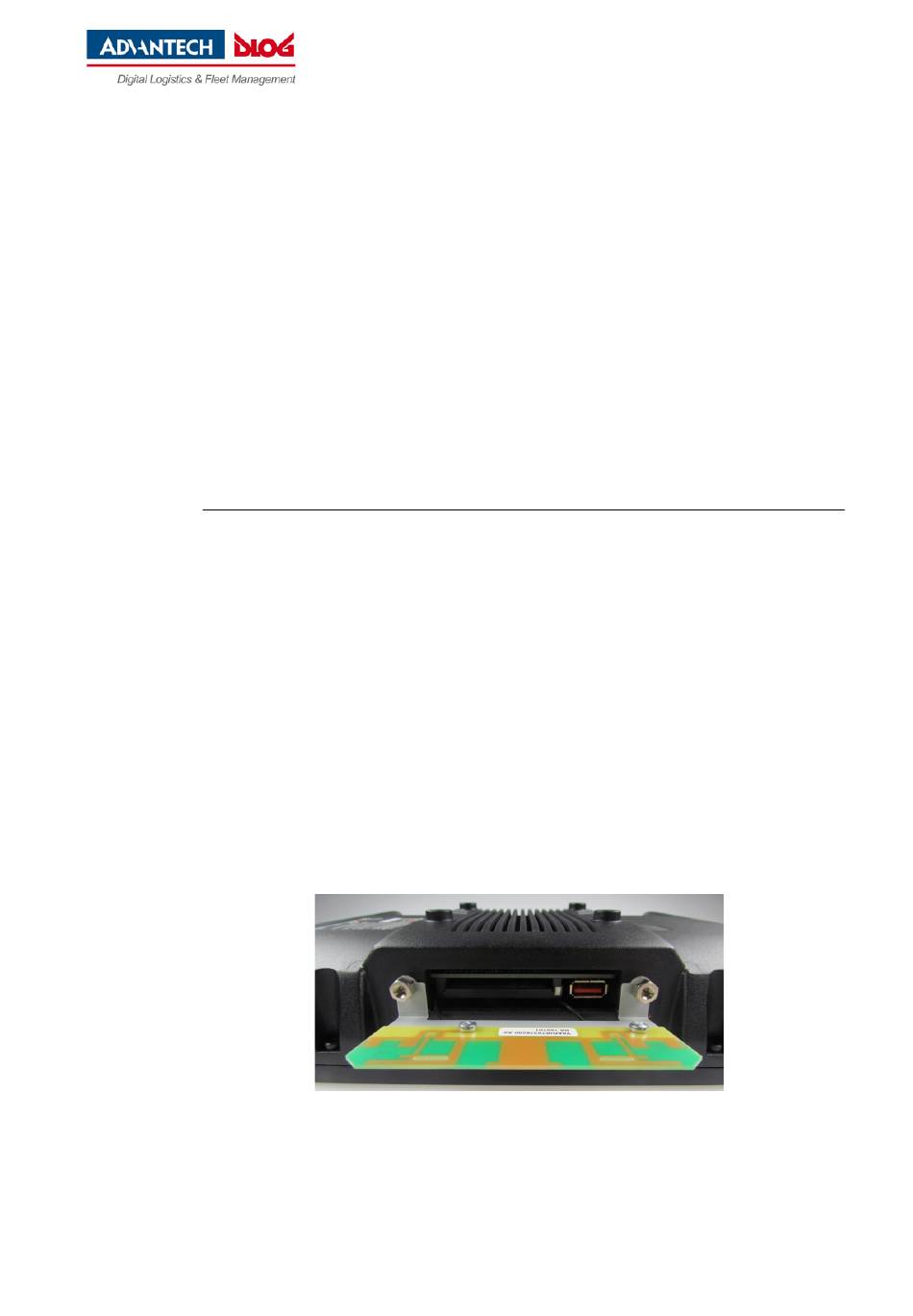

Fig. 8.1: Antenna cap opened, optional CFast Card inside

Closing
−
Place the antenna cap back onto the DLT-V4108.
−
The antenna cap seal must not be damaged; it must be seated correctly in the groove.
−
Tighten the two screws of the antenna cap again (0.5 Nm torque).
