13.

CAN Interface configuration

The VCIL demonstration application demonstrate the usage of MRM VCIL (Vehicle
Communication Interface Layer) API which allow user to access vehicle protocol easily.
NOTE
Before enable VCIL (Vehicle Communication Interface Layer) function, please connect
external HD Cable first. We recommend using HD Cable which already approved by Advantech-
DLoG
13.1.

Port selection

When first open VCIL demonstration app, you will see a port selection windows as following.
Please select the VCIL port path and press Connect button.
VCIL port path in different platforms have different nodes. The common path at Window is
COM13 (the third USB Serial Port)

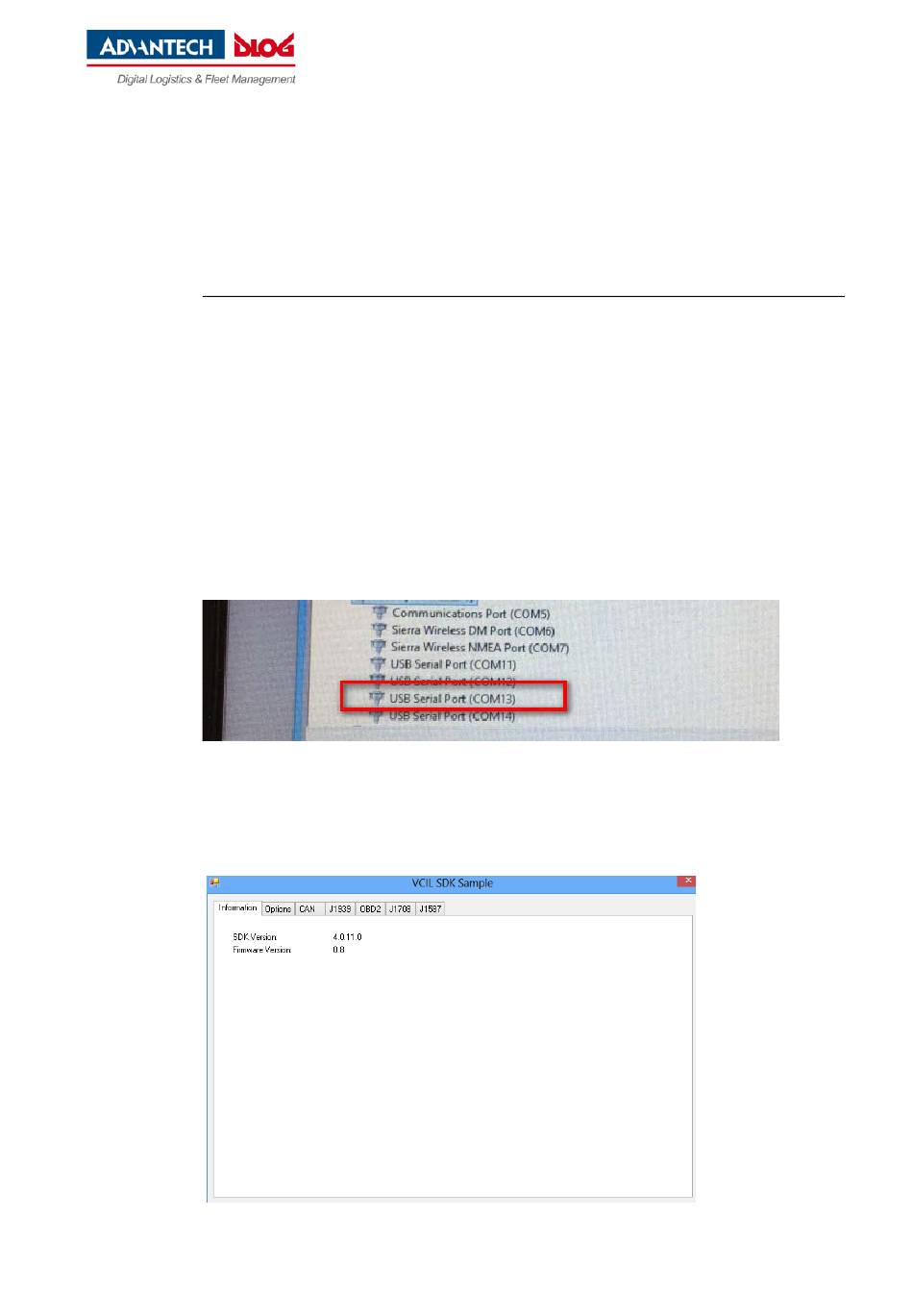

Fig. 13.1: Port Selection

13.2.

Information

In this page, the demo application shows the current status and basic information.

Fig. 13.2: VCIL current status and basic information
