− Carefully disconnect the plug with two fingers.
− Keep hold of the keyboard, making sure not to damage and not to pull out the connection
cables.

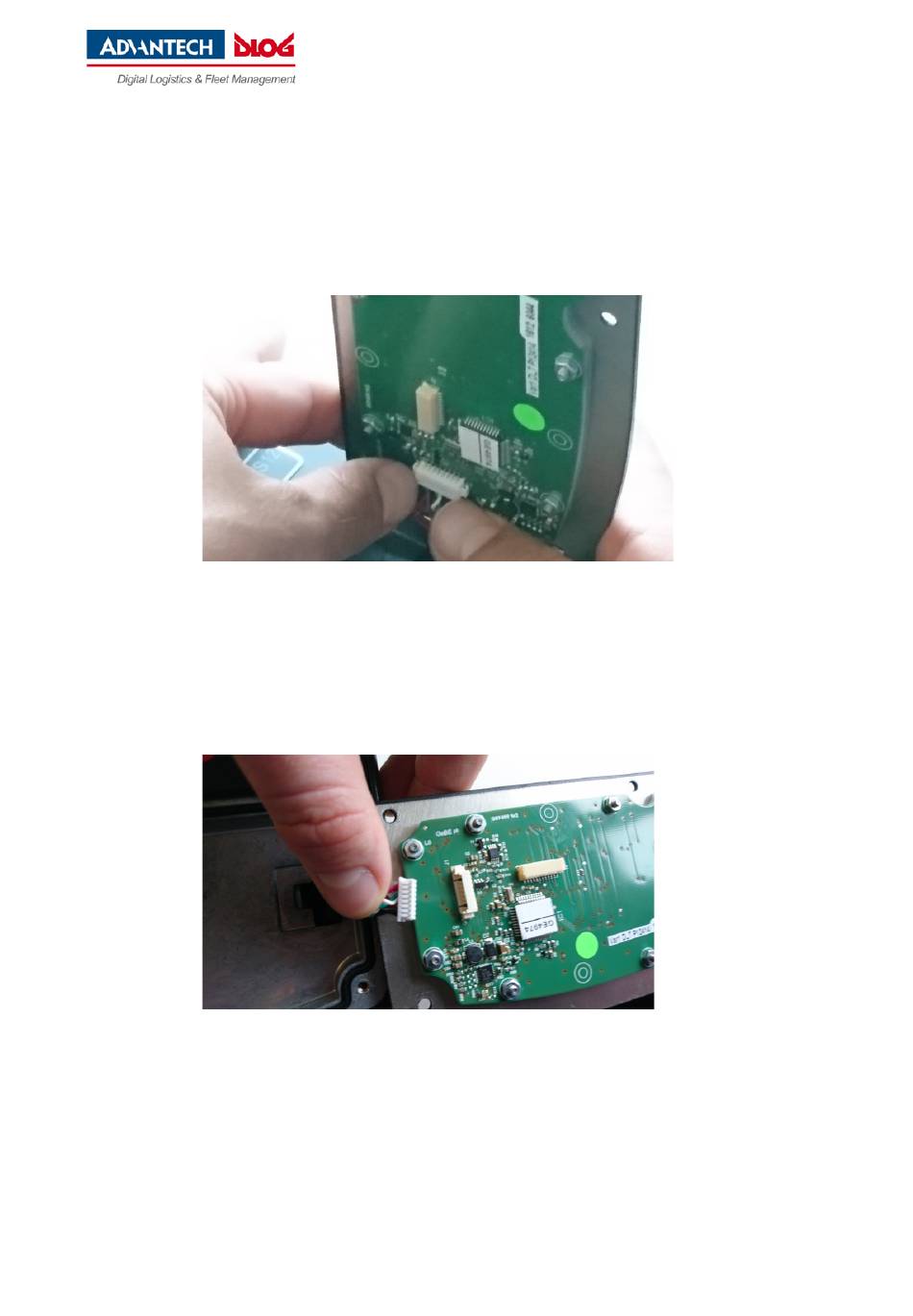

Fig. 18.4: Carefully disconnect the plug with two fingers

18.1.2. Attach the integrated keyboard
− Connect the new keyboard as shown in this figure (check correct position of pins):

Fig. 18.5: DLT-V4108 connection plug integrated keyboard

− Reuse the eight screws.
− Use an Allen key (size 2) to tighten the eight mounting screws of the integrated keyboard.
Tightening torque:
0.196 Nm +/- 0.049 equal to 2 +/- 0.5 kgf-cm
