8.2.1.
High density Connector (optional)

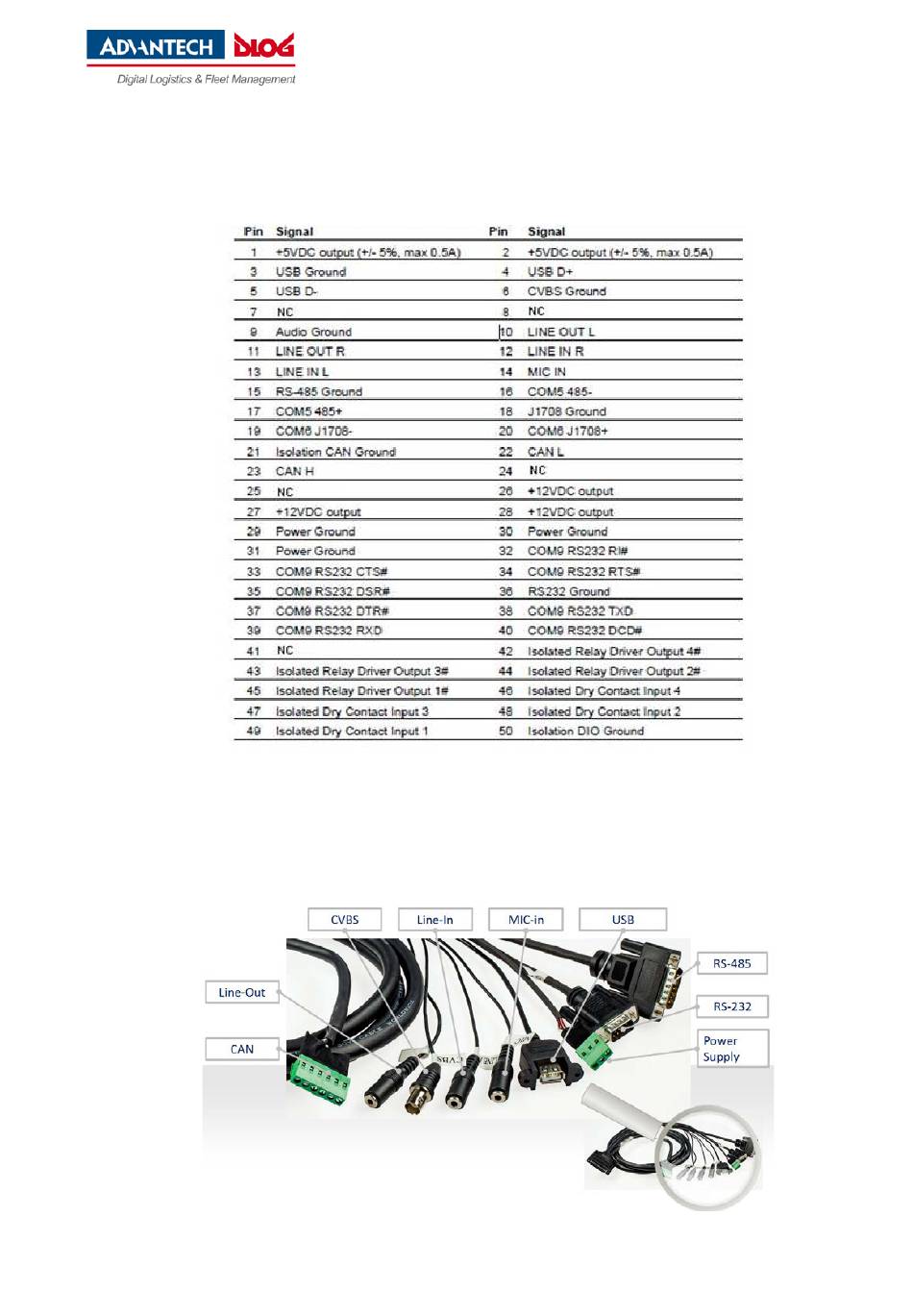

Fig. 8.3: Pin assignment HD-Connector

8.2.2.
HD cable (optional)

Fig. 8.4: HD cable

26 / 81
DLT-V4108 Manual, V01 Prelim
Connectors
