Integrated Low Profile Wi-Fi Antenna; Fig. 12.1: Integrated Low Profile Wi-Fi Antenna - Advantech DLoG DLT-V4108 Manual

12.2.

Integrated low profile Wi-Fi antenna

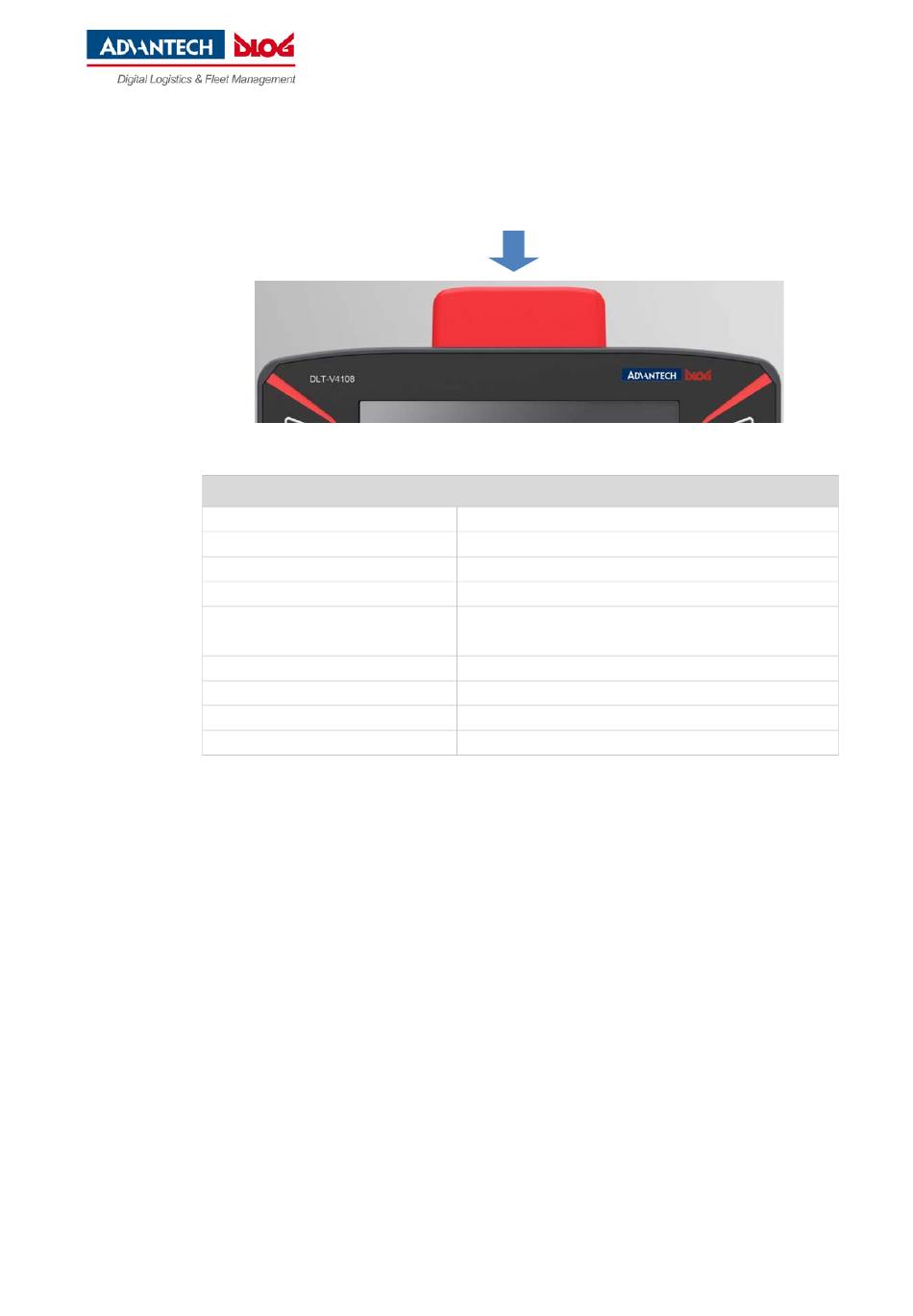

Fig. 12.1: Integrated low profile Wi-Fi antenna

Technical data
Application
Number of antennas
Type
Directionality
Frequency range
Antenna gain
Impedance
Polarization
Maximum transmitting power
38 / 81
Wi-Fi IEEE 802.11 a/b/g/n Dual Band Diversity
2
Omnidirectional antenna
Optimized for the DLT-V4108 housing
Band 1: 2400 to 2485 MHz
Band 2: 5150 to 5875 MHz
Max. 5 dBi (without loss through the cable)
50 Ω
Vertical/Horizontal
100 mW / 20 dBm
DLT-V4108 Manual, V01 Prelim
