External 3 In 1 Antenna, Remote (Optional); Fig. 12.3: External 3 In 1 Antenna (Optional) - Advantech DLoG DLT-V4108 Manual

12.4.

External 3 in 1 antenna, remote (optional)

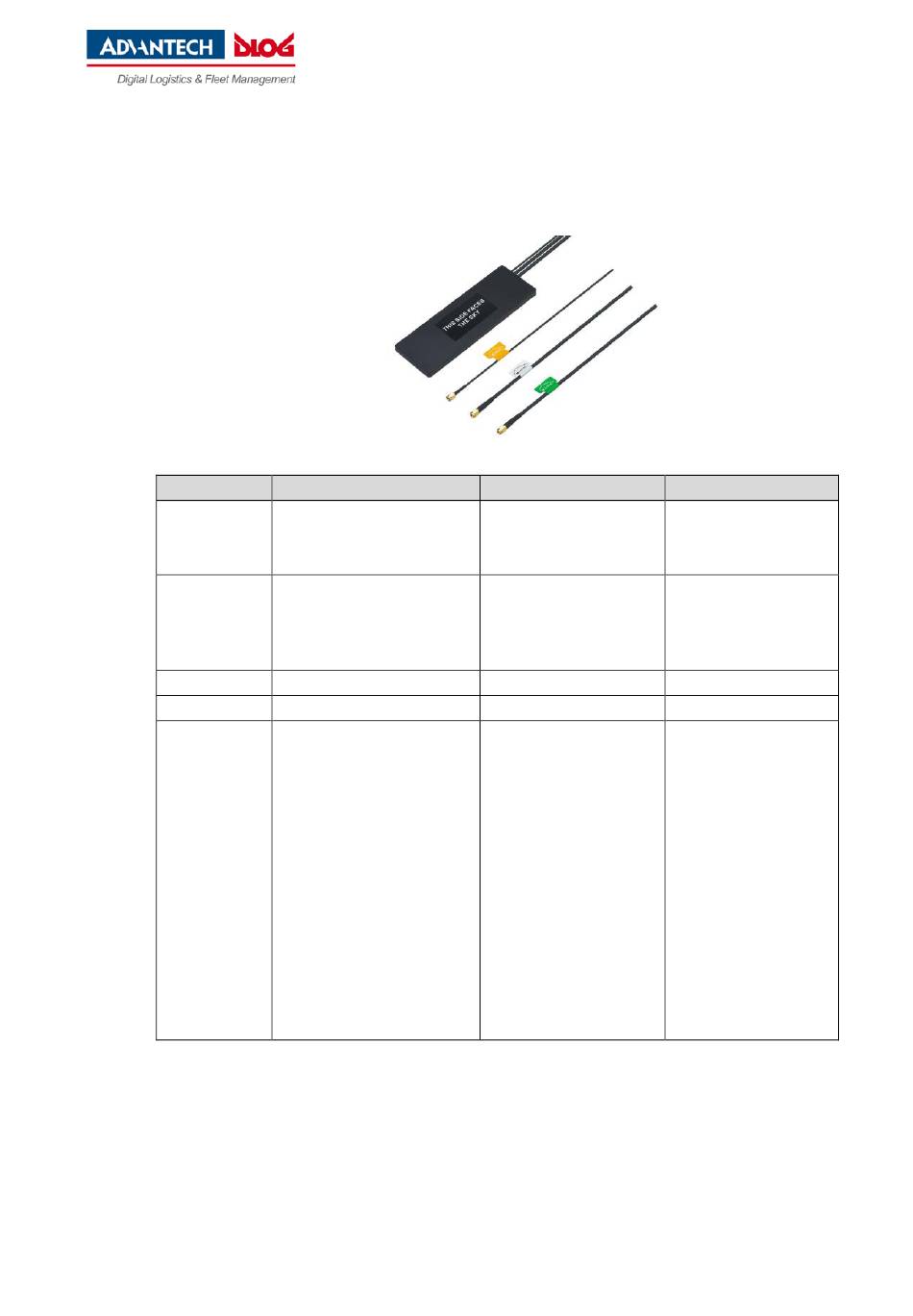

Fig. 12.3: External 3 in 1 antenna (optional)

Parameter
Frequency
Range
Gain
VSWR
Impedance
Efficiency
40 / 81
GPS-GLONASS Antenna
1,575.42±10MHz
1,602±8MHz
1575.42MHz:1.3dBi typ
@ Zenith
1602MHz:2.9dBi typ @
Zenith
2.0 Max
50Ω
-
DLT-V4108 Manual, V01 Prelim
Cellular Antenna
700-960MHz
1710-2170MHz
2500-2690MHz
Listed below
3.0 Max
50Ω
≧ 70% @ 700MHz
≧ 60% @ 750MHz
≧ 50% @ 824MHz
≧ 50% @ 880MHz
≧ 40% @ 890MHz
≧ 25% @ 960MHz
≧ 50% @ 1710MHz
≧ 50% @ 1880MHz
≧ 50% @ 1990MHz
≧ 45% @ 2110MHz
≧ 45% @ 2170MHz
≧ 30% @ 2500MHz
≧ 15% @ 2690MHz
Wireless options configuration
Wi-Fi Antenna
2400-2484MHz
5150-5850MHz
Listed below
2.0 Max
50Ω
≧ 35% @ 2450MHz
≧ 35% @ 5250MHz
≧ 35% @ 5650MHz
