To do...
Display the RMON history
control entry and history
sampling information
Display RMON alarm
configuration information
Display RMON prialarm
configuration information
Display RMON events
configuration information
Display log information for
the specified or all event
entries

Ethernet statistics group configuration example

Network requirements
As shown in
Server through Ethernet cables.
Configure the RMON Ethernet statistics table to gather incoming packet statistics for Ethernet 1/0/1, so
the administrator can view the incoming traffic status of the interface at any time.

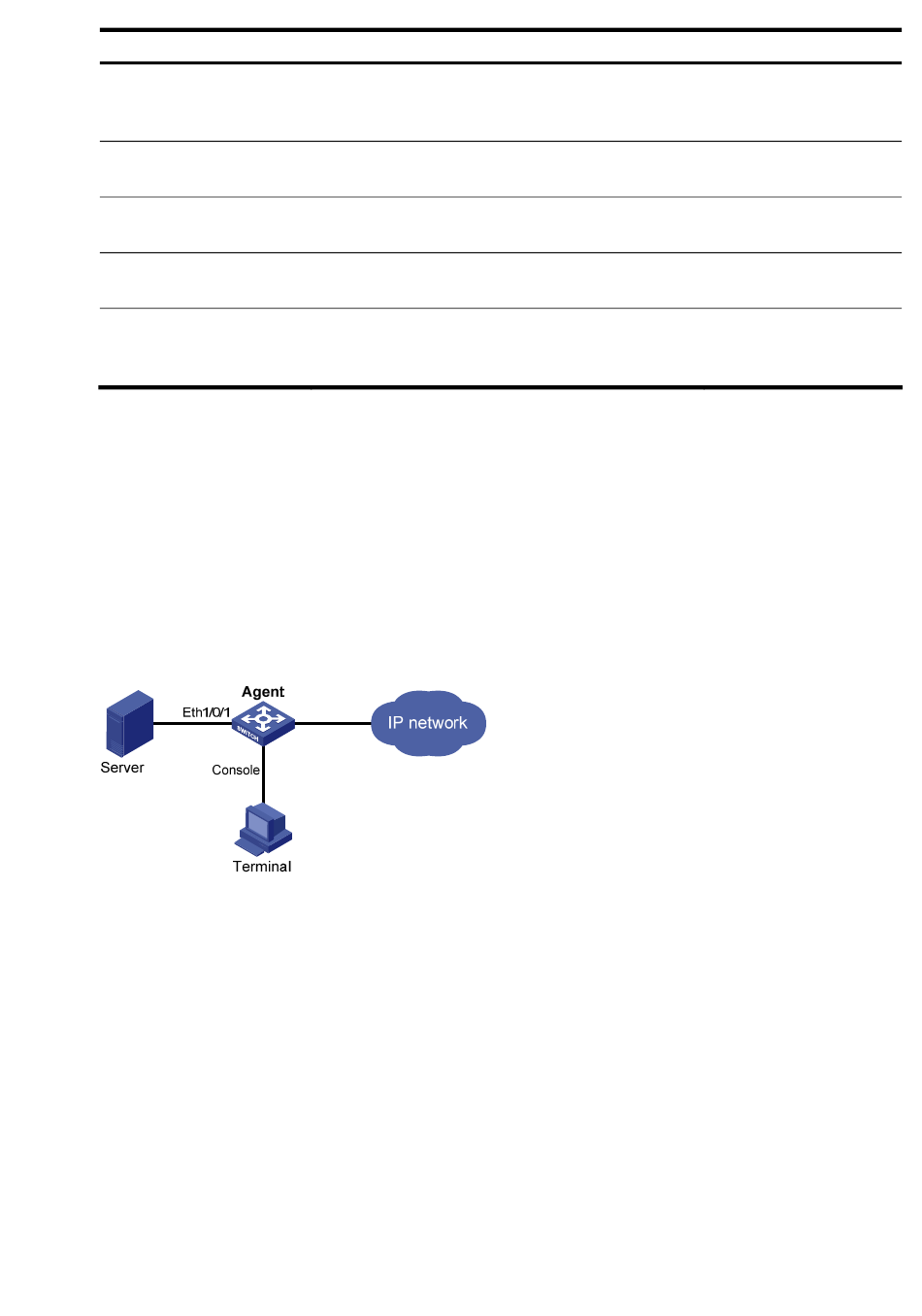

Figure 29 Network diagram
Configuration procedure
# Configure RMON to gather statistics for interface Ethernet 1/0/1.
<Sysname> system-view
[Sysname] interface ethernet 1/0/1
[Sysname-Ethernet1/0/1] rmon statistics 1 owner user1
The system gathers incoming packet statistics for Ethernet 1/0/1. To view the statistics:
• Execute the display command.
<Sysname> display rmon statistics ethernet 1/0/1
EtherStatsEntry 1 owned by user1-rmon is VALID.
Interface : Ethernet1/0/1<ifIndex.3>
etherStatsOctets
etherStatsBroadcastPkts
etherStatsUndersizePkts
Use the command...
display rmon history [ interface-type
interface-number ] [ | { begin | exclude | include }
regular-expression ]
display rmon alarm [ entry-number ] [ | { begin |
exclude | include } regular-expression ]
display rmon prialarm [ entry-number ] [ | { begin |
exclude | include } regular-expression ]
display rmon event [ entry-number ] [ | { begin |
exclude | include } regular-expression ]
display rmon eventlog [ entry-number ] [ | { begin |
exclude | include } regular-expression ]
Figure 29, Agent is connected to a configuration terminal through its console port and to
: 21657
: 56
: 0
, etherStatsPkts
, etherStatsMulticastPkts : 34
, etherStatsOversizePkts
79
Remarks
Available in any view
Available in any view
Available in any view
Available in any view
Available in any view
: 307
: 0
