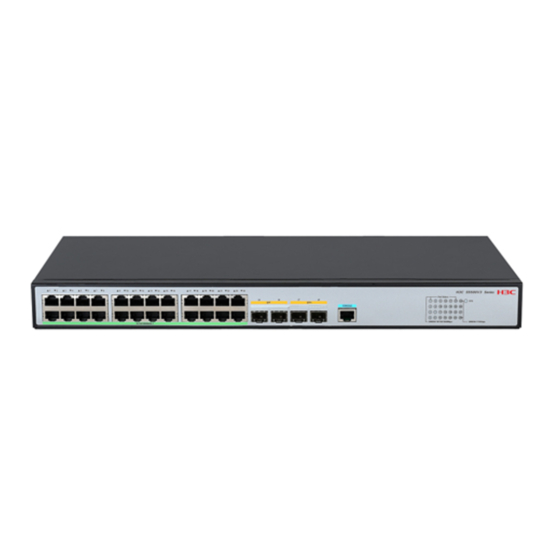

H3C S5560S-SI Series Installation Manual
Hide thumbs
Also See for S5560S-SI Series:
- Installation manual (137 pages) ,
- Configuration manual (47 pages) ,
- Troubleshooting manual (37 pages)
Table of Contents
Advertisement
Contents
Preparing for installation ················································································ 1
Safety recommendations ··································································································································· 4
Examining the installation environment ············································································································· 4
Cleanliness ················································································································································· 6
Corrosive gas limit ······································································································································ 7
Examining the installation site ···························································································································· 7
Checking power distribution or power supply environment ················································································ 8
Laser safety························································································································································ 9
Installation tools ················································································································································· 9
Installing the switch ······················································································ 10
Installing the switch in a 19-inch rack··············································································································· 11
Mounting brackets ···································································································································· 11
Attaching the mounting brackets to the switch ························································································· 13
Rack-mounting the switch ························································································································ 15
Mounting the switch on a workbench ··············································································································· 17
Mounting the switch on a wall ·························································································································· 18
Grounding the switch ······································································································································· 20
Grounding the switch with a grounding strip ···························································································· 20
Grounding the switch with a grounding conductor buried in the earth ground ········································· 21
Grounding the switch by using the PE wire of the AC power cord ··························································· 22
Verifying the connection after grounding the switch················································································· 22
Installing and removing a power supply ··········································································································· 23
Installing a power supply ·························································································································· 23
Removing a power supply ························································································································ 24
Connecting the power cord ······························································································································ 25
Connecting the AC power cord for the fixed AC power supply ································································ 26
Connecting the DC power cord for the fixed DC power supply ································································ 26
Connecting the power cord for a CA-70A12 or PSR75-12A power supply ·············································· 27
Connecting the DC power cord for a PSR150-D1 power supply ····························································· 28
Verifying the installation ··································································································································· 29
Accessing the switch for the first time ·························································· 30
Managing the switch from the GUI ··················································································································· 30
Accessing the GUI ··································································································································· 30
Changing the default login password ······································································································· 30
Creating user accounts ···························································································································· 30
Managing the switch from the CLI···················································································································· 31
Connecting the switch to a configuration terminal ···················································································· 31
Connecting a console cable ····················································································································· 32
Connecting a micro USB console cable ··································································································· 35
Setting terminal parameters ····················································································································· 36
Starting the switch ···································································································································· 37
Setting up an IRF fabric ··············································································· 38
IRF fabric setup flowchart ································································································································ 39
Planning IRF fabric setup ································································································································· 40
Planning IRF fabric size and the installation site ······················································································ 40
Identifying the master switch and planning IRF member IDs ··································································· 40
Planning IRF topology and connections··································································································· 40
Identifying IRF physical ports on the member switches ··········································································· 41
Planning the cabling scheme ··················································································································· 43
Configuring basic IRF settings ························································································································· 44
Connecting the IRF physical ports ··················································································································· 44
Verifying the IRF fabric setup ··························································································································· 44
i
Advertisement
Table of Contents
Related Manuals for H3C S5560S-SI Series
Summary of Contents for H3C S5560S-SI Series
-
Page 1: Table Of Contents
Contents Preparing for installation ················································································ 1 Safety recommendations ··································································································································· 4 Examining the installation environment ············································································································· 4 Cleanliness ················································································································································· 6 Corrosive gas limit ······································································································································ 7 Examining the installation site ···························································································································· 7 Checking power distribution or power supply environment ················································································ 8 Laser safety························································································································································ 9 Installation tools ·················································································································································... - Page 2 Maintenance and troubleshooting ································································ 46 Fixed power supply failure ······························································································································· 46 Input failure on an AC-powered switch ···································································································· 46 Input failure on a DC-powered switch ······································································································ 47 Input failure on a DC and AC-powered switch ························································································· 47 Removable power supply failure ······················································································································ 48 Fan tray failure ·················································································································································...
-
Page 3: Preparing For Installation
Preparing for installation This document provides an installation guide for the following switch series: • S5560S-SI switch series • S5130S-SI switch series • S5130S-LI switch series • S5120V2-SI switch series • S5120V2-LI switch series • S5110V2-SI switch series • S5000V3-EI switch series •... - Page 4 Switch series Model Product code (PID) S5130S-28S-HPWR-LI LS-5130S-28S-HPWR-LI S5130S-52S-PWR-LI LS-5130S-52S-PWR-LI S5120V2-10P-SI LS-5120V2-10P-SI S5120V2-SI Non-PoE S5120V2-28P-SI LS-5120V2-28P-SI switch series models S5120V2-52P-SI LS-5120V2-52P-SI LS-5120V2-10P-LI S5120V2-10P-LI LS-5120V2-10P-LI-GL LS-5120V2-20P-LI S5120V2-20P-LI LS-5120V2-20P-LI-GL Non-PoE models LS-5120V2-28P-LI S5120V2-28P-LI LS-5120V2-28P-LI-GL LS-5120V2-52P-LI S5120V2-52P-LI LS-5120V2-52P-LI-GL S5120V2-LI LS-5120V2-10P-PWR-LI switch series S5120V2-10P-PWR-LI LS-5120V2-10P-PWR-LI-GL LS-5120V2-28P-PWR-LI S5120V2-28P-PWR-LI...
- Page 5 Switch series Model Product code (PID) switch series models LS-5008PV5-EI-H1 S5008PV5-EI-S LS-5008PV5-EI-S-GL S5016PV5-EI LS-5016PV5-EI S5016PV5-EI-S LS-5016PV5-EI-S-GL LS-5024PV5-EI S5024PV5-EI LS-5024PV5-EI-GL S5024PV5-EI-S LS-5024PV5-EI-S-GL LS-5048PV5-EI S5048PV5-EI LS-5048PV5-EI-GL LS-5008PV5-EI-HPWR S5008PV5-EI-HPWR LS-5008PV5-EI-HPWR-H1 LS-5008PV5-EI-HPWR-GL S5008PV5-EI-HPWR-S LS-5008PV5-EI-HPWR-S-GL S5016PV5-EI-PWR-S LS-5016PV5-EI-PWR-S-GL PoE models S5024PV5-EI-PWR LS-5024PV5-EI-PWR S5024PV5-EI-PWR-S LS-5024PV5-EI-PWR-S-GL LS-5024PV5-EI-HPWR S5024PV5-EI-HPWR LS-5024PV5-EI-HPWR-GL LS-5048PV5-EI-PWR S5048PV5-EI-PWR...
-
Page 6: Safety Recommendations
Switch series Model Product code (PID) LS-3100V3-28TP-SI S3100V3-28TP-SI LS-3100V3-28TP-SI-H1 LS-3100V3-52TP-SI S3100V3-52TP-SI LS-3100V3-52TP-SI-H1 LS-3100V3-10TP-PWR-SI S3100V3-10TP-PWR-SI LS-3100V3-10TP-PWR-SI-H1 LS-3100V3-20TP-PWR-SI PoE models S3100V3-20TP-PWR-SI LS-3100V3-20TP-PWR-SI-H1 LS-3100V3-28TP-PWR-SI S3100V3-28TP-PWR-SI LS-3100V3-28TP-PWR-SI-H1 NOTE: Switches of the same model but different PIDs might differ in hardware and software features. You can view the PID of a switch on the label located on its rear panel or top panel. - Page 7 Item Requirements • Ensure a minimum clearance of 10 cm (3.94 in) around the chassis. • Do not install the device near a heat source, for example, a stove or heater. • Ensure air ventilation in the installation environment. • Do not block the ventilation holes in the device or power adapter.
-
Page 8: Cleanliness
Item Requirements outdoors on an optical distribution frame (ODF) or fiber splice enclosure. CAUTION: Do not run an Ethernet cable and power cord in parallel. Cable routing • Route different types of cables separately. • Keep power cords a minimum of 5 cm (1.97 in) away from other cables. -
Page 9: Corrosive Gas Limit
Corrosive gas limit Corrosive gases can accelerate corrosion and aging of metal components. Make sure the corrosive gases do not exceed the concentration limits as shown in Table Table 4 Corrosive gas concentration limits Average concentration (mg/m Maximum concentration (mg/m 0.01 0.03 0.05... -
Page 10: Checking Power Distribution Or Power Supply Environment
Category Definition Example environment controlled. with air conditioners, outdoor air • conditioner cabinets, and heat Completely enclosed or shielded exchanger cabinets. indoor environments. • Simple equipment rooms, ordinary Indoor environments where houses, garages, corridors, and temperature and humidity are partially A2: indoor partially direct ventilation cabinets far from controlled. -
Page 11: Laser Safety
Item Requirements For the operating voltage range, see S5130S-EI Switch Series Hardware Information and Specifications. • If the external power supply system provides an AC power outlet, use a country-specific AC power cord. Make sure the PE wire of the AC power supply is grounded reliably. -
Page 12: Installing The Switch
CAUTION: Keep the tamper-proof seal on a mounting screw on the chassis cover intact, and if you want to open the chassis, contact H3C for permission. Otherwise, H3C shall not be liable for any consequence. Figure 1 Hardware installation flow... -
Page 13: Installing The Switch In A 19-Inch Rack
Installing the switch in a 19-inch rack Mounting brackets Table 8 describes the mounting brackets applicable to the switch. Table 8 Mounting brackets applicable to the switch Applicable mounting Switch model Views brackets S5560S-28P-SI S5560S-52P-SI S5560S-28S-SI S5560S-52S-SI S5130S-28S-SI S5130S-28S-SI-MM S5130S-28S-SI-SM S5130S-52S-SI S5130S-28S-LI S5130S-28S-LI-MM... - Page 14 Applicable mounting Switch model Views brackets S3100V3-28TP-SI S3100V3-52TP-SI S3100V3-28TP-PWR-SI S5560S-28F-SI S5560S-28DP-SI S5500V3-28S-SI S5500V3-28PS-SI S5500V3-54S-SI S5500V3-54PS-SI Mounting brackets B (provided) See B in Figure S5500V3-36F-SI S5500V3-28S-DP-SI S5500V3-54S-DP-SI S5500V3-36F-DP-SI S5500V3-54F-DP-SI S5130S-28F-SI S5120V2-20P-LI S5120V2-10P-PWR-LI S5120V2-12TP-HPWR-LI S5008PV5-EI-HPWR S5008PV5-EI-HPWR-S Mounting brackets C with S5016PV3-EI product code S5016PV5-EI See C in Figure...
-
Page 15: Attaching The Mounting Brackets To The Switch
Figure 2 Mounting brackets (1) Screw hole for attaching the bracket to the switch (2 ) Screw hole for attaching the bracket to the rack post Attaching the mounting brackets to the switch Determine the installation position for the mounting brackets. The S5560S-28F-SI, S5560S-28DP-SI, S5500V3-28S-DP-SI, S5500V3-54S-DP-SI, ... - Page 16 Figure 3 Attaching mounting bracket A (S5120V2-28P-HPWR-LI switch) Figure 4 Attaching mounting bracket B (mounting position near the port side, S5560S-28F-SI switch) Figure 5 Attaching mounting bracket B (mounting position near the power supply side, S5560S-28F-SI switch)
-
Page 17: Rack-Mounting The Switch
Figure 6 Attaching mounting bracket C (S5120V2-20P-LI switch) Figure 7 Attaching mounting bracket D (S5120V2-10P-LI switch) Rack-mounting the switch This task requires two people. To mount the switch in the rack: Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded. Verify that the mounting brackets have been securely attached to the switch chassis. - Page 18 Figure 8 Mounting the switch in a rack (S5120V2-28P-HPWR-LI switch) Figure 9 Mounting the switch in a rack (mounting brackets installed near the port side, S5560S-28F-SI switch) Figure 10 Mounting the switch in a rack (mounting brackets installed near the power supply side, S5560S-28F-SI switch)
-
Page 19: Mounting The Switch On A Workbench
Figure 11 Mounting the switch in a rack (S5120V2-10P-PWR-LI switch) Figure 12 Mounting the switch in a rack (S5120V2-10P-LI) Mounting the switch on a workbench IMPORTANT: • Ensure 10 cm (3.9 in) of clearance around the chassis for heat dissipation. •... -
Page 20: Mounting The Switch On A Wall
Mounting the switch on a wall CAUTION: • Before drilling holes in a wall, make sure no electrical lines exist in the wall. • Leave a minimum clearance of 10 mm (0.39 in) around the chassis for heat dissipation. The S5120V2-SI, S5120V2-LI, S5000V3-EI, S5000V5-EI, and S3100V3-SI switch series support wall mounting. - Page 21 Figure 14 Installing the switch on a wall (1) Drill two holes with a diameter of 6 mm (0.24 in) and a depth of 25 mm (0.98 in) at the marked locations. Hammer the screw anchors into the wall and use a Phillips screwdriver to fasten the screw into the screw anchor.
-
Page 22: Grounding The Switch
WARNING! Correctly connecting the switch grounding cable is crucial to lightning protection, ESD, and EMI protection. For information about lightning protection, see H3C Network Devices Lightning Protection Guide. To protect against the following types of problems, use a grounding cable to connect the device to the earthing facility at the installation site: •... -
Page 23: Grounding The Switch With A Grounding Conductor Buried In The Earth Ground
Figure 17 Attaching the grounding cable to the grounding hole of the switch (S5120V2-28P-HPWR-LI switch) (1) Grounding screw (2) Ring terminal (3) Grounding sign (4) Grounding hole (5) Grounding cable Connect the other end of the grounding cable to the grounding strip. a. -
Page 24: Grounding The Switch By Using The Pe Wire Of The Ac Power Cord
In cold areas, bury the grounding conductor below the frozen soil layer. In areas with thin soil or rocky gravel, determine the depth for burying the grounding conductor based on the actual condition. If zinc-coated steel is used, the following dimensions requirements must be met: •... -
Page 25: Installing And Removing A Power Supply
For information about resistance measurement, see H3C Network Devices Lightning Protection Guide. Installing and removing a power supply... -
Page 26: Removing A Power Supply
Figure 22 Removing the filler panel Orient the power supply with the lettering on it upright. Grasp the handle of the power supply with one hand and support its bottom with the other, and slide the power supply slowly into the slot along the guide rails. -
Page 27: Connecting The Power Cord
Grasp the handle of the power supply with one hand and pull the module part way out. Support the module bottom with the other hand, and pull the power supply slowly out of the slot along the guide rails. Place the removed power supply on an antistatic mat or put it into its original packaging bag. If you are not to install a new power supply, install a filler panel in the slot. -
Page 28: Connecting The Ac Power Cord For The Fixed Ac Power Supply
Connecting the DC power cord for the fixed DC power supply CAUTION: To connect to an H3C recommended RPS, use a power cord compatible with the RPS. To connect the DC power cord for the fixed DC power supply: Correctly orient the DC power cord connector and insert the connector into the power... -
Page 29: Connecting The Power Cord For A Ca-70A12 Or Psr75-12A Power Supply
If you orient the DC power cord connector upside down, you cannot insert the plug into the power receptacle. Use a flat-head screwdriver to fasten the screws on the power cord connector, as shown in Figure Connect the other end of the power cord to an RPS. Figure 26 Connecting the DC power cord for the fixed DC power supply (S5120V2-28P-HPWR-LI switch) Connecting the power cord for a CA-70A12 or PSR75-12A... -
Page 30: Connecting The Dc Power Cord For A Psr150-D1 Power Supply
To ensure correct connections, identify the positive and negative marks on the power wires before connecting them. • To connect the power cord to an H3C RPS, use a power cord matching the RPS. To connect the DC power cord for a PSR150-D1 power supply: Wear an ESD wrist strap. -
Page 31: Verifying The Installation
Connect the other end of the DC power cord to a –48 VDC power source in the equipment room or an external RPS. Figure 29 Connecting the DC power cord for a PSR150-D1 power supply Verifying the installation After you complete the installation, verify the following items: •... -
Page 32: Accessing The Switch For The First Time
Accessing the switch for the first time You can use the following methods to access and manage the switch for the first time: • Managing the switch from the GUI • Managing the switch from the CLI Managing the switch from the GUI Only the S5000V3-EI switch series and S5000V5-EI switch series (except the LS-5008PV5-EI and LS-5008PV5-EI-HPWR switches) support GUI management. -
Page 33: Managing The Switch From The Cli
Micro USB connector connection The signal pinout for the RJ-45 connector of a serial console cable varies by vendor. To avoid abnormal configuration terminal display, use a serial console cable provided by H3C. For more information, see Table 12. To prepare a serial console cable yourself, make sure the signal pinout for... -
Page 34: Connecting A Console Cable
Table 12 Console cable views Product code for the Console cable type Console cable view recommended H3C console cable DB9-to-RJ45 console cable 04042967 USB-to-RJ45 console cable 0404A1EE Micro USB console cable User supplied, Connecting a console cable Connecting a DB9-to-RJ45 console cable... - Page 35 Click the following link, or copy it to the address bar on your browser and download the USB-to-RJ45 console driver. http://www.h3c.com/en/home/USB_to_RJ45_Console/ View the TXT file Read me in the Windows folder to check whether the Windows system of the configuration terminal supports the driver.
- Page 36 Figure 32 Driver installation wizard Click Finish after the drive installation is completed. Figure 33 Finishing the driver installation Connect the standard USB connector of the cable to the USB port of the configuration terminal.
-
Page 37: Connecting A Micro Usb Console Cable
Connect the micro USB connector to the micro USB console port on the switch. Click the following link, or copy it to the address bar on the browser to download the USB console driver. http://www.h3c.com/en/home/USB_Console/ Select a driver program according to the operating system you use: XR21V1410_XR21B1411_Windows_Ver1840_x86_Installer.EXE—32-bit operating ... -
Page 38: Setting Terminal Parameters
Figure 35 Software Installation Click Finish. Figure 36 Completing the device driver installation wizard Setting terminal parameters To configure and manage the switch through the console port, you must run a terminal emulator program, such as TeraTermPro, on your configuration terminal. You can use the emulator program to... -
Page 39: Starting The Switch
connect a network device, a Telnet site, or an SSH site. For more information about the terminal emulator programs, see the user guides for these programs. The following are the required terminal settings: • Bits per second—9,600. • Data bits—8. •... -
Page 40: Setting Up An Irf Fabric
The LS-5008PV5-EI and LS-5008PV5-EI-HPWR switches do not support IRF, so this section is not applicable to the LS-5008PV5-EI and LS-5008PV5-EI-HPWR switches. You can use H3C IRF technology to connect and virtualize multiple switches into a large virtual switch called an "IRF fabric" for flattened network topology, and high availability, scalability, and manageability. -
Page 41: Irf Fabric Setup Flowchart
IRF fabric setup flowchart Figure 37 IRF fabric setup flowchart Start Plan IRF fabric setup Install IRF member switches Connect the grounding cables and power cords Power on the switches Configure basic IRF settings Connect the physical IRF ports Subordinate switches reboot and the IRF fabric is automatically established To set up an IRF fabric:... -
Page 42: Planning Irf Fabric Setup
Step Description Connect IRF physical ports on switches. For long-distance connection, use SFP/SFP+ transceiver modules and optical fibers. For short-distance connection, use twisted-pair cables or Connect the IRF physical ports. SFP/SFP+ cables. All switches except the master switch automatically reboot, and the IRF fabric is established. -
Page 43: Identifying Irf Physical Ports On The Member Switches
NOTE: The following figures use the SFP+ ports on S5120V2-28P-HPWR-LI switches as an example. For the ports that can be used for IRF connections, see Table Figure 38 IRF fabric in daisy chain topology IRF-port1 IRF-port1 IRF-port2 IRF-port2 Figure 39 IRF fabric in ring topology IRF-port1 IRF-port2 IRF-port2... - Page 44 Table 15 IRF physical ports and use restrictions Chassis Candidate IRF physical ports Use restrictions S5560S-28S-SI S5130S-28S-SI S5130S-28S-SI-MM S5130S-28S-SI-SM The physical ports bound to an IRF port S5130S-28S-LI must operate at the same speed. S5130S-28S-LI-MM • 10/100/1000BASE-T autosensing S5130S-28S-LI-SM port—1 Gbps •...
-
Page 45: Planning The Cabling Scheme
If the IRF member switches are all in one equipment room, use twisted pair cables or SFP/SFP+ cables. The following subsections describe several H3C recommended IRF connection schemes by using SFP cables and SFP transceiver modules and fibers. All these schemes use a ring topology. -
Page 46: Configuring Basic Irf Settings
Prepare and connects cable based on the network topology and connection methods as planned. Wear an ESD wrist strap when you install transceiver modules and fibers. For the installation method and precautions, see H3C Transceiver Modules and Network Cables Installation Guide. Verifying the IRF fabric setup... - Page 47 Log in to the IRF fabric through the console port of any member switch. Create a Layer 3 interface, assign it an IP address, and make sure the IRF fabric and the remote network management station can reach each other. Use Telnet or SNMP to access the IRF fabric from the network management station.
-
Page 48: Maintenance And Troubleshooting
Maintenance and troubleshooting Fixed power supply failure The following switch series uses fixed power supplies: • S5560S-SI switch series (except the S5560S-28F-SI) • S5130S-SI switch series (except the S5130S-28F-SI) • S5130S-LI switch series • S5120V2-SI switch series • S5120V2-LI switch series •... -
Page 49: Input Failure On A Dc-Powered Switch
Verify that the operating temperature of the switch is in the acceptable range, and the power supply has good ventilation. Over-temperature can cause the power supply to stop working and enter protection state. If the issue persists, contact H3C Support. Input failure on a DC-powered switch Symptom The system status LED on the DC-powered switch is off. -
Page 50: Removable Power Supply Failure
Fan tray failure Symptom The system status LED on the switch indicates a fan tray failure. Solution When a fan tray issue occurs, contact H3C Support. Configuration terminal issues No display on the configuration terminal Symptom The configuration terminal does not have display when the switch is powered on. -
Page 51: Garbled Display On The Configuration Terminal
Stop bits—1. Flow control—None. Verify that the console cable is not faulty. If the issue persists, contact H3C Support. Garbled display on the configuration terminal Symptom The configuration terminal displays garbled text. Solution To resolve the issue: Verify that the following settings are configured for the terminal: Baud rate—9600.
