# Start UDP echo tests.
[DeviceA] nqa schedule admin test start-time now lifetime forever
# Stop UDP echo tests after a period of time.
[DeviceA] undo nqa schedule admin test
# Display the results of the last UDP echo test.
[DeviceA] display nqa result admin test
NQA entry (admin admin, tag test) test results:
Destination IP address: 10.2.2.2
Send operation times: 1
Min/Max/Average round trip time: 25/25/25
Square-Sum of round trip time: 625
Last succeeded probe time: 2011-01-22 10:36:17.9
Extended results:
Packet loss in test: 0%
Failures due to timeout: 0
Failures due to disconnect: 0
Failures due to no connection: 0
Failures due to sequence error: 0
Failures due to internal error: 0
Failures due to other errors: 0
Packet(s) arrived late: 0
# Display the history of UDP echo tests.
[DeviceA] display nqa history admin test
NQA entry (admin admin, tag test) history record(s):
Index
1

Voice test configuration example

Network requirements
As shown in
voice quality between Device A and Device B.

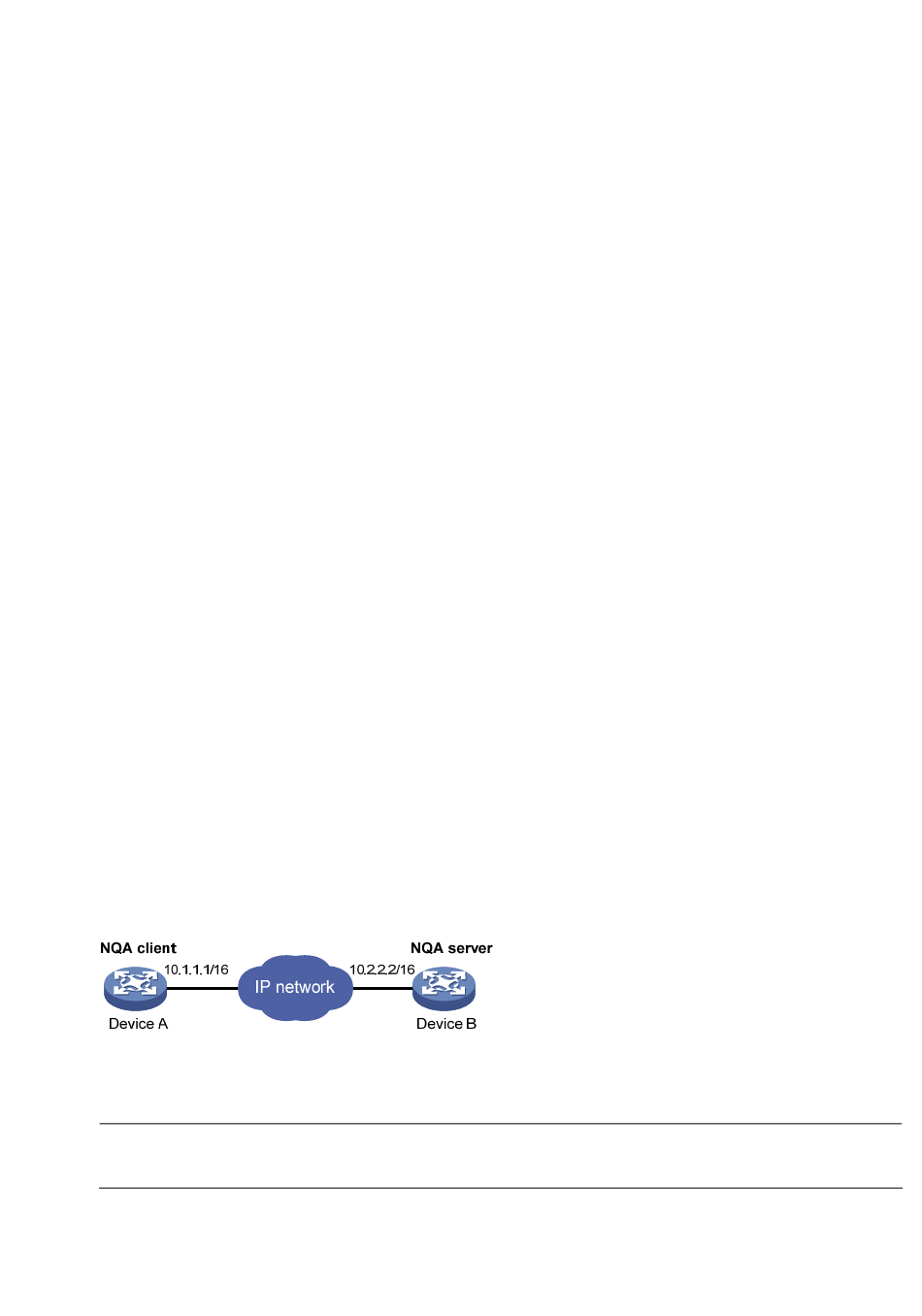

Figure 51 Network diagram
Configuration procedure
NOTE:
Before you make the configuration, make sure the devices can reach each other.
Configure Device B.
1.
Response Status
25 Succeeded
Figure 51, configure NQA voice tests to test the delay jitter of voice packet transmission and
Receive response times: 1
Time
2011-01-22 10:36:17.9
150
