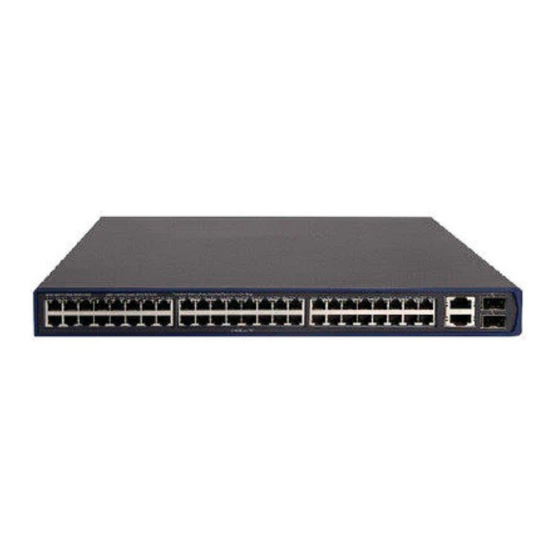

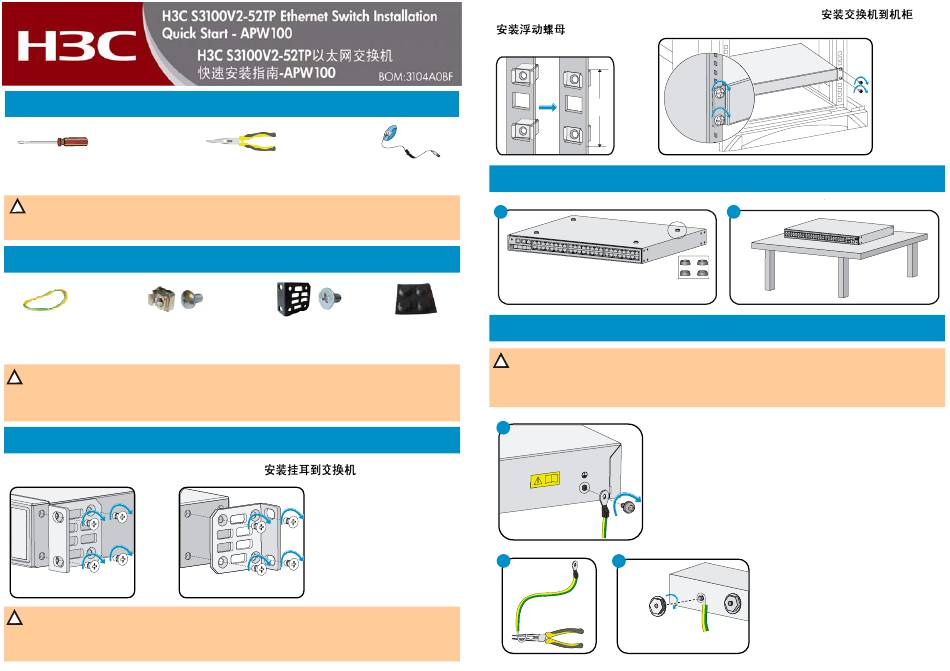

H3C S3100V2-52TP Installation, Quick Start

Tool list 工具参考
Flat-head screwdriver
一字螺丝刀
The installation tools are not provided with the switch. Prepare them by yourself.
交换机不随机提供安装工具，请用户根据实际安装需求自己准备安装工具。
Introduction to installation accessories 安装附件介绍
Grounding cable Cage nut and M6 screw (User
supplied) 浮动螺母和M6螺钉
地线
(请用户自备)
Before installation, wear an ESD-preventive wrist strap, and make sure that the wrist
strap has a good skin contact and is well grounded. 在以下安装交换机的过程中，操
作者需佩戴防静电腕带，请确保防静电腕带已经正确接地并与皮肤良好接触。
Mounting the switch to a rack 安装交换机到机柜
Attach the mounting brackets to the switch
Front mounting
前部安装
The mounting brackets can be attached to a switch for front or rear mounting. You
can choose a proper position according to the actual requirements. 用户可以根据安
装场景的需要，将挂耳安装在机箱侧面前部或者后部两种不同位置。
Needle-nose pliers ESD-preventive wrist strap
尖嘴钳 防静电腕带
Mounting bracket
and M4 screw
挂耳和M4螺钉
Rear mounting
后部安装
Install cage nuts
Mounting the switch to a workbench 安装交换机到工作台
1
Stick the rubber pads to the appropriate
positions on the switch bottom
粘贴脚垫到交换机底部
Connecting the grounding cable 连接保护地线
Rubber pads
脚垫贴
Properly connect the switch grounding cable because it is crucial to the lightning
protection and electromagnetic shield (EMS) of your switch.交换机地线的正确连接是
交换机防雷、防干扰的重要保障，请使用设备随机提供的保护地线正确接地。
1
2
Mount the switch to a rack
1U
2
Connect the OT terminal of the grounding
cable to the switch.
将保护地线一端的OT端子与交换机相连
3
Connect the grounding cable to the
grounding strip.
保护地线的另一端与接地排相连
