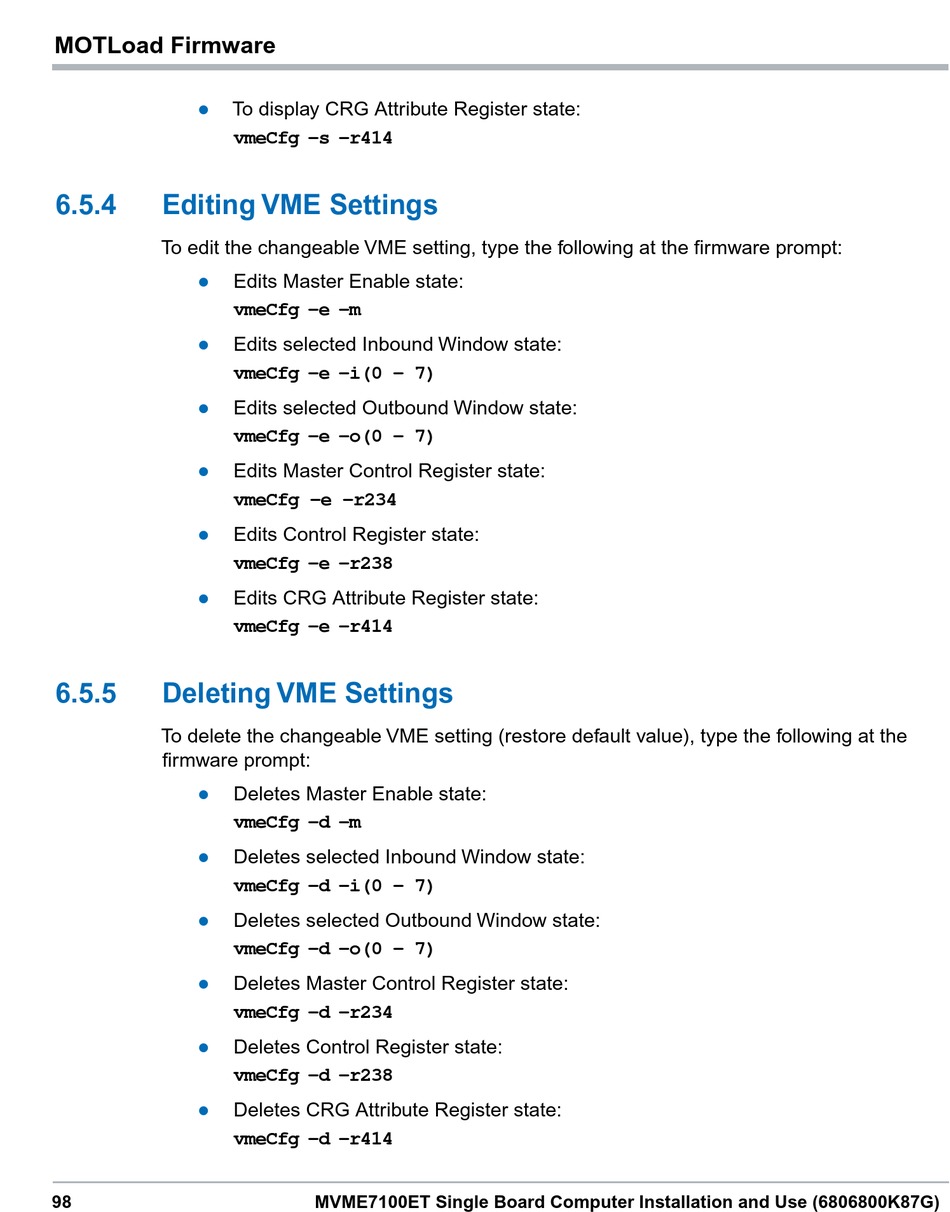

MOTLoad Firmware
 To display CRG Attribute Register state:
vmeCfg –s –r414
6.5.4

Editing VME Settings

To edit the changeable VME setting, type the following at the firmware prompt:

Edits Master Enable state:
vmeCfg –e –m
 Edits selected Inbound Window state:
vmeCfg –e –i(0 - 7)
 Edits selected Outbound Window state:
vmeCfg –e –o(0 - 7)
 Edits Master Control Register state:
vmeCfg –e –r234
 Edits Control Register state:
vmeCfg –e –r238
 Edits CRG Attribute Register state:
vmeCfg –e –r414
6.5.5

Deleting VME Settings

To delete the changeable VME setting (restore default value), type the following at the
firmware prompt:
 Deletes Master Enable state:
vmeCfg –d –m
 Deletes selected Inbound Window state:
vmeCfg –d –i(0 - 7)
 Deletes selected Outbound Window state:
vmeCfg –d –o(0 - 7)
 Deletes Master Control Register state:
vmeCfg –d –r234
 Deletes Control Register state:
vmeCfg –d –r238
 Deletes CRG Attribute Register state:
vmeCfg –d –r414
98 MVME7100ET Single Board Computer Installation and Use (6806800K87G)
