Transition Module
5.5

Rear Panel Connectors

The MVME721ET transition module provides these connectors. All connectors use
standard pin assignments in compliance with the VMEbus specifications.
Table 5-4
Connector
J1A, J1B, J1C, J1D
J2A
J2B
J10
J14
P2
PMC I/O (PIM) connector J10 routes only power and ground from VME P2 connector.
There are no host I/O signals on this connector. The MVME7100ET routes PMC I/O from
J14 of PMC Slot 1 to VME P2 rows A and C. The MVME721ET routes these signals (pin-
for-pin) from VME P2 to PMC I/O module connector J14.

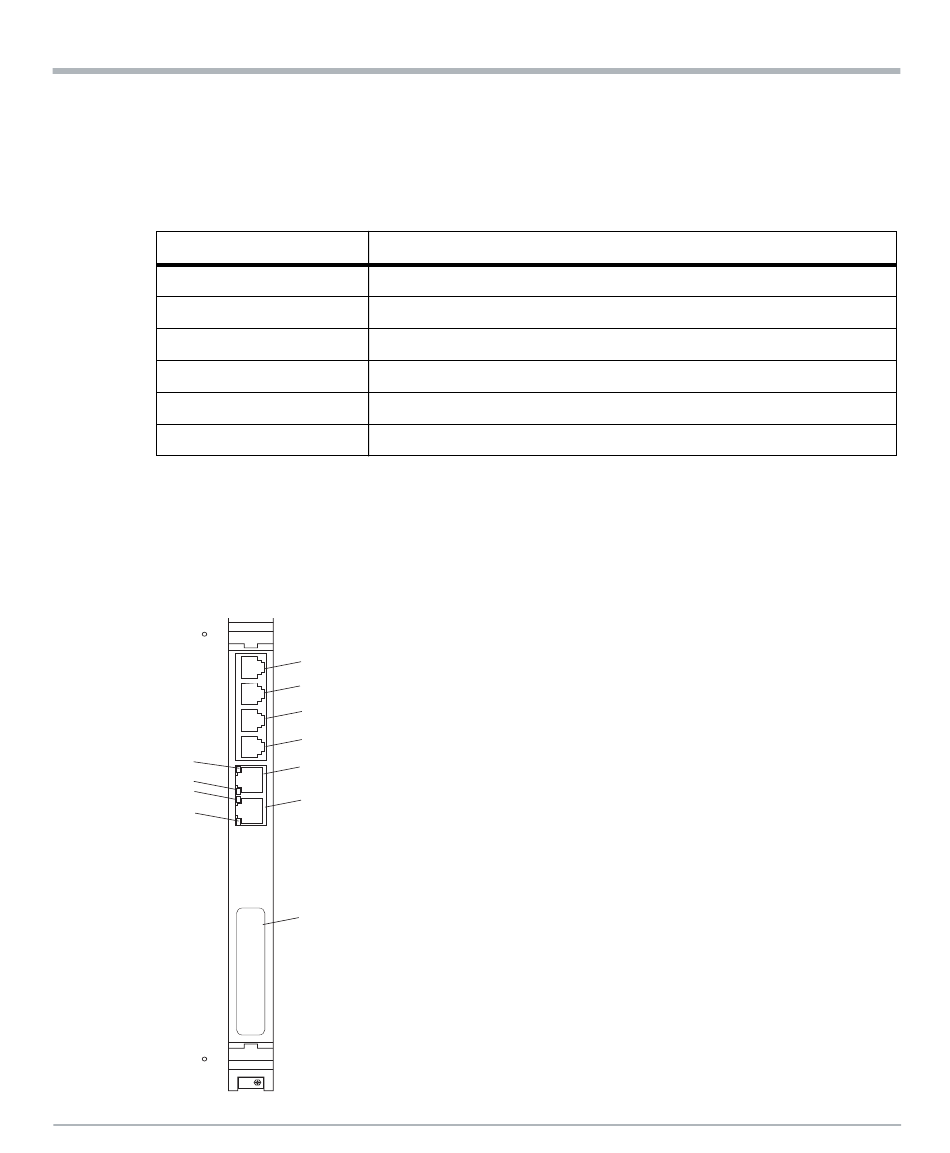

Figure 5-4 Rear Panel Connectors and LEDs

ACT
SPEED
ACT
SPEED
82
Transition Module Connectors
Function
COM port connectors
10/100/1000Mb/s Ethernet connector
10/100/1000Mb/s Ethernet connector
PIM power/ground
PIM I/O
VME backplane connector
COM2
COM3
COM4
COM5
G Enet 1
G Enet 2
PMC Site
MVME7100ET Single Board Computer Installation and Use (6806800K87G)
