Controls, LEDs, and Connectors
3.3

Front Panel

The following switch, LEDs, and connectors are available on the MVME7100ET front panel.
Refer to Figure 3-1 on page 47

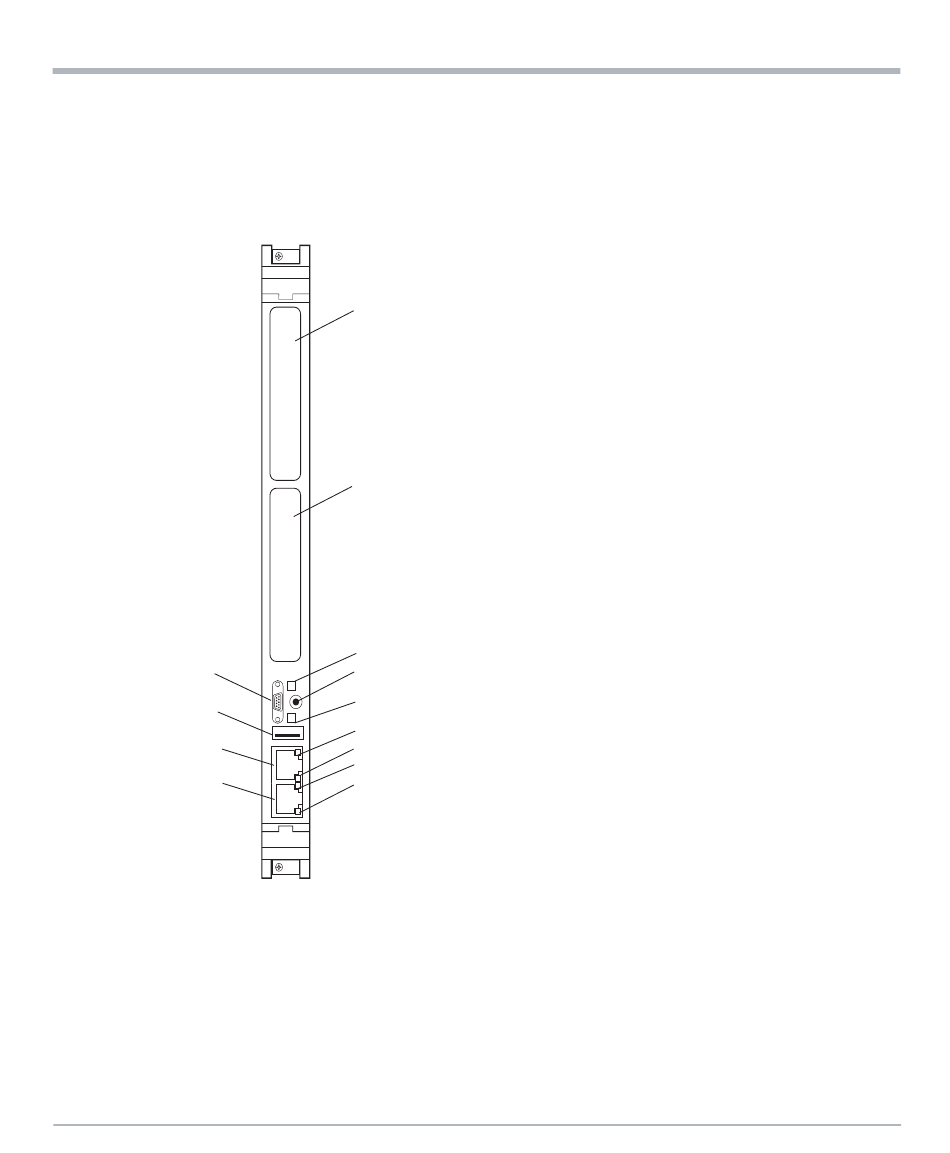

Figure 3-2 Front Panel LEDs, Connectors, Switch

COMM 1
USB
GENET 1
GENET 2
3.3.1

Reset/Abort Switch

The MVME7100ET has a single push button switch to provide both the abort and reset
functions. When the switch is depressed for less than 3 seconds, an abort interrupt is
generated to the MC8641D PIC. If the switch is held for more than 3 seconds, a board hard
reset is generated. If the MVME7100ET is the VMEbus system controller, a VME
SYSRESET is generated.
48
for the location of each.
PMC 2
PMC 1
USER 1
ABT/RST
FAIL
SPEED
ACT
SPEED
ACT
MVME7100ET Single Board Computer Installation and Use (6806800K87G)
Controls, LEDs, and Connectors
