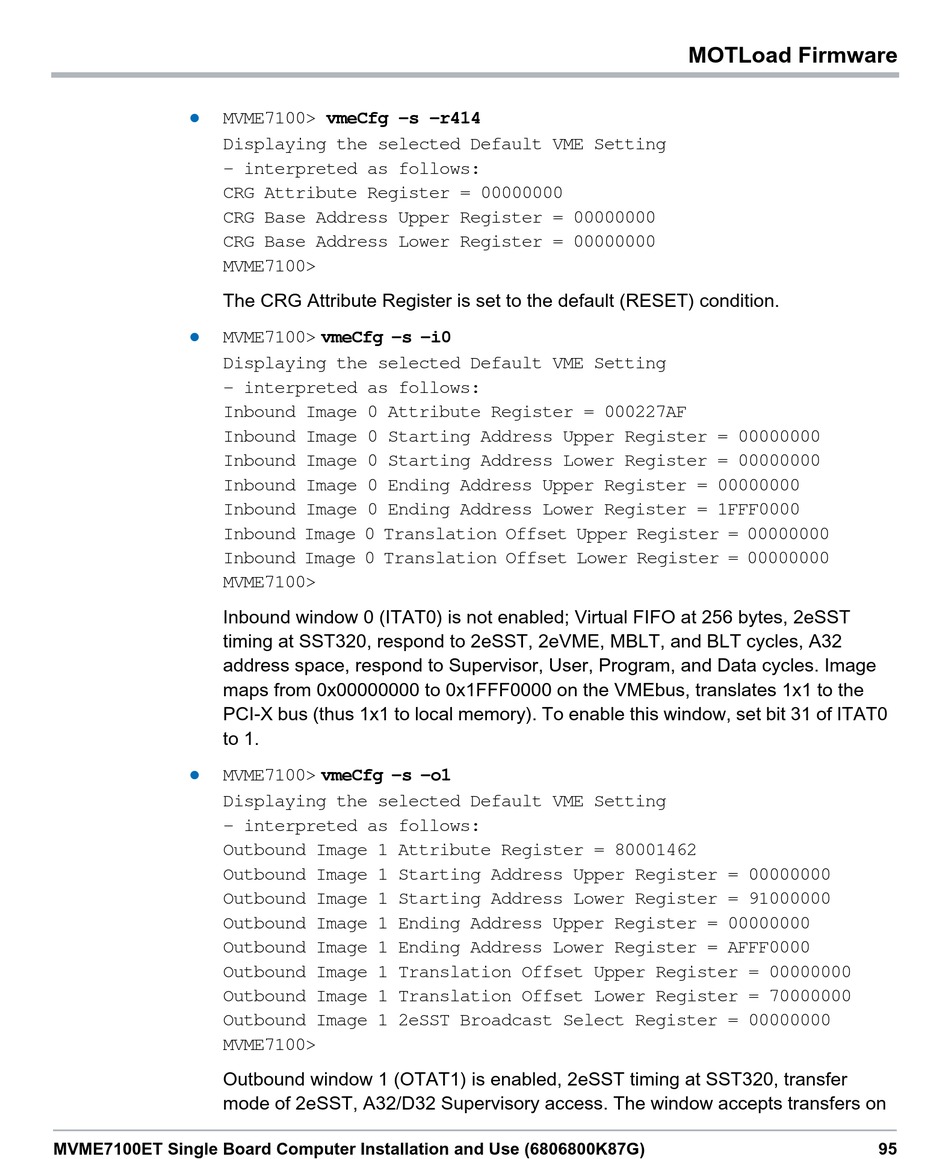

MVME7100> vmeCfg -s -r414
Displaying the selected Default VME Setting
- interpreted as follows:
CRG Attribute Register = 00000000
CRG Base Address Upper Register = 00000000
CRG Base Address Lower Register = 00000000
MVME7100>
The CRG Attribute Register is set to the default (RESET) condition.

MVME7100> vmeCfg –s –i0
Displaying the selected Default VME Setting
- interpreted as follows:
Inbound Image 0 Attribute Register = 000227AF
Inbound Image 0 Starting Address Upper Register = 00000000
Inbound Image 0 Starting Address Lower Register = 00000000
Inbound Image 0 Ending Address Upper Register = 00000000
Inbound Image 0 Ending Address Lower Register = 1FFF0000
Inbound Image 0 Translation Offset Upper Register = 00000000
Inbound Image 0 Translation Offset Lower Register = 00000000
MVME7100>
Inbound window 0 (ITAT0) is not enabled; Virtual FIFO at 256 bytes, 2eSST
timing at SST320, respond to 2eSST, 2eVME, MBLT, and BLT cycles, A32
address space, respond to Supervisor, User, Program, and Data cycles. Image
maps from 0x00000000 to 0x1FFF0000 on the VMEbus, translates 1x1 to the
PCI-X bus (thus 1x1 to local memory). To enable this window, set bit 31 of ITAT0
to 1.

MVME7100> vmeCfg –s –o1
Displaying the selected Default VME Setting
- interpreted as follows:
Outbound Image 1 Attribute Register = 80001462
Outbound Image 1 Starting Address Upper Register = 00000000
Outbound Image 1 Starting Address Lower Register = 91000000
Outbound Image 1 Ending Address Upper Register = 00000000
Outbound Image 1 Ending Address Lower Register = AFFF0000
Outbound Image 1 Translation Offset Upper Register = 00000000
Outbound Image 1 Translation Offset Lower Register = 70000000
Outbound Image 1 2eSST Broadcast Select Register = 00000000
MVME7100>
Outbound window 1 (OTAT1) is enabled, 2eSST timing at SST320, transfer
mode of 2eSST, A32/D32 Supervisory access. The window accepts transfers on
