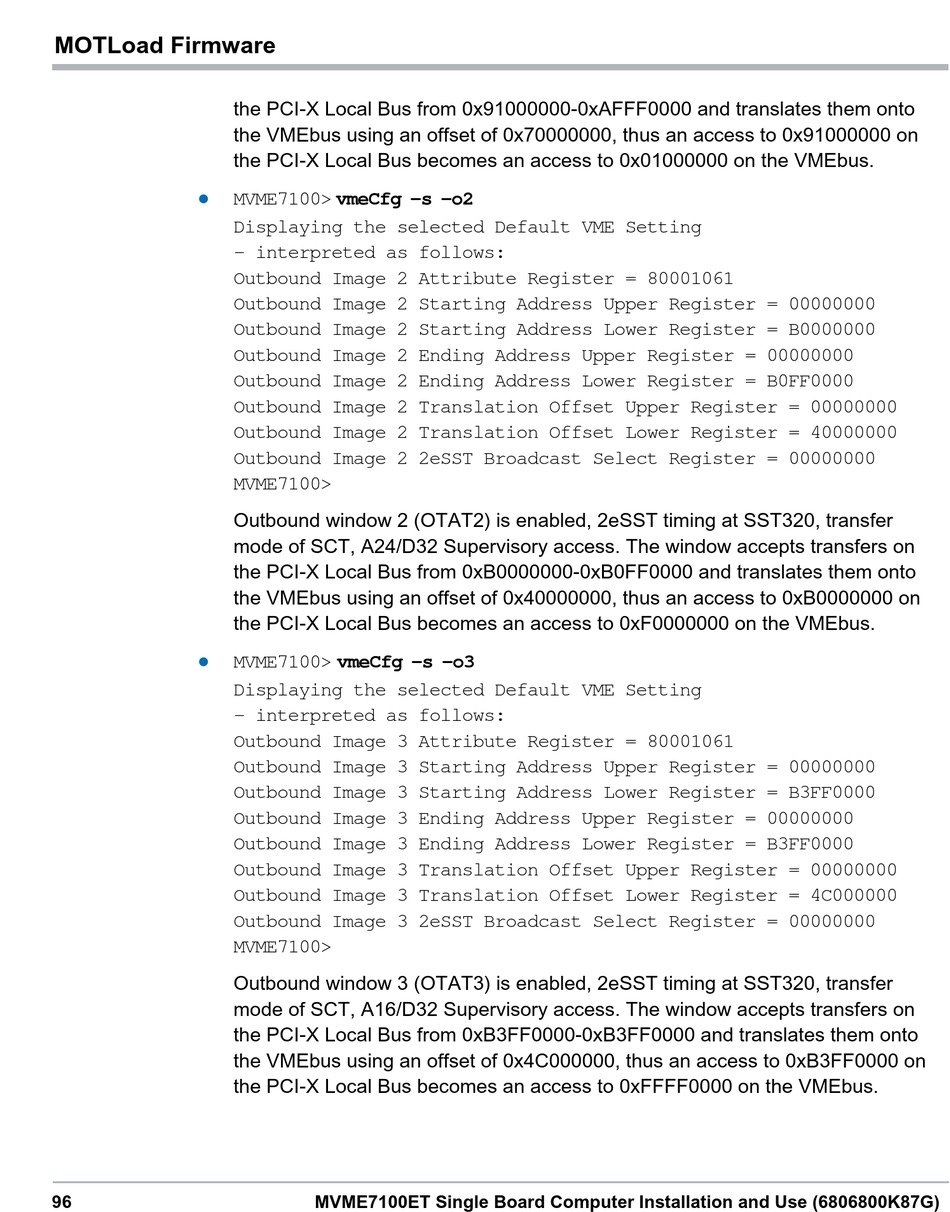

MOTLoad Firmware
the PCI-X Local Bus from 0x91000000-0xAFFF0000 and translates them onto
the VMEbus using an offset of 0x70000000, thus an access to 0x91000000 on
the PCI-X Local Bus becomes an access to 0x01000000 on the VMEbus.

MVME7100> vmeCfg –s –o2
Displaying the selected Default VME Setting
- interpreted as follows:
Outbound Image 2 Attribute Register = 80001061
Outbound Image 2 Starting Address Upper Register = 00000000
Outbound Image 2 Starting Address Lower Register = B0000000
Outbound Image 2 Ending Address Upper Register = 00000000
Outbound Image 2 Ending Address Lower Register = B0FF0000
Outbound Image 2 Translation Offset Upper Register = 00000000
Outbound Image 2 Translation Offset Lower Register = 40000000
Outbound Image 2 2eSST Broadcast Select Register = 00000000
MVME7100>
Outbound window 2 (OTAT2) is enabled, 2eSST timing at SST320, transfer
mode of SCT, A24/D32 Supervisory access. The window accepts transfers on
the PCI-X Local Bus from 0xB0000000-0xB0FF0000 and translates them onto
the VMEbus using an offset of 0x40000000, thus an access to 0xB0000000 on
the PCI-X Local Bus becomes an access to 0xF0000000 on the VMEbus.

MVME7100> vmeCfg –s –o3
Displaying the selected Default VME Setting
- interpreted as follows:
Outbound Image 3 Attribute Register = 80001061
Outbound Image 3 Starting Address Upper Register = 00000000
Outbound Image 3 Starting Address Lower Register = B3FF0000
Outbound Image 3 Ending Address Upper Register = 00000000
Outbound Image 3 Ending Address Lower Register = B3FF0000
Outbound Image 3 Translation Offset Upper Register = 00000000
Outbound Image 3 Translation Offset Lower Register = 4C000000
Outbound Image 3 2eSST Broadcast Select Register = 00000000
MVME7100>
Outbound window 3 (OTAT3) is enabled, 2eSST timing at SST320, transfer
mode of SCT, A16/D32 Supervisory access. The window accepts transfers on
the PCI-X Local Bus from 0xB3FF0000-0xB3FF0000 and translates them onto
the VMEbus using an offset of 0x4C000000, thus an access to 0xB3FF0000 on
the PCI-X Local Bus becomes an access to 0xFFFF0000 on the VMEbus.
