5. Reinstall the MVME7100ET assembly in its proper card slot. Be sure the module is well
seated in the backplane connectors. Do not damage or bend connector pins.
6. If the PMC module was installed in a non-hot swap chassis, replace the chassis or
system cover(s), reconnect the system to the AC or DC power source and turn the
equipment power on.

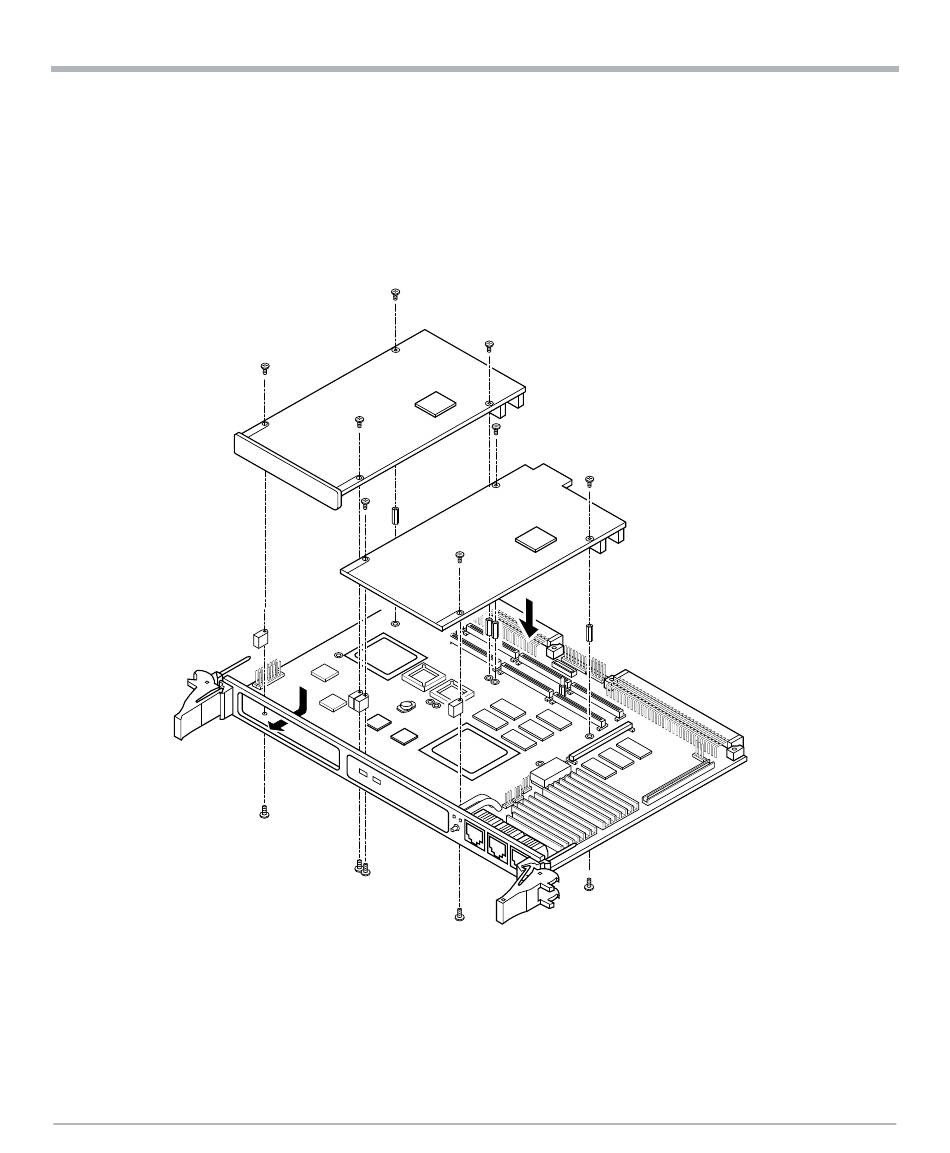

Figure 2-6 Typical Placement of a PMC Module on a VME Module

2.5.3

XMCspan

The XMCspan is a carrier module that provides PCI Express expansion capability to the
MVME7100ET. Refer to the XMCspan Installation and Use manual, for details about the
XMCspan and the installation procedure.
