XTC601 User's Manual
4.1

Unpacking

If sold separately (not part of a sampling system), the XTC601 will be supplied in a
custom box which should be retained for future use (such as service return). The box
contains a small carton containing 2 lid keys and 1 hex key (for the grub screw). Any
cable glands supplied will also be in the smaller carton. The manual will be loose in the
main box.
Contents:
• XTC601 Thermal Conductivity Analyzer
• XTC601 97400 user's manual
• Test result sheet
• Carton (containing: 2 x lid keys and 1 x hex key)
• Cable entry options (if ordered)
• Application software CD
4.2

System Components

The XTC601 Thermal Conductivity Analyzer benefits from a modular construction, with
the major parts of the analyzer shown below:
A
B
C
D
E
F
G
Michell Instruments
G
F
E
D

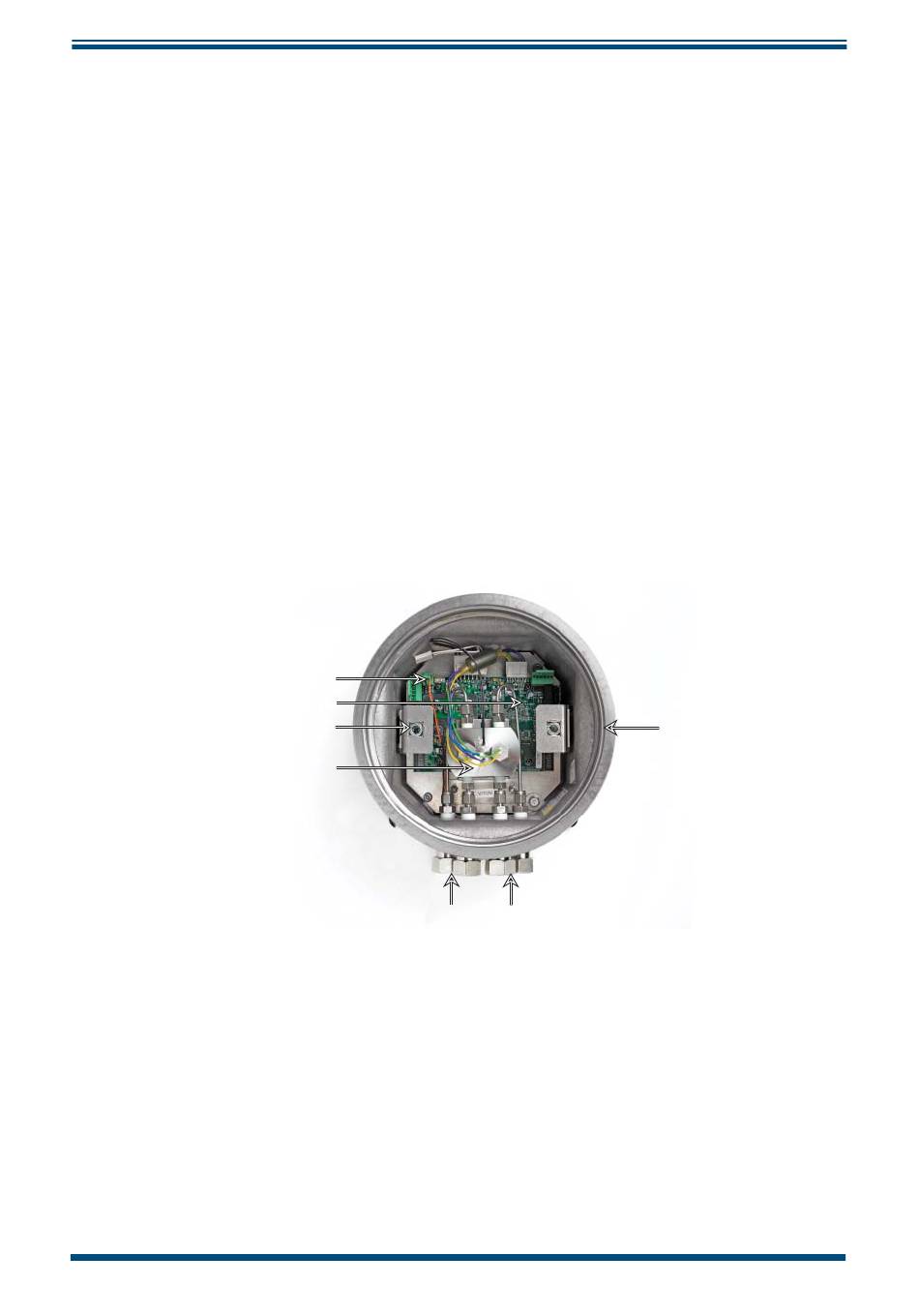

Figure 32 XTC601 Showing Major Components
Instrument case
Flowing reference gas inlet and outlet (if fitted)
Sample gas inlet and outlet
Measuring cell
Quick release mechanism for display PCB
Motherboard
Power supply (24 V DC) connector (PL9)
C B
INSTALLATION
A
31
