Front Pages (No Passcode Required)

The EX1 and GP1 versions of the XTC601 have 5 front pages that the user can display
without the need for a passcode. NOTE: These are for display of information only
and there is no way of adjusting any settings on these pages.
From the Main Page (Target Gas concentration) the rest of the front pages can be
accessed using the
() button the required amount of times or press the
2.5.1

Main Page

Main Page
Background Gas
Target Gas
Heating Symbol
Status Bar
Michell Instruments
) button. To return to the Main Page, either press the
Down (
Back. Gas: CH4
55.1
Cell T Not Stable

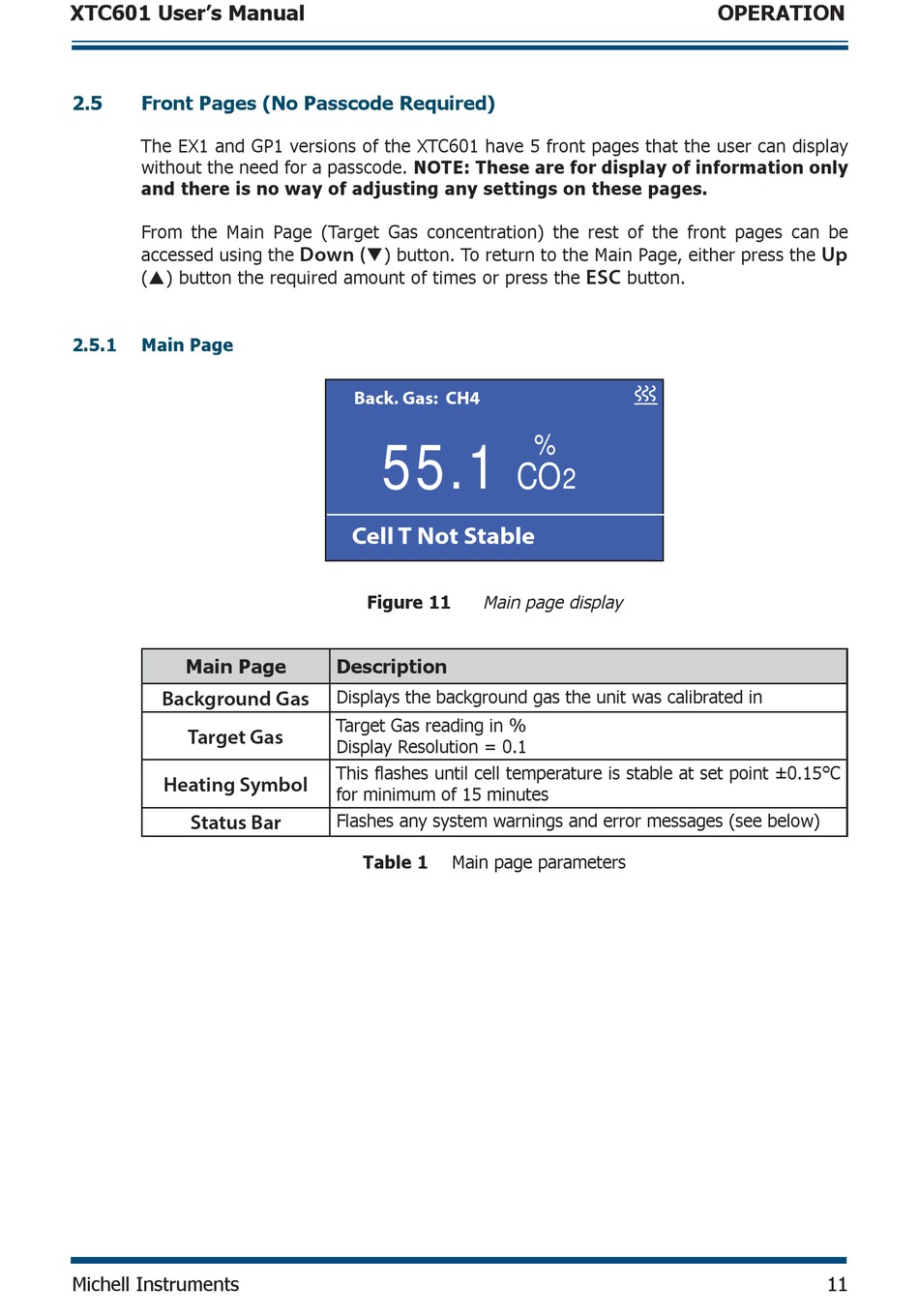

Figure 11
Description
Displays the background gas the unit was calibrated in
Target Gas reading in %
Display Resolution = 0.1
This flashes until cell temperature is stable at set point ±0.15°C
for minimum of 15 minutes
Flashes any system warnings and error messages (see below)
Table 1 Main page parameters
button.
ESC
%
CO
2
Main page display
