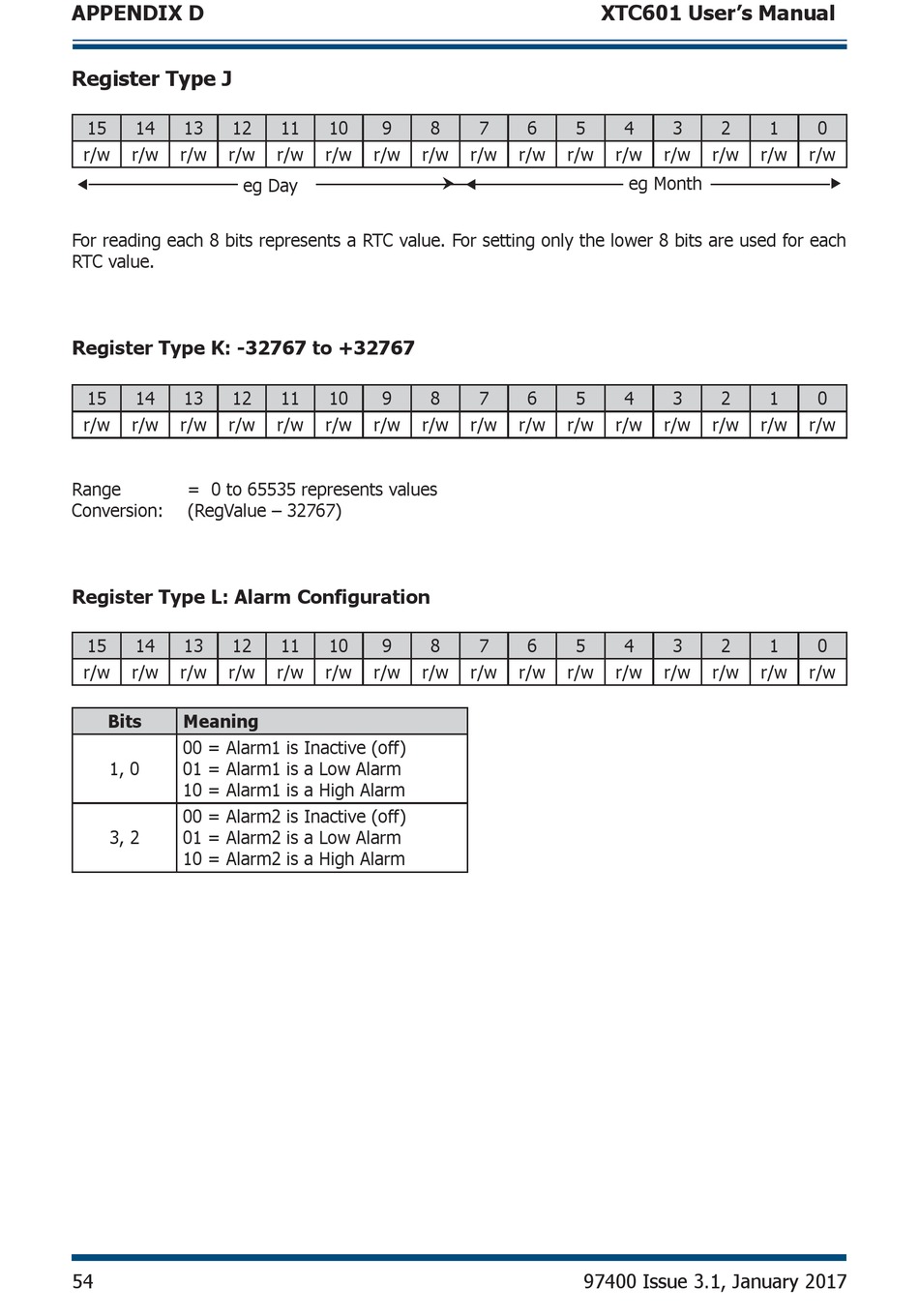

Michell Instruments XTC601 User Manual page 65

APPENDIX D
Register Type J
15 14 13 12
r/w r/w r/w r/w
eg Day
For reading each 8 bits represents a RTC value. For setting only the lower 8 bits are used for each
RTC value.
Register Type K: -32767 to +32767
15 14 13 12
r/w r/w r/w r/w
Range = 0 to 65535 represents values
Conversion: (RegValue – 32767)
Register Type L: Alarm Configuration
15 14 13 12
r/w r/w r/w r/w
Bits Meaning
00 = Alarm1 is Inactive (off)
1, 0 01 = Alarm1 is a Low Alarm
10 = Alarm1 is a High Alarm
00 = Alarm2 is Inactive (off)
3, 2 01 = Alarm2 is a Low Alarm
10 = Alarm2 is a High Alarm
54
11 10 9 8
r/w r/w r/w r/w

11 10 9 8
r/w r/w r/w r/w
11 10 9 8
r/w r/w r/w r/w
XTC601 User's Manual
7 6 5 4
r/w r/w r/w r/w
eg Month
7 6 5 4
r/w r/w r/w r/w
7 6 5 4
r/w r/w r/w r/w
97400 Issue 3.1, January 2017
3 2 1 0
r/w r/w r/w r/w

3 2 1 0
r/w r/w r/w r/w
3 2 1 0
r/w r/w r/w r/w
