OPERATION
2.4

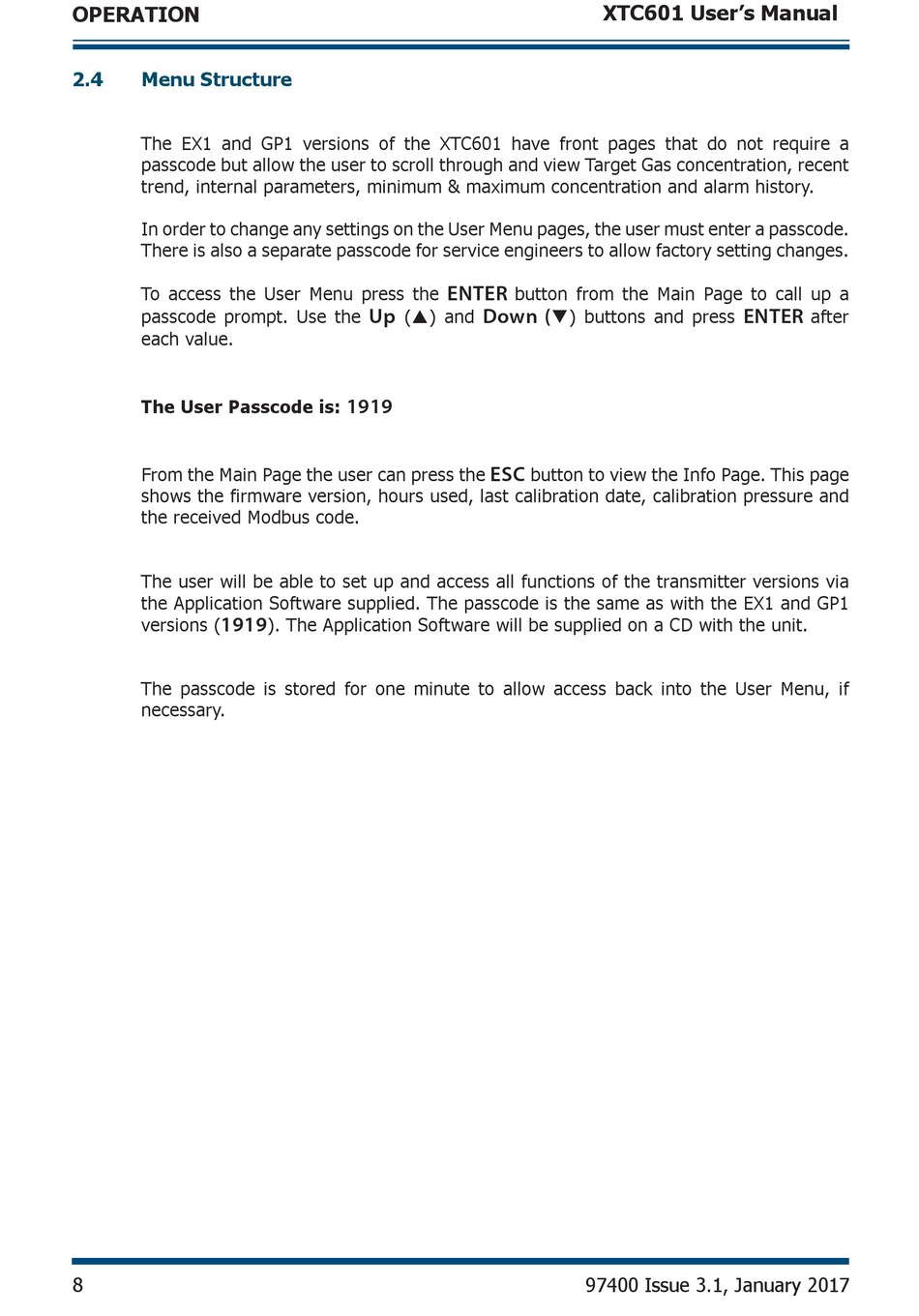

Menu Structure

The EX1 and GP1 versions of the XTC601 have front pages that do not require a
passcode but allow the user to scroll through and view Target Gas concentration, recent
trend, internal parameters, minimum & maximum concentration and alarm history.
In order to change any settings on the User Menu pages, the user must enter a passcode.
There is also a separate passcode for service engineers to allow factory setting changes.
To access the User Menu press the
passcode prompt. Use the
each value.
The User Passcode is:
From the Main Page the user can press the
shows the firmware version, hours used, last calibration date, calibration pressure and
the received Modbus code.
The user will be able to set up and access all functions of the transmitter versions via
the Application Software supplied. The passcode is the same as with the EX1 and GP1
versions (
1919
The passcode is stored for one minute to allow access back into the User Menu, if
necessary.
8
() and
Up
1919
). The Application Software will be supplied on a CD with the unit.
XTC601 User's Manual
button from the Main Page to call up a
ENTER
) buttons and press
Down (
button to view the Info Page. This page
ESC
97400 Issue 3.1, January 2017
after
ENTER
