XTC601 User's Manual
• Connect to the power and outputs (see Section 4.5).
• After making all necessary connections, reconnect the display / status pcb
via the ribbon/interconnecting cable & quick-connect fittings and replace
and screw down the lid until fully tight (at least 7 full turns).
• Use the hex key (supplied) to tighten the grub screw. NOTE: This is
necessary in order to adhere to the hazardous area certification
requirements.
• For operating instructions refer to Section 2.
4.4

Mechanical Installation

There are 3 cable entries on the bottom surface, towards the rear, that can be utilized
by the customer in a variety of manners. The following standard options are available:
Cable Gland, Conduit Entry, Blanking Plug or Light Guide.
Michell Instruments
WARNING: Prior to connecting power, ensure the unit is
correctly earthed via the earth point on the right hand side
WARNING: Unused cable entries must be appropriately
blanked to maintain the integrity of the Exd casing.
Inlet
Outlet

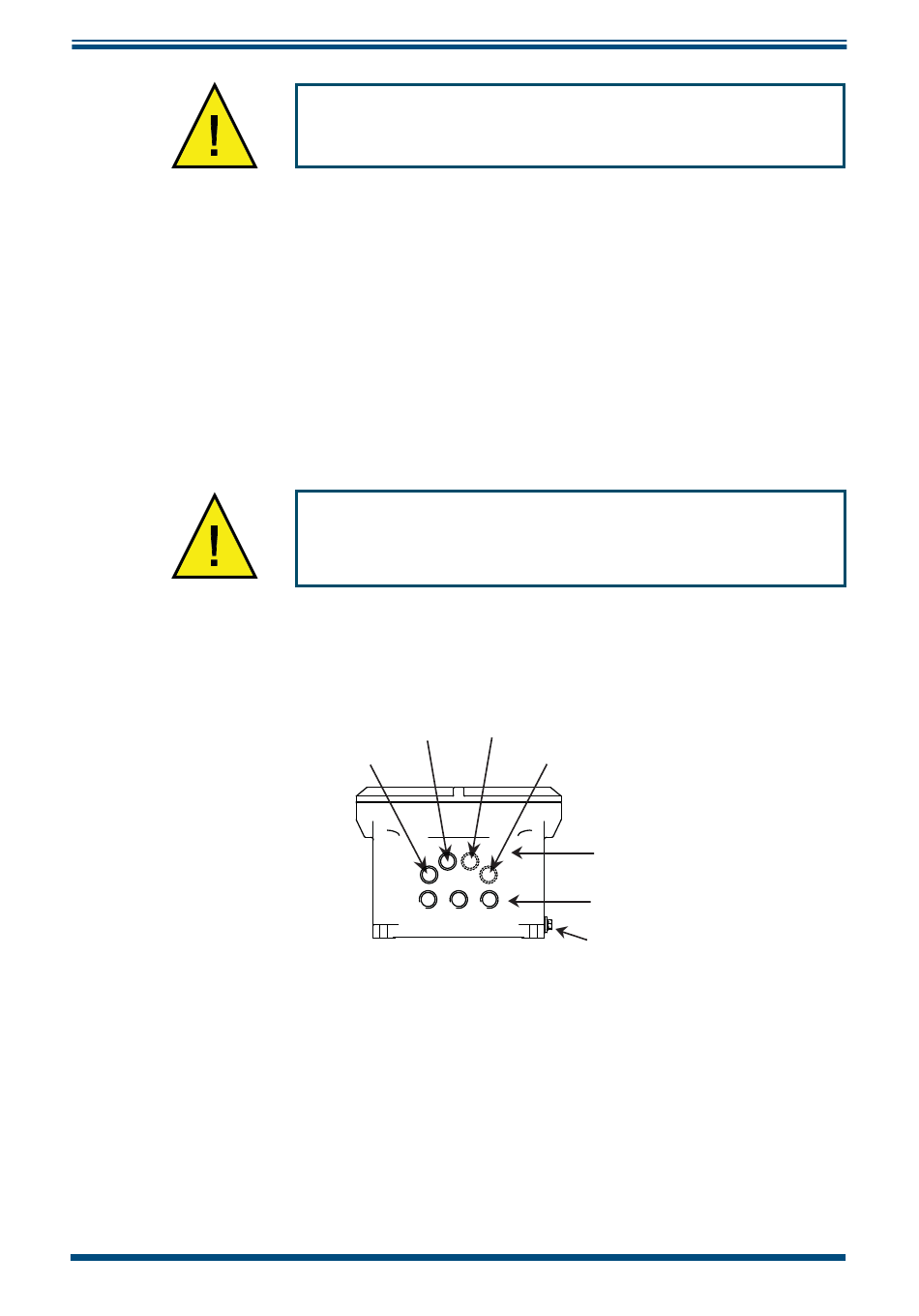

XTC601 Gas Connections and Cable Entries
Figure 34
of the case.
Inlet
Outlet
Gas
Connections
Cable
Entries
Earthing
Point
INSTALLATION
33
