Quick Menu; Main Menu - Danfoss VLT Micro Drive FC 51 Programming Manual

Programming
VLT

3.3 Quick Menu

The Quick Menu gives easy access to the most frequently
used parameters.
1. To enter the Quick Menu, press [Menu] key until
3 3
indicator in display is placed above Quick Menu.
2. ▲ ▼
Press [ ] [ ] to select either QM1 or QM2, then
press [OK].
▲ ▼
3.
Press [ ] [ ] to browse through the parameters
in the Quick Menu.
4. Press [OK] to select a parameter.
▲ ▼
5.
Press [ ] [ ] to change the value of a parameter
setting.
6. Press [OK] to accept the change.
7. To exit, press either [Back] twice to enter Status,
or press [Menu] once to enter Main Menu.

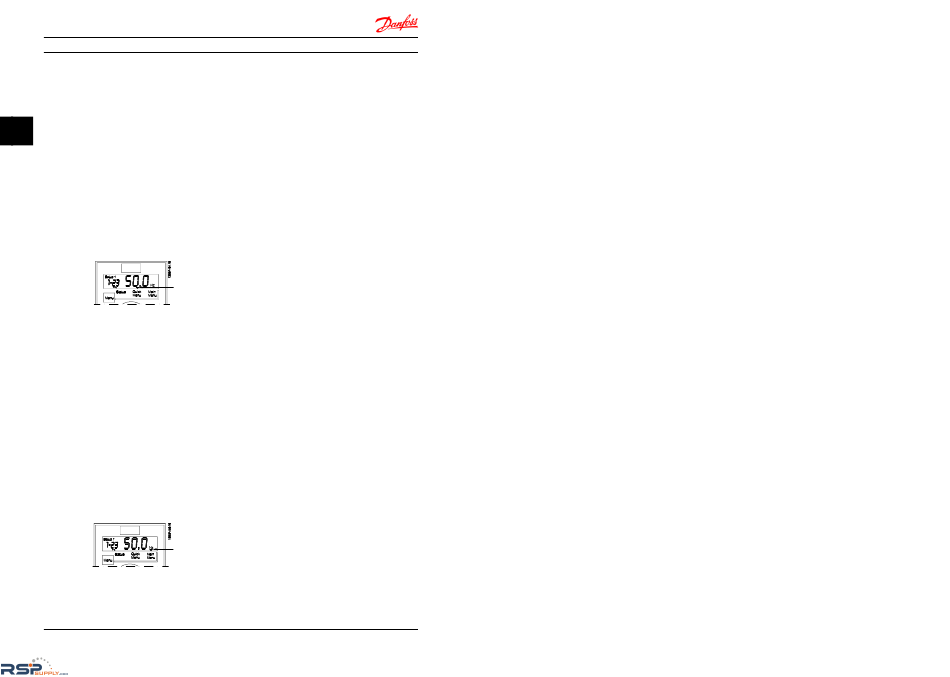

Illustration 3.9 Indicating Quick Menu Mode

3.4 Main Menu

The Main Menu gives access to all parameters.
1. To enter the Main Menu, press [Menu] key until
indicator in display is placed above Main Menu.
▲ ▼
2.
Press [ ] [ ] to browse through the parameter
groups.
3. Press [OK] to select a parameter group.
▲ ▼
4. Press [ ] [ ] to browse through the parameters
in the specific group.
5. Press [OK] to select the parameter.
6. ▲ ▼
Press [ ] [ ] to set/change the parameter value.
7. Press [OK] to accept the value.
8. To exit, press either [Back] twice to enter Quick
Menu, or press [Menu] once to enter Status.
Illustration 3.10 Indicating Main Menu Mode
10 MG02C602 - VLT
