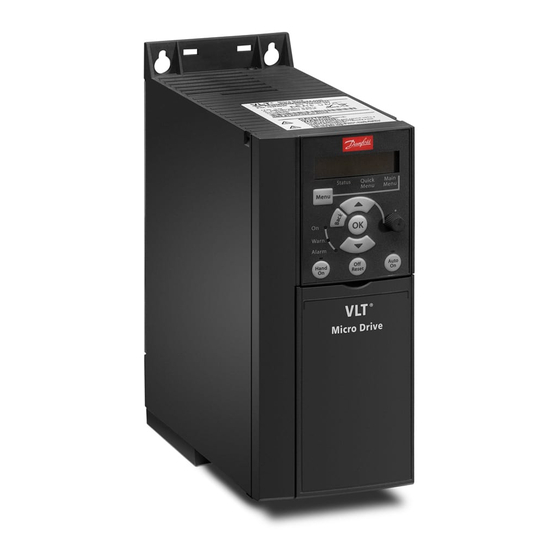

Danfoss VLT Micro FC 51 Quick Manual
Hide thumbs Also See for VLT Micro FC 51:

Advertisement

Quick Links

Quick Guide for VLT Micro FC 51
1 Quick Guide
1.1 Safety
1.1.1 Warnings
High Voltage Warning:
The voltage of the frequency converter is dangerous whenever it is connected to mains. Incorrect in-
stallation of the motor or frequency converter may cause damage to the equipment, serious injury or
death. Consequently, it is essential to comply with the instructions in this manual as well as local and
national rules and safety regulations.
Warning:
Touching the electrical parts may be fatal - even after the equipment has been disconnected from mains.
Also make sure that other voltage inputs have been disconnected (linkage of DC intermediate circuit).
Be aware that there may be high voltage on the DC link even when the LEDs are turned off.
Before touching any potentially live parts of the frequency converter, wait at least 4 minutes for all M1,
M2 and M3 sizes.
Wait at least 15 minutes for all M4 and M5 sizes.
Leakage Current:
The earth leakage current from the frequency converter exceeds 3.5 mA. According to IEC 61800-5-1 a
reinforced Protective Earth connection must be ensured by means of a min. 10mm² Cu or an addtional
PE wire - with the same cable cross section as the Mains wiring - must be terminated separately.
Residual Current Device:
This product can cause a DC current in the protective conductor. Where a residual current device (RCD)
is used for extra protection, only an RCD of Type B (time delayed) shall be used on the supply side of
this product. See also Danfoss Application Note on RCD, MN.90.GX.YY.
Protective earthing of the frequency converter and the use of RCDs must always follow national and
local regulations.
Motor Thermal Protection:
Motor overload protection is possible by setting Parameter 1-90 Motor thermal protection to the value
ETR trip. For the North American market: Implemented ETR function provide class 20 motor overload
protection, in accordance with NEC.
Installation in high altitudes:
For altitudes above 2 km, please contact Danfoss regarding PELV.
1.1.2 Safety Instructions
Make sure the frequency converter is properly connected to earth.
Do not remove mains connections, motor connections or other power connections while the frequency con-
verter is connected to power.
Protect users against supply voltage.
Protect the motor against overloading according to national and local regulations.
The earth leakage current exceeds 3.5 mA.
The [OFF] key is not a safety switch. It does not disconnect the frequency converter from mains.
®
MG.02.B5.02 - VLT
is a registered Danfoss trademark
1 Quick Guide
1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VLT Micro FC 51 and is the answer not in the manual?

Questions and answers

Summary of Contents for Danfoss VLT Micro FC 51

  • Page 1 RCD of Type B (time delayed) shall be used on the supply side of this product. See also Danfoss Application Note on RCD, MN.90.GX.YY. Protective earthing of the frequency converter and the use of RCDs must always follow national and local regulations.
  • Page 2: Available Literature

    Installation on isolated mains source, i.e. IT mains. Max. supply voltage allowed when connected to mains: 440 V. As an option, Danfoss offers recommended line filters for improved harmonics performance. 1.2.4 Avoid unintended Start While the frequency converter is connected to mains, the motor can be started/stopped using digital commands, bus commands, references or via the Local Control Panel.
  • Page 3: Disposal Instruction

    Quick Guide for VLT Micro FC 51 1 Quick Guide 1.2.5 Disposal Instruction Equipment containing electrical components must not be disposed of together with do- mestic waste. It must be separately collected with electrical and electronic waste according to local and currently valid legislation.
  • Page 4: Electrical Installation In General

    (symmetrical), 480 V maximum. Non UL compliance: If UL/cUL is not to be complied with, Danfoss recommends using the fuses mentioned in the below table, which will ensure compliance with EN50178/IEC61800-5-1: In case of malfunction, not following the fuse recommendation may result in damage to the frequency converter.
  • Page 5: Control Terminals

    Quick Guide for VLT Micro FC 51 1 Quick Guide 1.3.6 Connecting to Mains and Motor The frequency converter is designed to operate all standard three-phased asynchronous motors. The frequency converter is designed to accept mains/motor cables with a maximum cross-section of 4 mm...
  • Page 6: Power Circuit - Overview

    1 Quick Guide Quick Guide for VLT Micro FC 51 The illustration below shows all control terminals of the frequency converter. Applying Start (term. 18) and an analog reference (term. 53 or 60) make the frequency converter run. Illustration 1.5: Overview of control terminals in PNP-configuration and factory setting.
  • Page 7: Load Sharing/Brake

    1.3.9 Load sharing/Brake Use 6.3 mm insulated Faston Plugs designed for high voltage for DC (Load Sharing and brake). Contact Danfoss or see instruction no. MI.50.Nx.02 for load sharing and instruction no. MI.90.Fx.02 for brake. Load sharing: Connect terminals -UDC and +UDC/+BR.
  • Page 8: Programming With Lcp

    The frequency converter can also be programmed from a PC via RS485 com-port by installing the MCT-10 Set-up Software. This software can either be ordered using code number 130B1000 or downloaded from the Danfoss Web site: www.danfoss.com/BusinessAreas/DrivesSolutions/softwaredownload Illustration 1.7: Description of LCP buttons and display...
  • Page 9 Quick Guide for VLT Micro FC 51 1 Quick Guide Operation Keys: A yellow light above the operation keys indicates the active key. [Hand on]: Starts the motor and enables control of the frequency converter via the LCP. [Off/Reset]: Stops the motor (off). If in alarm mode the alarm will be reset.
  • Page 10: Parameter Overview

    1 Quick Guide Quick Guide for VLT Micro FC 51 1.5 Parameter Overview ® MG.02.B5.02 - VLT is a registered Danfoss trademark...
  • Page 11 Quick Guide for VLT Micro FC 51 1 Quick Guide ® MG.02.B5.02 - VLT is a registered Danfoss trademark...
  • Page 12 1 Quick Guide Quick Guide for VLT Micro FC 51 ® MG.02.B5.02 - VLT is a registered Danfoss trademark...
  • Page 13 Quick Guide for VLT Micro FC 51 1 Quick Guide ® MG.02.B5.02 - VLT is a registered Danfoss trademark...
  • Page 14: Troubleshooting

    Err. A wrong password was entered Occurs when using a wrong password for changing a password- protected parameter. These faults may be caused by mains distortions. Installing Danfoss Line Filter may rectify this problem. Table 1.6: Warnings and AlarmsCode list ®...
  • Page 15: Specifications

    Quick Guide for VLT Micro FC 51 1 Quick Guide 1.7 Specifications 1.7.1 Mains Supply 1 x 200 - 240 VAC Normal overload 150% for 1 minute Frequency converter PK18 PK37 PK75 P1K5 P2K2 Typical Shaft Output [kW] 0.18 0.37 0.75...
  • Page 16 1 Quick Guide Quick Guide for VLT Micro FC 51 1.7.3 Mains Supply 3 x 380 - 480 VAC Normal overload 150% for 1 minute Frequency converter PK37 PK75 P1K5 P2K2 P3K0 P4K0 Typical Shaft Output [kW] 0.37 0.75 Typical Shaft Output [HP]...
  • Page 17 Quick Guide for VLT Micro FC 51 1 Quick Guide Protection and Features: • Electronic thermal motor protection against overload. • Temperature monitoring of the heatsink ensures that the frequency converter trips in case of overtemperature • The frequency converter is protected against short-circuits between motor terminals U, V, W.
  • Page 18 1 Quick Guide Quick Guide for VLT Micro FC 51 Current mode (Terminal 53 and 60) Switch S200=ON(I) Voltage level 0 -10 V Input resistance, R approx. 10 kΩ Max. voltage 20 V Current level 0/4 to 20 mA (scaleable) Input resistance, R approx.
  • Page 19: Special Conditions

    The cooling capability of air is decreased at low air pressure. For altitudes above 2000 m, please contact Danfoss regarding PELV. Below 1000 m altitude no de-rating is necessary but above 1000 m the ambient temperature or the maximum output current should be decreased.
  • Page 20: Options For Vlt Micro Drive

    Type 1 kit for M4 frame 132B0121 Type 1 kit for M5 frame 132B0122 De-coupling plate kit for M4 and M5 frames Danfoss Line Filters and brake resistors are available upon request. ® MG.02.B5.02 - VLT is a registered Danfoss trademark...
