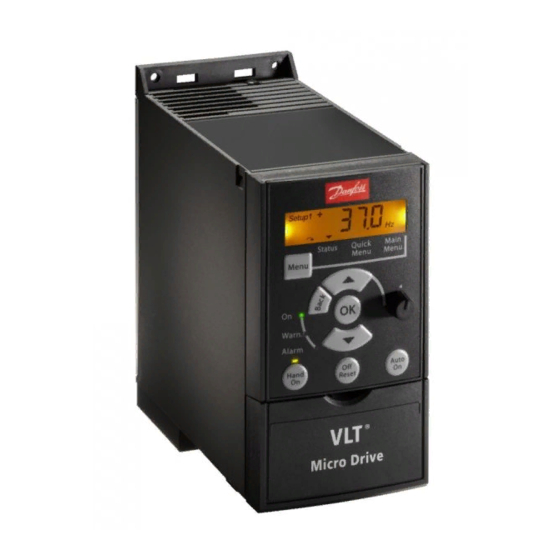

Danfoss VLT Micro Drive FC 51 Programming Manual
  1. Manuals
  2. Brands
  3. Danfoss Manuals
  4. DC Drives
  5. VLT Micro Drive FC 51 Series
  6. Programming manual
Danfoss VLT Micro Drive FC 51 Programming Manual

Danfoss VLT Micro Drive FC 51 Programming Manual

Hide thumbs Also See for VLT Micro Drive FC 51:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Programming Manual, Quick Manual

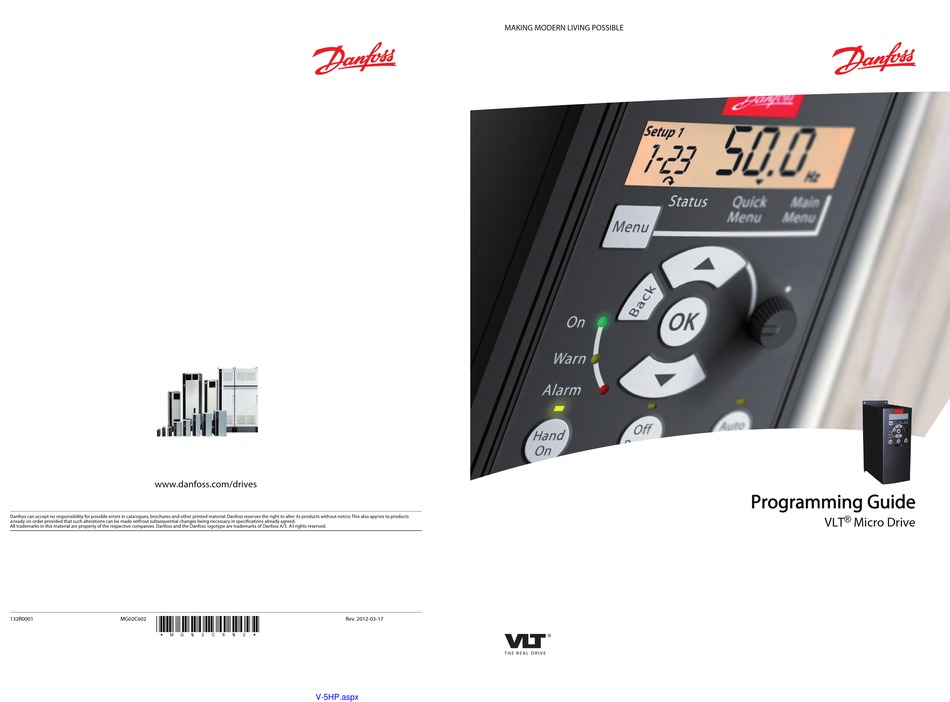

MAKING MODERN LIVING POSSIBLE
www.danfoss.com/drives
P P rogramming Guide
VLT Micro Drive
132R0001
MG02C602
Rev. 2012-03-17
*MG02C602*
RSPSupply - 1-888-532-2706 - www.RSPSupply.com
http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VLT Micro Drive FC 51 and is the answer not in the manual?

Questions and answers

Related Manuals for Danfoss VLT Micro Drive FC 51

Summary of Contents for Danfoss VLT Micro Drive FC 51

  • Page 1 MAKING MODERN LIVING POSSIBLE www.danfoss.com/drives P P rogramming Guide VLT Micro Drive 132R0001 MG02C602 Rev. 2012-03-17 *MG02C602* RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...

  • Page 2: Table Of Contents

    4.10.1 13-** Programming Features 4.11 Parameter Group 14: Special Functions 4.12 Parameter Group 15: Drive Information 4.12.2 15-4* Drive Identification 4.13 Parameter Group 16: Data Readouts ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 3 5.1.14 13-** Smart Logic 5.1.15 14-** Special Functions 5.1.16 15-** Drive Information 5.1.17 16-** Data Readouts 6 Troubleshooting 6.1.1 Alarm, Warning and Extended Status Word Index ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...

  • Page 4: Safety

    15-43 Software Version. signaling (analog and digital signals and serial communi- cation. Table 1.1 NOTE 1.1.4 General Warning Before using Fire Mode, contact Danfoss WARNING • Make sure the frequency converter is properly ELECTRICAL SHOCK HAZARD connected to earth. Touching the electrical parts may be fatal - even after the •...

  • Page 5: It Mains

    Thermal Protection to the value ETR trip. For the North American market: ETR functions provide class 20 motor overload protection, in accordance with NEC. WARNING Installation in high altitudes: For altitudes above 2 km, please contact Danfoss regarding PELV. 1.1.5 IT Mains CAUTION IT Mains Installation on isolated mains source, i.e.

  • Page 6: Introduction

    See Table 2.1 for details, how to read the type code string. Illustration 2.1 This Example Shows the Nameplate Sticker ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...

  • Page 7: Type Code

    X: No adaptation Software release 24-27 SXXX: Latest release - std. software Table 2.1 Type Code Description ® *See VLT Micro Drive Design Guide, MG02K ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 8 Rated Inverter Output Current Revolutions Per Minute Second Size Related Temperature Time s,hr Torque limit Voltage Table 2.2 Abbreviation and Standards Table ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...

  • Page 9: Programming

    RS-485 com-port by installing the MCT 10 Set-up indicates the edit set-up. Software. This software can either be ordered using code number 130B1000 or downloaded from the Danfoss Web site: www.danfoss.com/BusinessAreas/DrivesSolutions/software- download Illustration 3.3 Indicating Set-up Refer to the manual for Motion Control Tools MG10R.

  • Page 10: Status Menu

    Press [▲] [▼] to change value. Press [OK] to shift between digits quickly. To exit 'Adjust' mode, press [OK] more than 1 s again with changes saving or press [Back] without changes saving. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...

  • Page 11: Quick Menu

    Press [OK] to accept the value. To exit, press either [Back] twice to enter Quick Menu, or press [Menu] once to enter Status. Illustration 3.10 Indicating Main Menu Mode ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...

  • Page 12: Parameter Descriptions

    If changing between set-ups that are not linked, the change will not happen before motor is coasted. NOTE The motor is only considered stopped when it is coasted. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 13 Readout Min Scale will be shown at 0 Hz. The readout can be shown in the LCP display when in Status Mode or it can be read in 16-09 Custom Readout ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 14 Copy from Set-up 2 to edit set-up chosen in Set-up 2 0-11 Edit Set-up. Copy from Copy from Factory Settings to edit set-up Factory Set- chosen in 0-11 Edit set-up. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...

  • Page 15: Parameter Group 1: Load/Motor

    In Hand Mode the drive always runs in Open [20] 30.00 kW/40.00 HP Open Loop configuration regardless of setting in 1-00 Loop Configuration Mode. Local potentiometer (if present) or Arrow up/down determines output ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 16 100 % [ 0-300%] Enter a percentage of rated magnetizing current. If setting is too low, motor shaft torque may be reduced. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 17 Illustration 4.3. Simplify U/f characteristics by merging 2 or more points (voltages and frequencies), respectively, are set equal. Changeover Illustration 4.4 ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 18 1-82 Min. Speed For Function at Stop [Hz] Range: Function: 0.0 Hz [0.0-20.0 Hz] Set the speed at which to activate 1-80 Function at Stop. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 19 Using ETR (Electronic Terminal Relay) the motor temperature is calculated based on Digital Connect thermistor to digital input terminal 29. frequency, speed and time. Danfoss input 29 While this input functions as thermistor input, recommends using The ETR function, if a it will not respond to the function chosen in thermistor is not present.

  • Page 20: Parameter Group 2: Brakes

    If DC-brake is activated as start function, DC-brake time is braking to avoid overheating of motor. defined by start delay time. 100% equals motor current set in 1-24 Motor Current. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 21 [0.00-100 A] Select motor current at which mechanical brake releases. CAUTION If start delay time has passed, and motor current is below Release brake current, frequency converter trips. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...

  • Page 22: Parameter Group 3: Reference/Ramps

    Removing the jog signal makes the motor run according to the selected configu- ration. [0.0-400.0 Select speed to function as jog speed. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 23 Use signals from local bus as reference, Reference see parameter group 8-9* Bus Feedback. [21] LCP Potenti- Use signals from LCP potentiometer as ometer reference, parameter group 6-8* LCP Potentiometer. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 24 Constant acceleration/deceleration. Choose a ramp-up time ensuring S-ramp Smooth jerk compensated acceleration/ that torque limit is not exceeded, deceleration. see 4-16 Torque Limit in Motor Mode. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 25 3-81 Quick Stop Ramp Time Range: Function: Size related [0.05-3600.00 s] A linear ramp applicable when Q-stop is activated. See parameter group 5-1* Digital Inputs, option [4]. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...

  • Page 26: Parameter Group 4: Limits/Warnings

    NOTE As the maximum output frequency is an absolute value, it cannot be deviated from. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 27 Output Relay can be configured to indicate this warning. LCP warning light does not light when this parameter's set limit is reached. 0.00 [0.00-26.00 Set value for low current limit. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 28 (eg. small motors running pure U/f mode), but as there is a risk of overheating the motor, Danfoss strongly recommends that the function is On. A missing motor phase causes the frequency converter to trip and report an alarm.

  • Page 29: Parameter Group 5: Digital In/Out

    (only 0 = stop, 1 = start reversing. terminal 33) [12] Enable start Use if motor shaft must rotate clockwise at forward start. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 30 See parameter group 5-1* Digital Inputs for [21] Thermal Warning Thermal warning is present when choices. temperature exceeds limit in motor, frequency converter, brake resistor or thermistor. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 31 Terminal 33 Low Ref./Feedb. Value and 5-58 Terminal 33 High [62] Comparator 2 See parameter group 13-1* Ref./Feedb. Value. Comparators. If comparator 2 is evaluated as TRUE, output goes high. Otherwise, it is low. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 32 5-58 Terminal 33 High Ref./Feedb. Value Range: Function: 50.000 [-4999-4999] Set reference/feedback value corresponding to high pulse frequency value set in 5-56 Terminal 33 High Frequency. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...

  • Page 33: Parameter Group 6: Analog In/Out

    1 (terminal 53). The value must be set to min. 1 V in order to activate the Live Zero Timeout function in 6-01 Live Zero Timeout Function. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 34 50.00 [-4999-4999] Enter analog input scaling value. value improves dampening but also increases time delay through the filter. 0.01 s [0.01-10.00 s] Enter time constant. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 35 Hz) is desired at 25% of maximum output value, program 25%. Scaling values up to 100% can never be higher than corresponding setting in 6-94 Terminal 42 Output Min. Scale. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 36 (100%), calculate percentage value as follows: × 100 % desired maximum current i.e. mA = × 100 = 200 % ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...

  • Page 37: Parameter Group 7: Controllers

    7-32 Process PI Start Speed Range: Function: 0.0 Hz [0.0-200.0 Hz] Until the set motor speed has been reached the frequency converter operates in Open Loop mode. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...

  • Page 38: Parameter Group 8: Communication

    LCP or digital Range: Function: input. 0.010 s [0.001-0.500 s] Specify minimum delay time between receiving a request and transmitting a response. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 39 Activation via serial communication port or a Select the parameters to be digital input. assigned to PCD's of telegrams. The number of available PCDs depends on ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...

  • Page 40: Bus Communication Diagnostics

    Port. 8-80 Bus Message Count Range: Function: 0 N/A [0-0 N/A] This parameter shows the number of valid telegrams detected on the bus. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...

  • Page 41: Parameter Group 13: Smart Logic

    Use value of DI 18 in logic rule. [34] DigitalInput_19 Use value of DI 19 in logic rule. [35] DigitalInput_27 Use value of DI 27 in logic rule. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 42 Disabled Comparator is disabled. rule. Reference Resulting remote reference (not local) as a [30] SL Timeout0 Use result of timer 0 in logic rule. percentage. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 43 See parameter group 5-4* Relays [8] for description. Out of Current See parameter group 5-4* Relays [12] Range for description. BelowILow See parameter group 5-4* Relays [13] for description. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 44 Evaluates expression [13-40] OR [13-42]. And not Evaluates expression [13-40] AND NOT [13-42]. Or not Evaluates expression [13-40] OR NOT [13-42]. Not and Evaluates expression NOT [13-40] and [13-42]. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 45 [38] SetDO42High Set Digital output 42 high. [39] SetRelayHigh Set Relay high. [60] ResetCounterA Resets counter A to 0. [61] ResetCounterB Resets counter B to 0. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...

  • Page 46: Parameter Group 14: Special Functions

    Initialization Resets all parameters to default settings, except for 15-03 Power Ups, 15-04 Over Temps and 15-05 Over Volts. Frequency converter resets during next power-up. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 47 [40-75%] Enter the minimum allowable magnetization for AEO. Selecting a low value reduces energy loss in the motor, but may also reduce resistance to sudden load changes. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...

  • Page 48: Parameter Group 15: Drive Information

    Counter is not reset. Reset Counter Counter is reset. 15-07 Reset Running Hours Counter Option: Function: Do Not Reset Counter is not reset. Reset Counter Counter is reset. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...

  • Page 49: Parameter Group 16: Data Readouts

    16-12 Motor Voltage Range: Function: 16-50 External Reference [0.0-999.9 V] View motor phase voltage. Range: Function: 0.0% [-200.0-200.0%] View sum of all external references in percent. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 50 View relay setting. 16-72 Counter A Range: Function: [-32768-32767] View present value of Counter A. 16-73 Counter B Range: Function: [-32768-32767] View present value of Counter B. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...

  • Page 51: Parameter Lists

    [9] Copy from Factory setup 1-25 Motor Nominal Speed [1] DC hold 3-03 Maximum Reference 0-6* Password 100-9999 rpm * Motortype dep. -4999-4999 *50.00 Table 5.1 ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 52 -4999-4999 *50.000 3-52 Ramp 2 Ramp down Time [0] No function 6-** Analog In/Out 0.05-3600 s *3.00 s (10.00 s M4 and M5 only Table 5.2 ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 53 [11] [1611] Power [hp] 8-83 Slave Error Count 6-90 Terminal 42 Mode [2] ControlWord only [12] [1612] Motor Voltage 0-0 N/A *0 N/A *[0] 0-20 mA Table 5.3 ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 54 13-11 Comparator Operator [61] ResetCounterB 15-4* Drive Identification 16-8* Fieldbus/FC Port [0] Less Than 15-40 FC Type 16-86 FC Port REF 1 0x8000-0x7FFFF Table 5.4 ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...

  • Page 55: Conversion Index

    Description Type Integer 8 Int8 Integer 16 Int16 Integer 32 Int32 Unsigned 8 Uint8 Unsigned 16 Uint16 Unsigned 32 Uint32 Visible string VisibleString Table 5.7 ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...

  • Page 56: Operation/Display

    1 set-up FALSE Uint8 0-60 Main Menu Password 1 set-up TRUE Uint16 Access to Main/Quick menu w/o 0-61 Password 1 set-up TRUE Uint8 Table 5.8 ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...

  • Page 57: Load/Motor

    All set-ups TRUE Uint16 1-90 Motor Thermal Protection [0] No protection All set-ups TRUE Uint8 1-93 Thermistor Resource [0] None All set-ups FALSE Uint8 Table 5.9 ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...

  • Page 58: Brakes

    Ramp 2 Ramp down Time All set-ups TRUE Uint32 3-80 Jog Ramp Time All set-ups TRUE Uint32 3-81 Quick Stop Ramp Time 1 set-up TRUE Uint32 Table 5.11 ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...

  • Page 59: Limits/Warnings

    All set-ups TRUE Uint16 5-57 Terminal 33 Low Ref./Feedb. Value All set-ups TRUE Int32 5-58 Terminal 33 High Ref./Feedb. Value All set-ups TRUE Int32 Table 5.13 ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...

  • Page 60: Analog In/Out

    9999 s All set-ups TRUE Uint32 7-38 Process PI Feed Forward Factor All set-ups TRUE Uint16 7-39 On Reference Bandwidth All set-ups TRUE Uint8 Table 5.15 ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...

  • Page 61: Comm. And Options

    1 set-up TRUE Uint8 13-51 SL Controller Event [0] False 1 set-up TRUE Uint8 13-52 SL Controller Action [0] Disabled 1 set-up TRUE Uint8 Table 5.17 ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...

  • Page 62: Special Functions

    Frequency Converter Ordering 15-46 1 set-up FALSE VisibleString 15-48 LCP Id No 1 set-up FALSE VisibleString Frequency Converter Serial 15-51 Number 1 set-up FALSE VisibleString Table 5.19 ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...

  • Page 63: Data Readouts

    Int16 16-90 Alarm Word 1 set-up TRUE Uint32 16-92 Warning Word 1 set-up TRUE Uint32 16-94 Ext. Status Word 1 set-up TRUE Uint32 Table 5.20 ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...

  • Page 64: Troubleshooting

    Power board over temp Motor phase U missing 4-58 Motor phase V missing 4-58 Motor phase W missing 4-58 Internal fault Earth fault 2 Control Voltage Fault ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 65 See also 16-90 Alarm Word, 16-92 Warning Word and 16-94 Ext. Status Word. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...

  • Page 66: Alarm, Warning And Extended Status Word

    The fault may be caused by mains distortions. Installing Troubleshooting: Check the supply voltage and supply Danfoss Line Filter may rectify this problem. currents to the frequency converter. The fault may be caused by mains distortions. Installing Danfoss Line Filter may rectify this problem. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
  • Page 67 Turn off the frequency converter and check if the Timeout Time could possibly be increased. motor shaft can be turned and if the motor size ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 68 Check for loose or missing wiring circuit occurs, the brake function is disabled and the It may be necessary to contact the local Danfoss supplier warning appears. The frequency converter is still or service department. Note the code number for further operational but without the brake function.
  • Page 69 Parameter can only be changed when the motor is stopped. Err. A wrong password was entered, occurs when using a wrong password for changing a password- protected parameter. ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...

  • Page 70: Index

    Hand Mode..............34, 11, 14, 30, 56 Ramp1 Indicator Lights..................9 Ramp-down Time................23 Ramp-up Time................... 23 Isolated Mains Source................4 Rated Magnetizing Current.............. 15 IT Mains....................... 4 Readout Mode..................9 ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
  • Page 71 Symbols...................... 7 Thermal Load.................. 15, 48 Thermistor Thermistor................18, 66, 50 Resource....................56 Trip Reset....................45 Troubleshooting................... 63 Type Code String..................5 Unit....................... 8 Value......................8 ® MG02C602 - VLT is a registered Danfoss trademark RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12769-Danfoss-132F0026-VFD-Micro-Drive-440V-5HP.aspx...
