Parameter Descriptions ®
VLT Micro Drive FC 51 Programming Guide
4.4.4 3-4* Ramp 1
A linear ramp is characterized by ramping up at a constant
speed until the desired motor speed has been reached.
Some overshoot may be experienced when reaching
speed, which may cause speed jerks for a short while
before stabilizing.
An S-ramp accelerates more smoothly thus compensating
for jerks when the speed is reached.
See Illustration 4.6 for a comparison of the two ramp types.

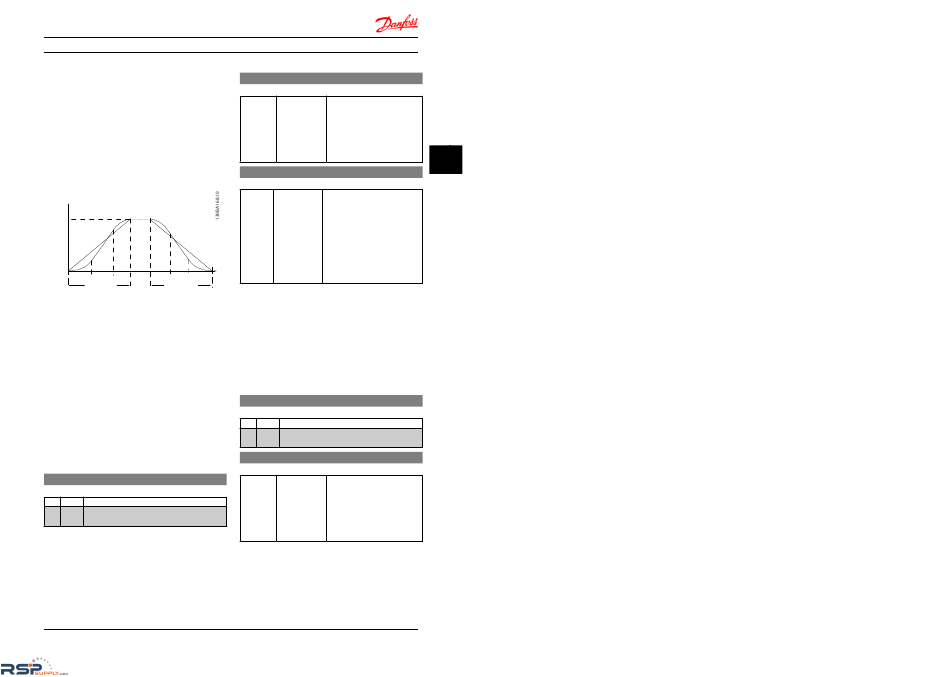

Speed
Ramp (X) S-Ramp
Ramp (X) S-Ramp
Ratio at Dec.End
Ratio at Accel.End
Ramp (X)
Ramp (X) Linear
S-Ramp
S-Ramp
Ratio at
Jerk compensated
Ratio at
Dec.End
Accel.End
Ramp (X)
Ramp (X)
Up Time
Down Time
Illustration 4.6
Ramp Times
Ramp up: Acceleration time from 0 to nominal motor
frequency (1-23 Motor Frequency).
Deceleration time from nominal motor frequency (1-23
Motor Frequency) to 0.
Limitation
Too short ramp up time can result in Torque limit warning
(W12) and/or DC over voltage warning (W7). Ramping is
stopped when the frequency converter has reached Torque
limit motor mode (4-16 Torque Limit in Motor Mode).
Too short ramp down time can result in Torque limit
warning (W12) and/or DC over voltage warning (W7).
Ramping is stopped when the frequency converter reaches
the Torque limit generator mode (4-17 Torque Limit in
Generator Mode) and/or the internal DC over voltage limit.
3-40 Ramp1 Type
Option: Function:
[0] * Linear Constant acceleration/deceleration.
[2] S-ramp Smooth jerk compensated acceleration/
deceleration.
®
